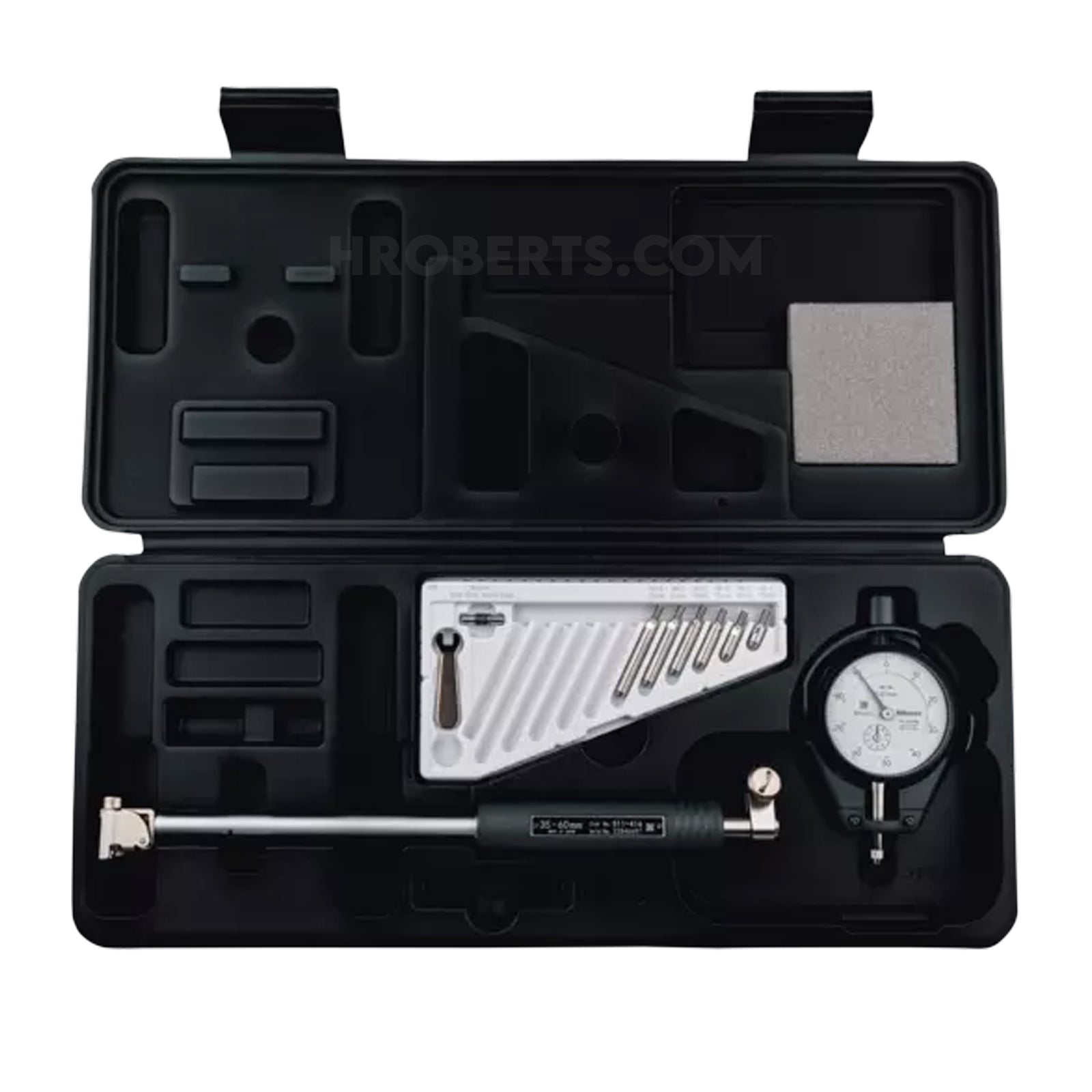

Mitutoyo 511-426-20 Blind Hole Bore Gauge, Range 35-60mm, Graduation 0.01mm, Probe Depth 150mm
SKU:Code: 511-426-20
Sale
Sold out
Regular price
£377.25
Save: 25%
Sold out
Sale price
£377.25
Regular price
£503.00
Excl. VAT
Flat-bottomed head design enables measurement right down to the bottom of blind holes or bores.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Small Hole Bore Gauges
- range 35-60mm
- display type Non-Digital
- graduations 0.01mm
- accuracy 5 μm
- measuring force 4 N or less
- measuring units Metric
- probe depth 150mm
- repeatability 2 μm
- dial indicator 2046AB
- anvil 6
- brand Mitutoyo
description
description
Flat-bottomed head design enables measurement right down to the bottom of blind holes or bores. Carbide-tipped contact point for durability. Extension rods (optional) can be attached for measuring deep holes. Wide measuring range with sub-anvils. An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
