Mitutoyo

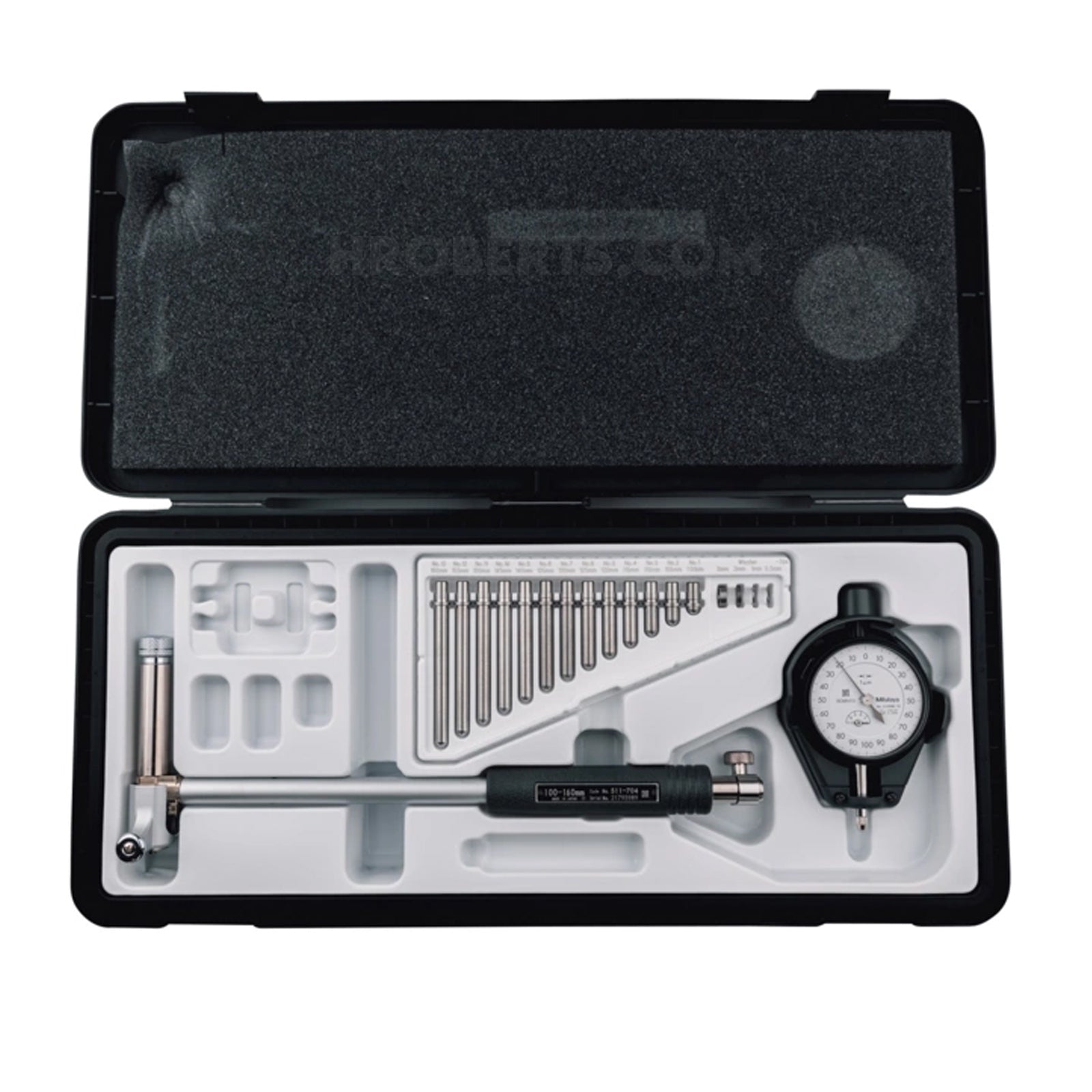

511-724-20 Bore Gauge, Range 100-160mm, Graduation 0.001mm, Probe Depth 150mm

Code: 511-724-20

Sale Sold out £391.50
Save: 25% Sold out £391.50 £522.00
Excl. VAT

Request a Quote

Add to Compare

A cylinder bore gauge is a precision measuring instrument used to measure the inner diameter or bore of a cylindrical hole, typically in an engine cylinder or other machinery where precise measurements of internal diameters are critical.

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Cylinder Bore Gauges
  • range 100-160mm
  • display type Non-Digital
  • graduations 0.001mm
  • measuring force 5 N or less
  • measuring units Metric
  • probe depth 150mm
  • dial indicator 2109AB-10
  • anvil 13
description

Now offers a longer plunger stroke while maintaining original accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the influence of heat from the operator's hand by 50% by increasing the grip size
and making the grip hollow-structured, thereby retaining high-accuracy measurement. Interchangeable washers 0.5 mm thick are supplied as standard accessories to enable setting in small steps. Optional extension rods can be attached for measuring deep holes
An optional inside-length standard, such as a setting ring or Inside Micro Checker is required for accurately setting the gauge before measurement.
