Mitutoyo

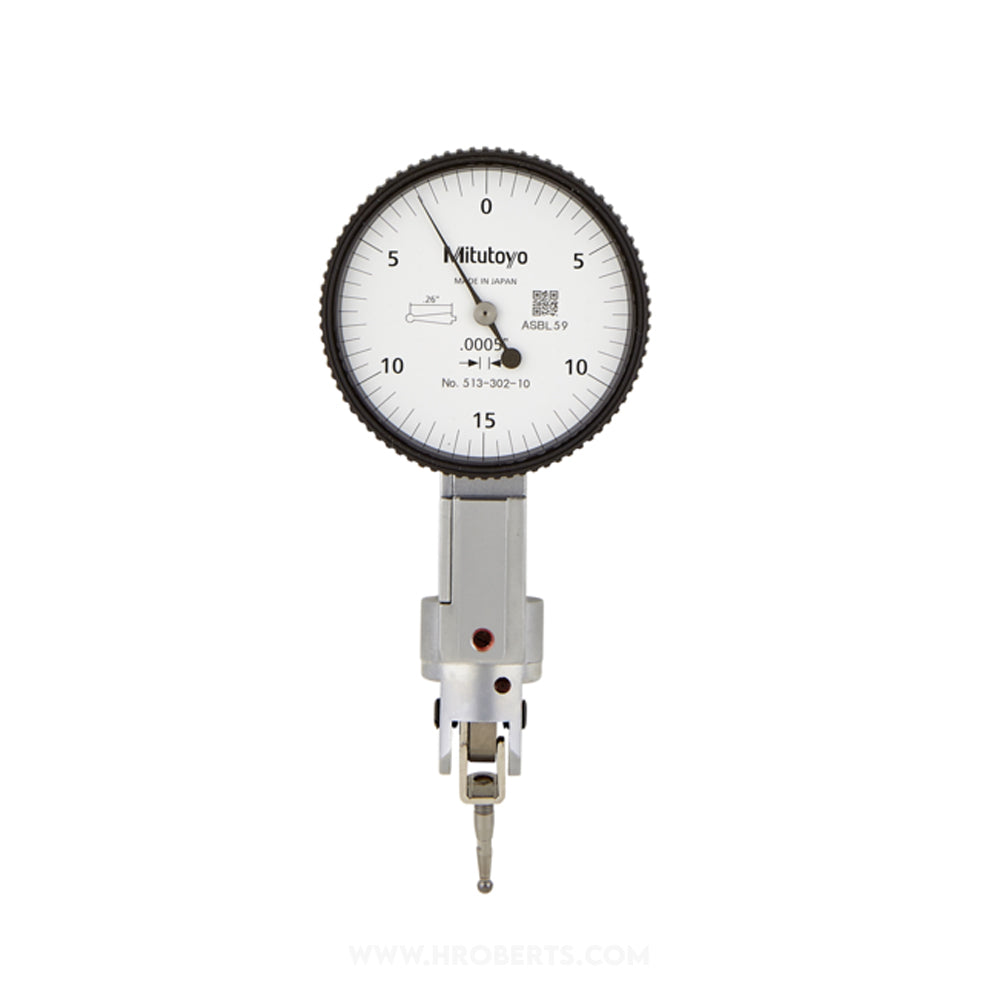

513-302-10T Lever Dial Indicator Universal Type, Graduation 0.0005", Range 0.03", Scale 0-15-0, Stylus Length 6.5mm, Bezel Diameter 40mm

SKU:Code: 513-302-10T

Sale Sold out Regular price £319.50
Save: 25% Sold out Sale price £319.50 Regular price £426.00
Excl. VAT
Full Set: Supplied with box, 902805 3/8", 902802 0.157" dia stem, 102824 1mm, 102825 2mm, 102826 3mm dia stylus, 900322 swivel clamp, Spanner 102037 and 900306 holding bar
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Horizontal Type
  • range 0.030"
  • display type Non-Digital
  • graduations 0.0005"
  • bezel dia 40mm
  • measuring force 0.3 N or Less
  • measuring units Imperial
  • scale 0-15-0
  • contact point thread M1.4x0.30
  • repeatability limit ±0.0003"
description

Universal application to all directions. (Not only the direction of the contact point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.)
