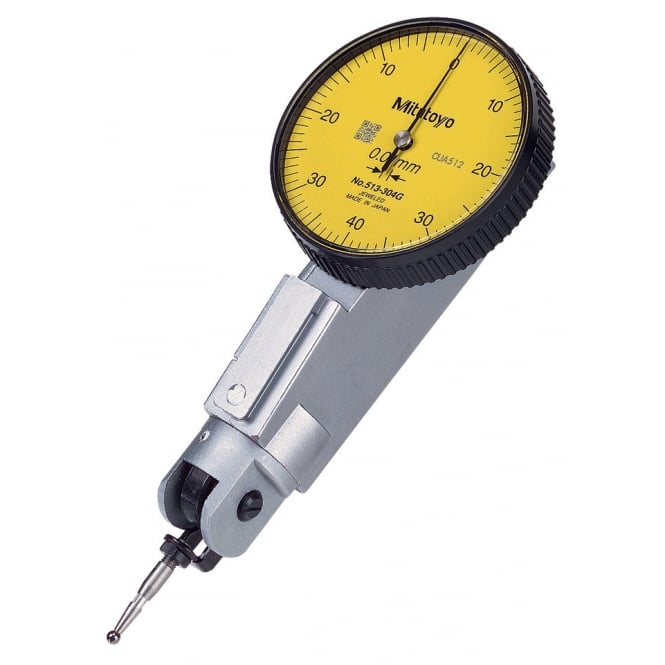

513-304GT Lever Dial Indicator Universal Type, Graduation 0.01mm, Range 0.8mm, Scale 0-40-0, Stylus Length 6.5mm, Bezel Diameter 40mm

SKU:Code: 513-304GT

This item is no longer available or has been discontinued.

Full Set: Supplied with box, 902804 8mm, 902802 4mm dia stem, 102824 1mm, 102825 2mm, 102826 3mm dia stylus, 900321 swivel clamp, Spanner 102037 and 900209 holding bar
View full details
  • type Horizontal Type
  • range 0.8mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 40mm
  • measuring force 0.3 N or Less
  • measuring units Metric
  • scale 0-40-0
  • contact point thread M1.4x0.30
  • repeatability limit 3 µm

Universal application to all directions. (Not only the direction of the contact point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.)
