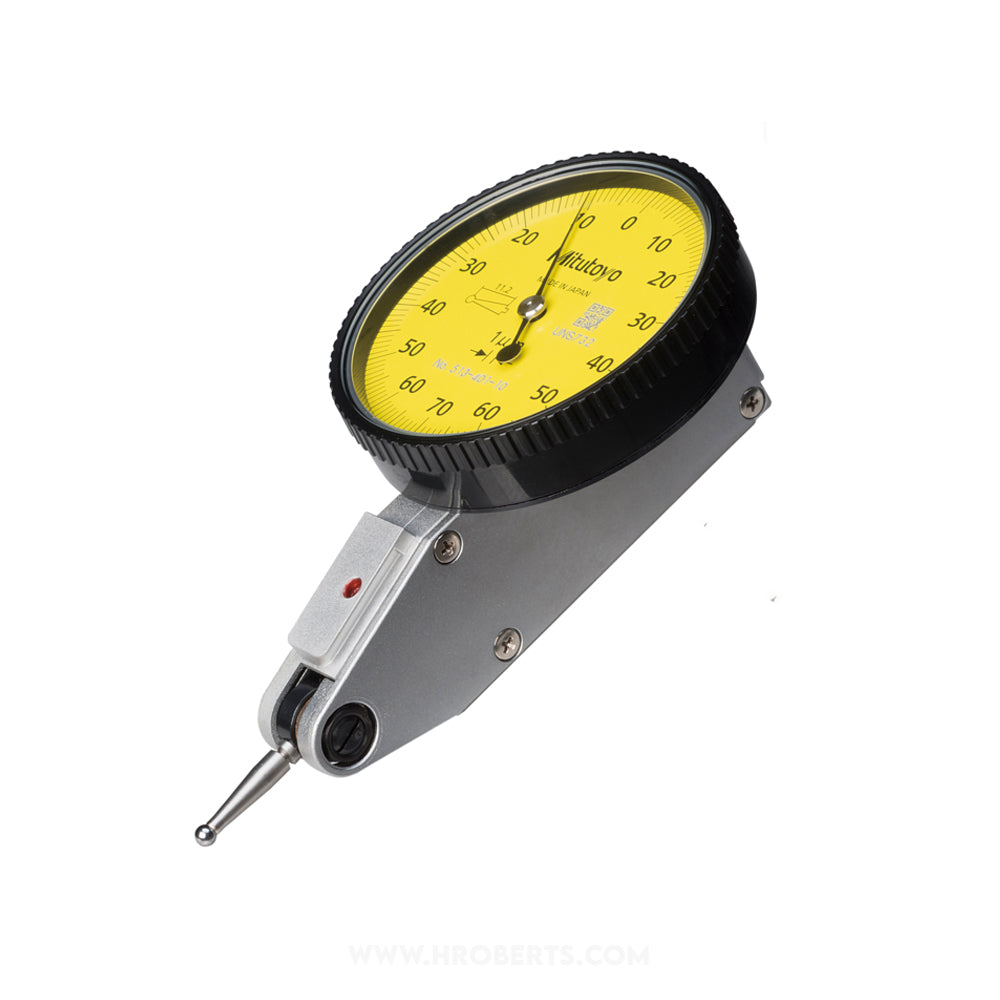

Mitutoyo 513-401-10E Lever Dial Indicator Horizontal Type, Graduation 0.001mm, Range 0.14mm, Scale 0-70-0, Stylus Length 11.2mm, Bezel Diameter 40mm
SKU:Code: 513-401-10E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Horizontal Type
- range 0.14mm
- display type Non-Digital
- graduations 0.001mm
- accuracy 3 µm

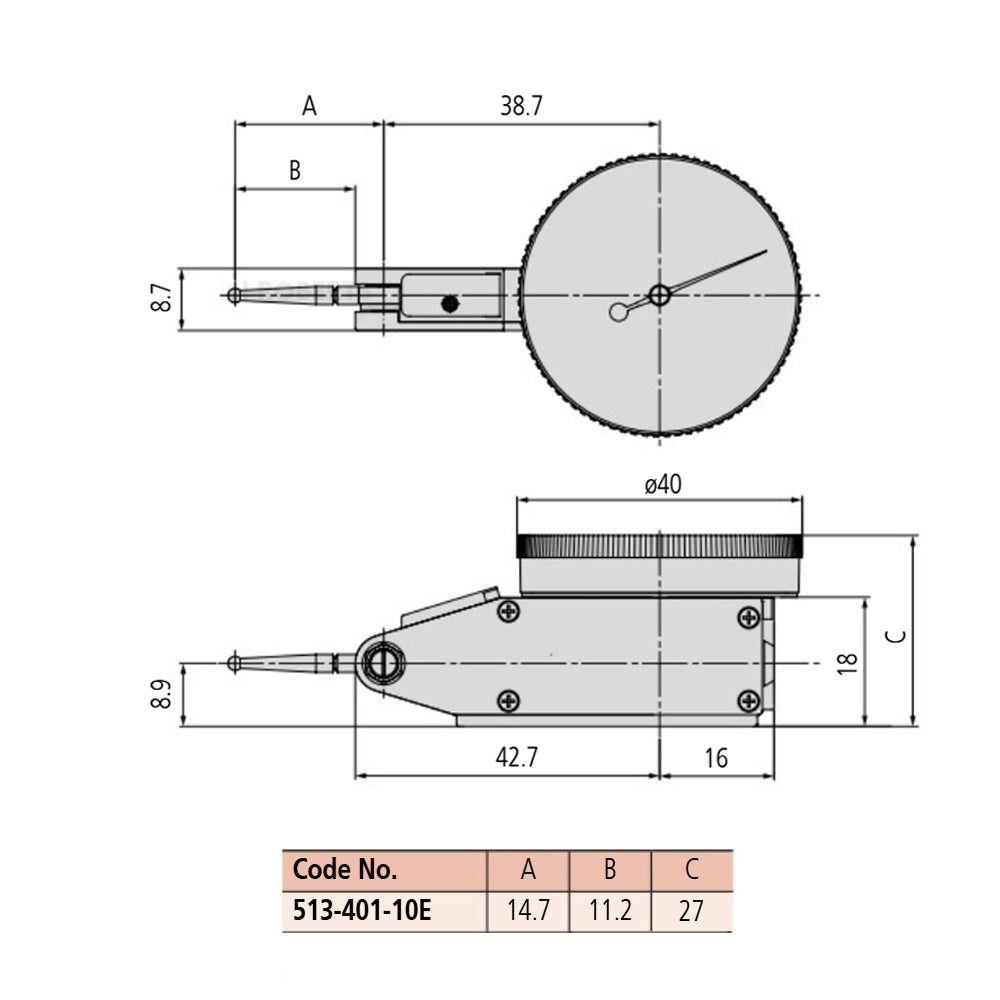

- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Metric
- scale 0-70-0
- contact point thread M1.7x0.35
Mitutoyo 513-401-10E Lever Dial Indicator (Horizontal Type), 0.001mm Graduation, 0.14mm Range
The Mitutoyo 513-401-10E Lever Dial Indicator is a precision mechanical measuring instrument designed for fine comparative measurement and inspection tasks. Its horizontal-type lever and fine 0.001 mm graduation provide highly responsive and accurate readings, especially in tight spaces or on fixtures where traditional indicators may not fit.
Featuring smooth lever action and a clear analogue dial, this indicator delivers dependable readings for workshop, inspection, and assembly applications. Its compact design and robust build quality ensure reliable use in professional environments.
Key Features
- Horizontal-type lever dial indicator for flexible measurement setups
- Fine graduation of 0.001 mm for precise analogue readings
- Measuring range of 0.14 mm
- Clear, easy-to-read dial scale
- Smooth lever action for controlled measurement movement
- Compact design for use in confined spaces
- Durable construction for reliable workshop performance
- Stylus designed for repeatable contact and accuracy
Applications
- Fine comparative measurement
- Quality control and inspection
- Assembly and fabrication tasks
- Machine setup and tooling checks
Why Choose the Mitutoyo 513-401-10E
The Mitutoyo 513-401-10E offers precise analogue measurement with a fine graduation and dependable mechanical performance. Its horizontal type design and clear dial make it a practical choice for detailed inspection tasks and use in tight spaces within professional workshop environments.
