Mitutoyo

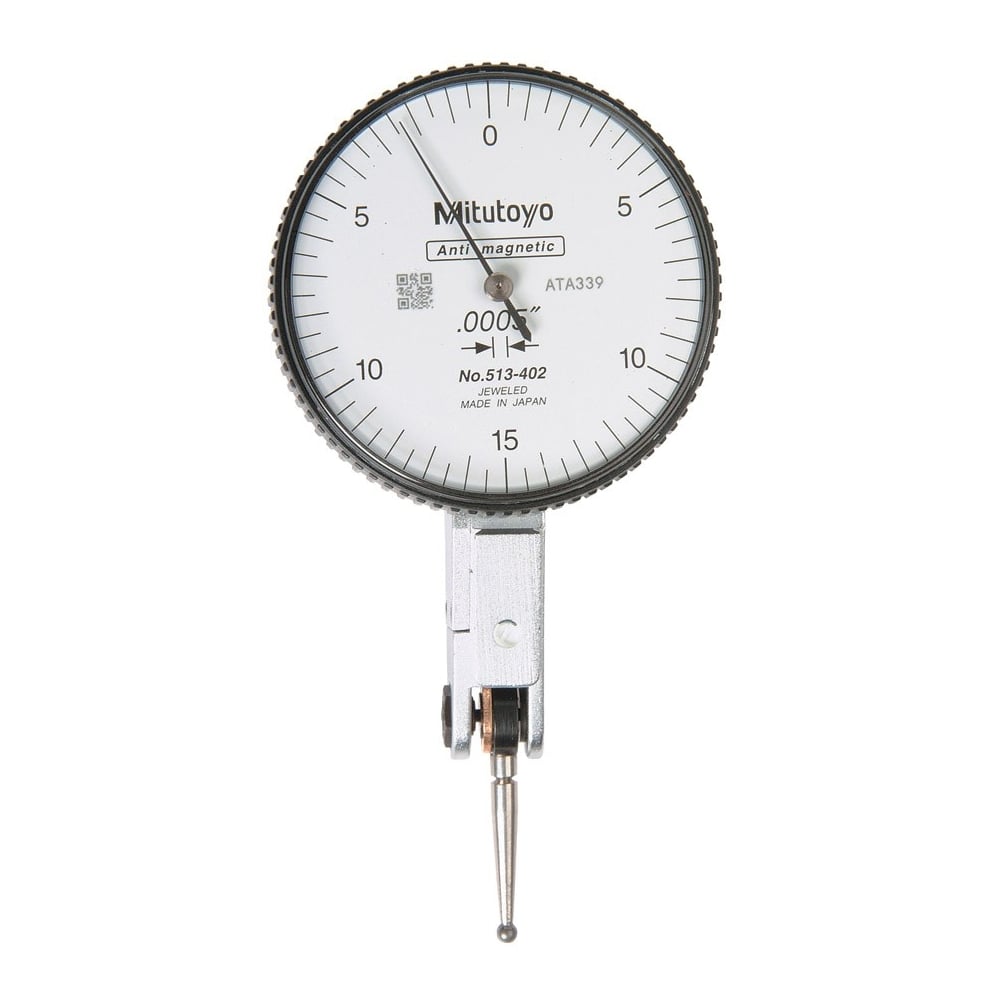

513-402E Lever Dial Indicator Horizontal Type, Graduation 0.0005", Range 0.03", Scale 0-15-0, Stylus Length 16.4mm, Bezel Diameter 40mm
SKU:Code: 513-402
This item is no longer available or has been discontinued.
Our recommended alternative
Dial Test Indicator
Mitutoyo 513-402-10E Dial Test Indicator
Regular price £84.00Sale price £84.00 Regular priceExcl. VAT£112.00
Basic Set: Supplied with box, 902805 3/8" dia stem and 133195 stylus 0.08" dia
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.030"
- display type Non-Digital
- graduations 0.0005"
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Imperial
- scale 0-15-0
- contact point thread M1.7x0.35
description
description
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
