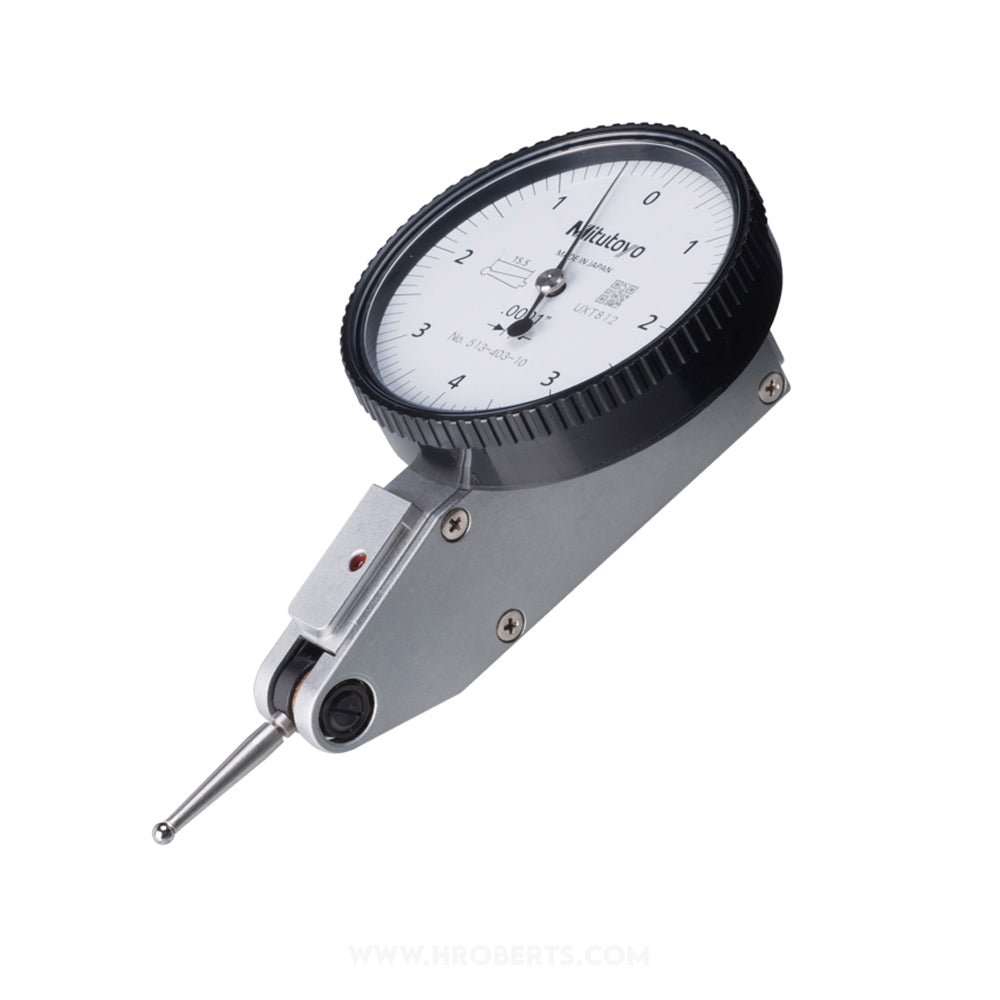

513-403-10E Lever Dial Indicator Horizontal Type, Graduation 0.0001", Range 0.008", Scale 0-4-0, Stylus Length 15.5mm, Bezel Diameter 40mm

SKU:Code: 513-403-10E

Sale Sold out Regular price £101.25
Save: 25% Sold out Sale price £101.25 Regular price £135.00
Excl. VAT
Basic Set: Supplied with box, 902805 3/8" dia stem and 21CZB064 stylus 0.08" dia
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Horizontal Type
  • range 0.008"
  • display type Non-Digital
  • graduations 0.0001"
  • bezel dia 40mm
  • measuring force 0.3 N or Less
  • measuring units Imperial
  • scale 0-4-0
  • contact point thread M1.7x0.35

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
