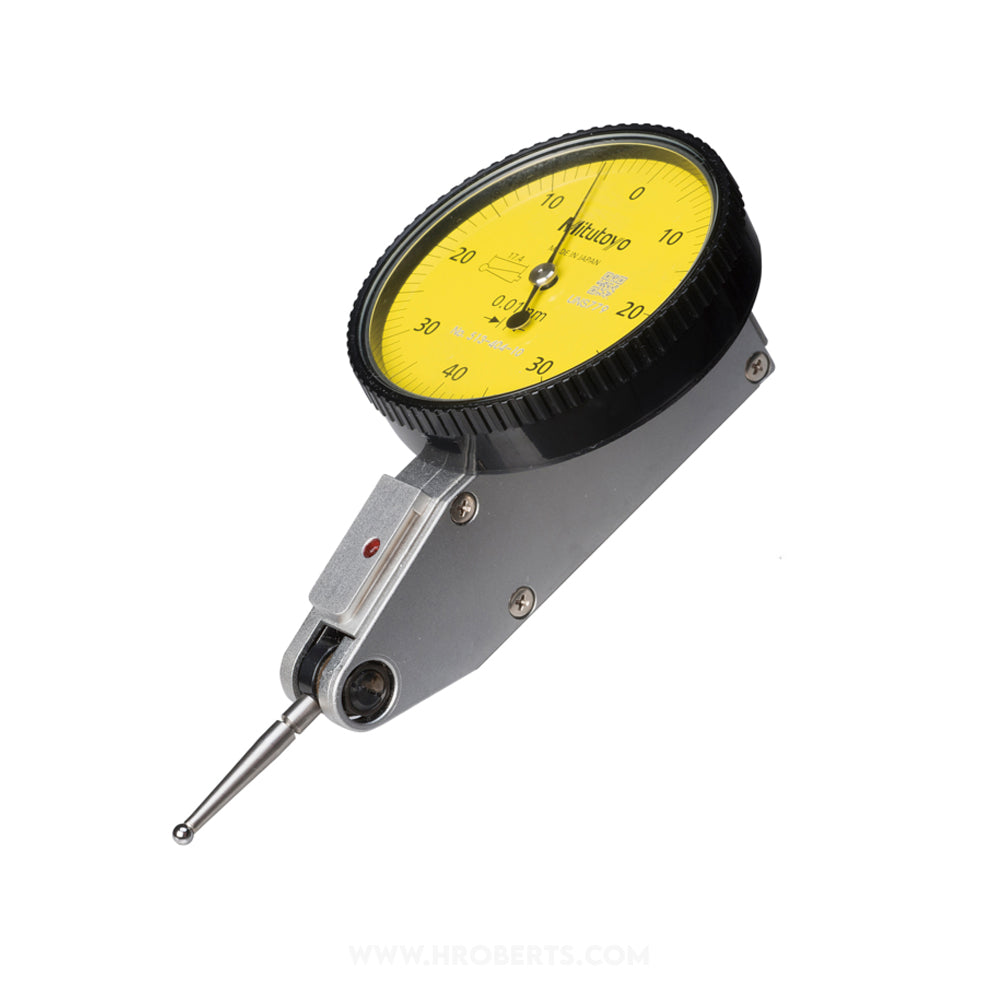

Mitutoyo 513-404-10E Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 0.8mm, Scale 0-40-0, Stylus Length 17.4mm, Bezel Diameter 40mm
SKU:Code: 513-404-10E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Horizontal Type
- range 0.8mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Metric
- scale 0-40-0
- contact point thread M1.7x0.35
Mitutoyo 513-404-10E Lever Dial Indicator (Horizontal Type), 0.01mm Graduation, 0.8mm Range
The Mitutoyo 513-404-10E Lever Dial Indicator is a precision mechanical measurement instrument designed for accurate comparative measurement and inspection tasks. Its horizontal-type lever design and clear analogue dial make it easy to use in confined spaces and on fixtures where traditional indicators may not fit.
With a finely graduated scale and smooth movement, this dial indicator delivers reliable readings for workshop, inspection, and assembly applications. Its robust build quality ensures consistent performance in professional environments.
Key Features
- Horizontal-type lever dial indicator for versatile measurement
- Graduation of 0.01mm for precise analogue readings
- Measuring range of 0.8mm
- Clear, easy-to-read dial scale
- Smooth lever action for controlled measurement movement
- Compact design for use in tight spaces
- Durable construction suitable for workshop use
- Stylus length designed for reliable contact and repeatability
Applications
- Comparative measurement
- Quality control and inspection
- Assembly and fabrication tasks
- Machine setup and tooling checks
Why Choose the Mitutoyo 513-404-10E
The Mitutoyo 513-404-10E offers dependable mechanical performance with a clear analogue dial and precision lever movement. Its horizontal type design and compact form factor make it a practical choice for tight-space measuring tasks and general workshop inspection.
