Mitutoyo

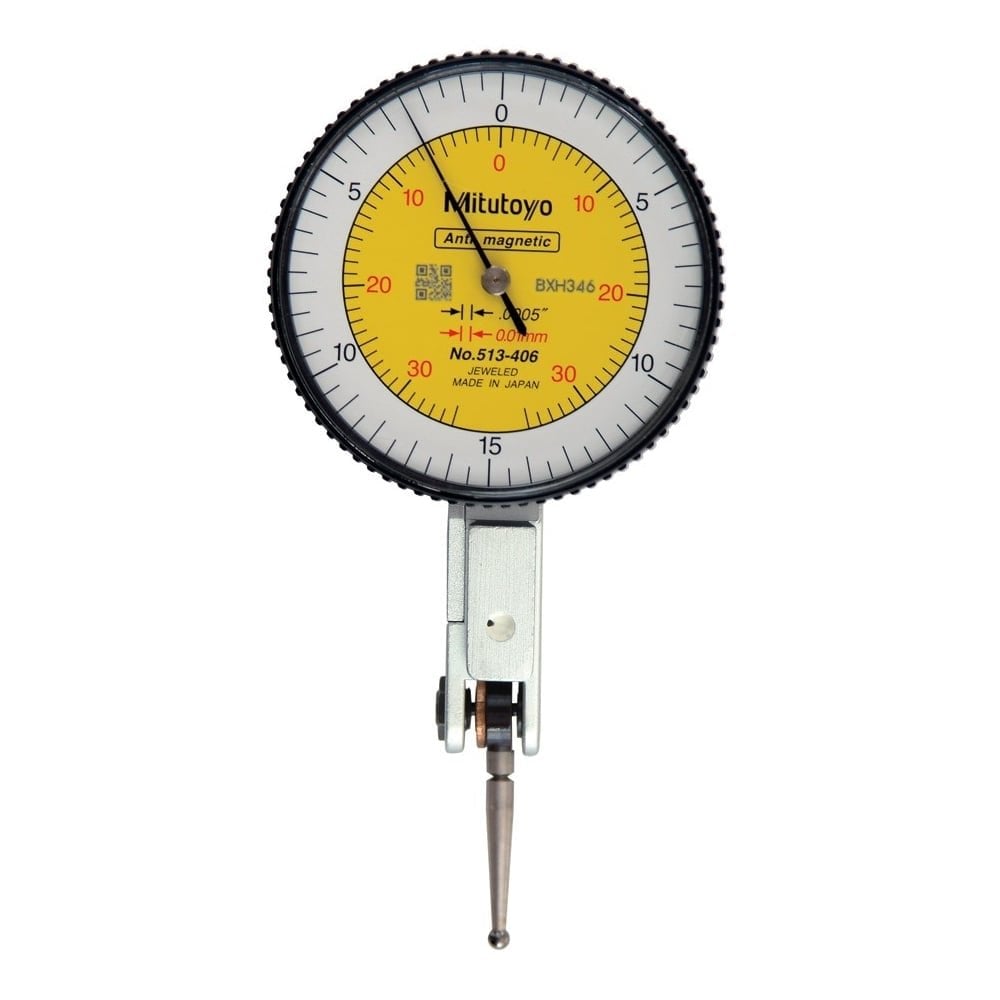

513-406T Lever Dial Indicator Horizontal Type, Graduation 0.0005" / 0.01mm, Range 0.03" / 0.7mm, Scale 0-15-0 / 0-35-0, Stylus Length 16.4mm, Bezel Diameter 40mm

SKU:Code: 513-406T

This item is no longer available or has been discontinued.

Full Set: Supplied with box, 902805 3/8", 902802 0.157" dia stem, 133196 0.04", 133195 0.80", 133197 0.12" dia stylus, 900322 swivel clamp and 900306 holding bar
View full details
Specification
  • type Horizontal Type
  • range 0.030" / 0.7mm
  • display type Non-Digital
  • graduations 0.0005" / 0.01mm
  • bezel dia 40mm
  • measuring force 0.3 N or Less
  • measuring units Imperial / Metric
  • scale 0-15-0 / 0-35-0
  • contact point thread M1.7x0.35
description

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
