Mitutoyo

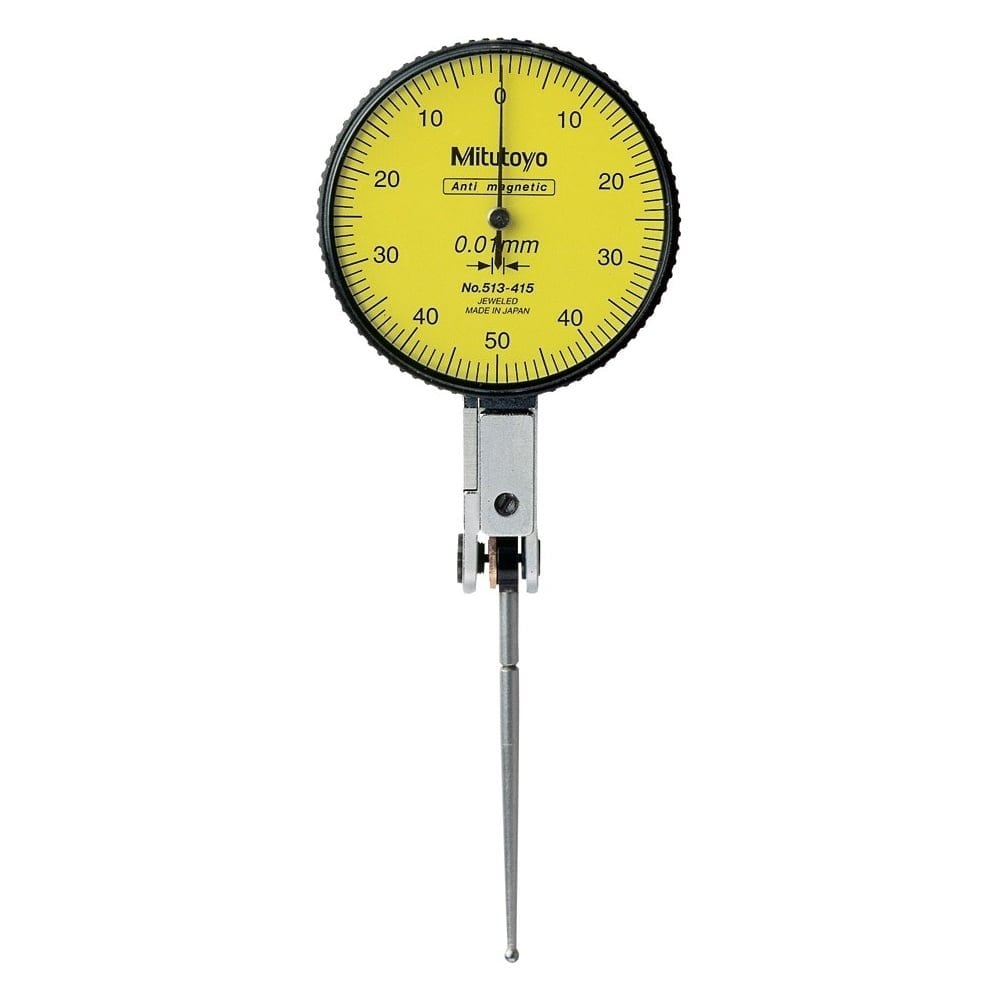

513-415T Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 1mm, Scale 0-50-0, Stylus Length 41mm, Bezel Diameter 40mm
SKU:Code: 513-415T
This item is no longer available or has been discontinued.
Our recommended alternative
Dial Test Indicator
Mitutoyo 513-415-10T Dial Test Indicator
Regular price £116.25Sale price £116.25 Regular priceExcl. VAT£155.00
Need more information? Ask a question or contact us.
- type Horizontal Type
- range 1.0mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 40mm
- measuring force 0.2 N or Less
- measuring units Metric
- scale 0-50-0
- contact point thread M1.7x0.35
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
