Mitutoyo

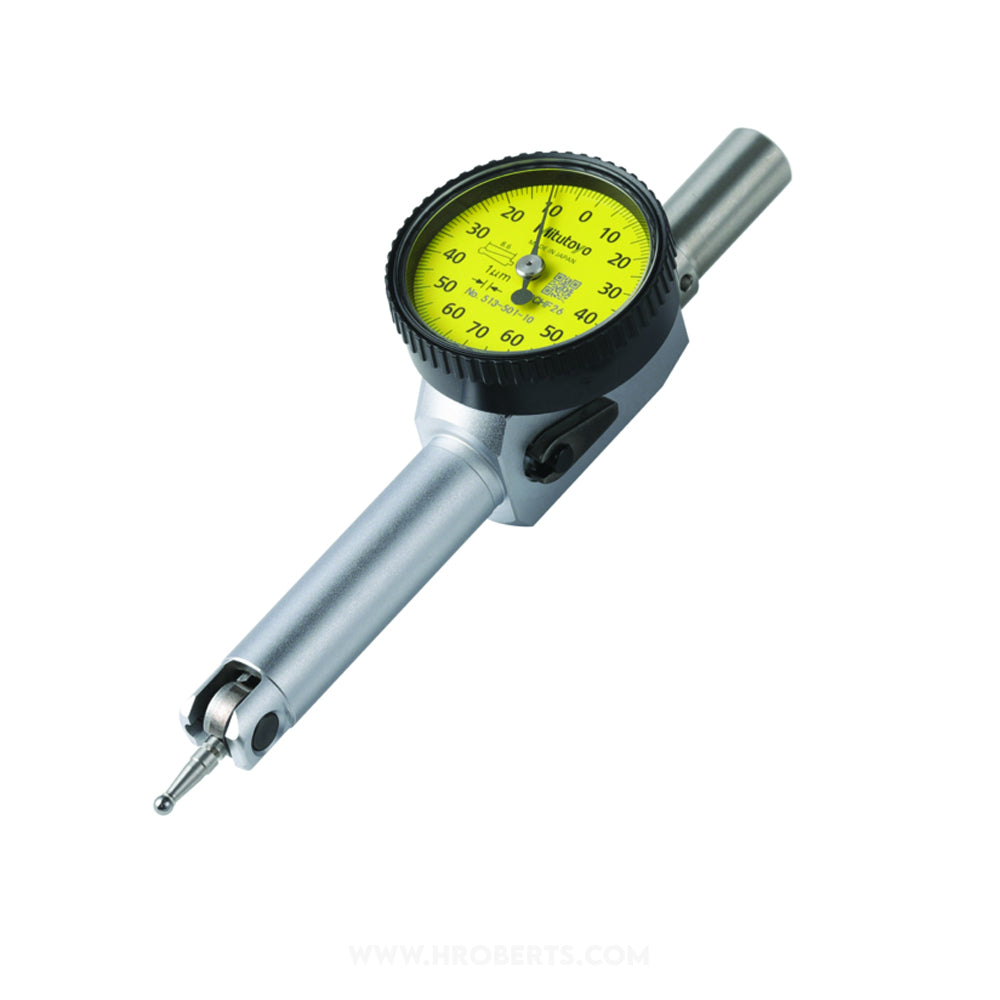

513-501-10T Lever Dial Indicator Pocket Type, Graduation 0.001mm, Range 0.14mm, Scale 0-70-0, Stylus Length 8.6mm, Bezel Diameter 29.2mm

SKU:Code: 513-501-10T

Sale Sold out Regular price £139.50
Save: 25% Sold out Sale price £139.50 Regular price £186.00
Excl. VAT
Full Set: Supplied with box, 902804 8mm, 902802 4mm dia stem, 136104 2mm dia stylus, 900321 swivel clamp and 900209 holding bar
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Pocket Type
  • range 0.14mm
  • display type Non-Digital
  • graduations 0.001mm
  • bezel dia 29.2mm
  • measuring force 0.5 N or Less
  • measuring units Metric
  • scale 0-70-0
  • contact point thread M1.7x0.35
  • repeatability limit 1 µm
description

A Mitutoyo versatile lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications, especially where the slim round body (Ø 9.5mm) is an advantage for reaching locations with restricted access. The measuring direction is easily reversed and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
