Mitutoyo

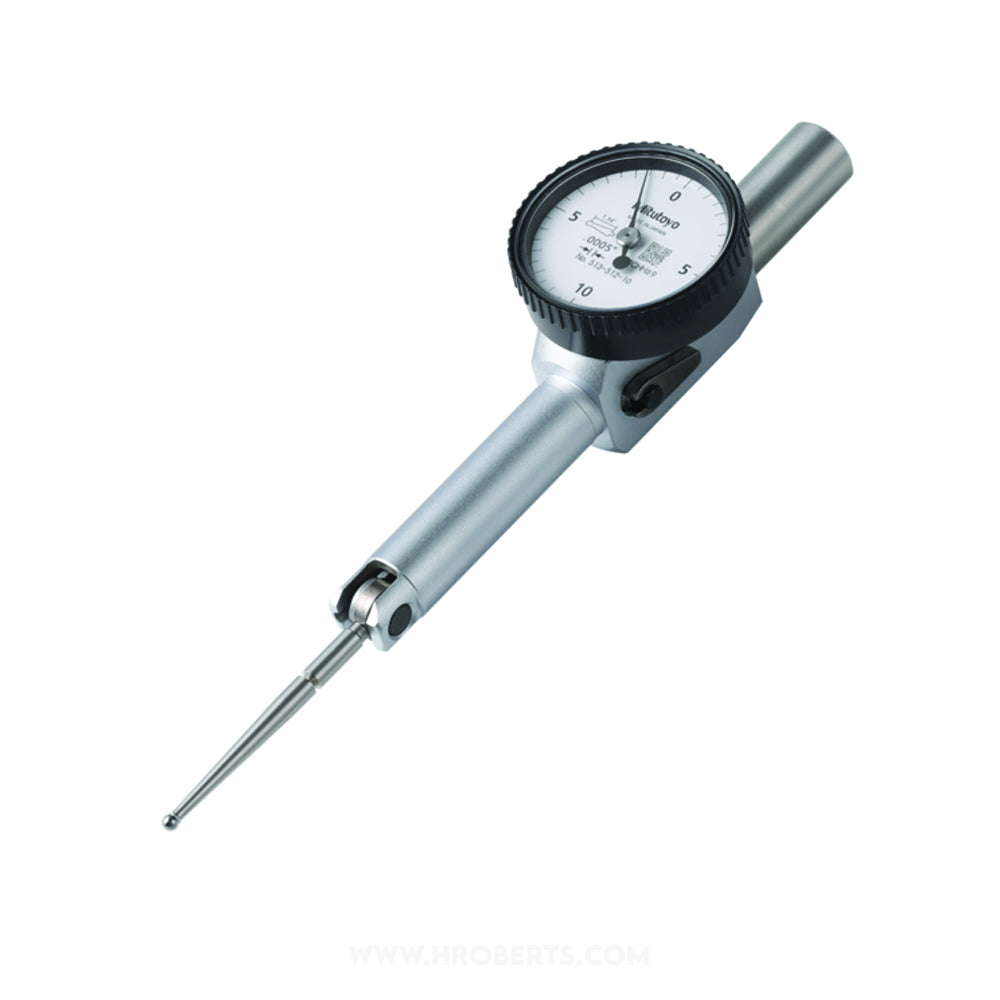

513-512-10T Lever Dial Indicator Pocket Type, Graduation 0.0005", Range 0.02", Scale 0-10-0, Stylus Length 33.3mm, Bezel Diameter 29.2mm
SKU:Code: 513-512-10T
Sale
Sold out
Regular price
£119.25
Save: 25%
Sold out
Sale price
£119.25
Regular price
£159.00
Excl. VAT
Full Set: Supplied with box, 902805 3/8", 902802 0.157" dia stem, 131316 1mm 131324 2mm, 131317 3mm dia stylus, 900322 swivel clamp and 900306 holding bar
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Pocket Type
- range 0.020"
- display type Non-Digital
- graduations 0.0005"
- bezel dia 29.2mm
- measuring force 0.3 N or Less
- measuring units Imperial
- scale 0-10-0
- contact point thread M1.7x0.35
- repeatability limit ±0.0002"
description
description
A Mitutoyo versatile lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications, especially where the slim round body (Ø 9.5mm) is an advantage for reaching locations with restricted access. The measuring direction is easily reversed and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
