Mitutoyo

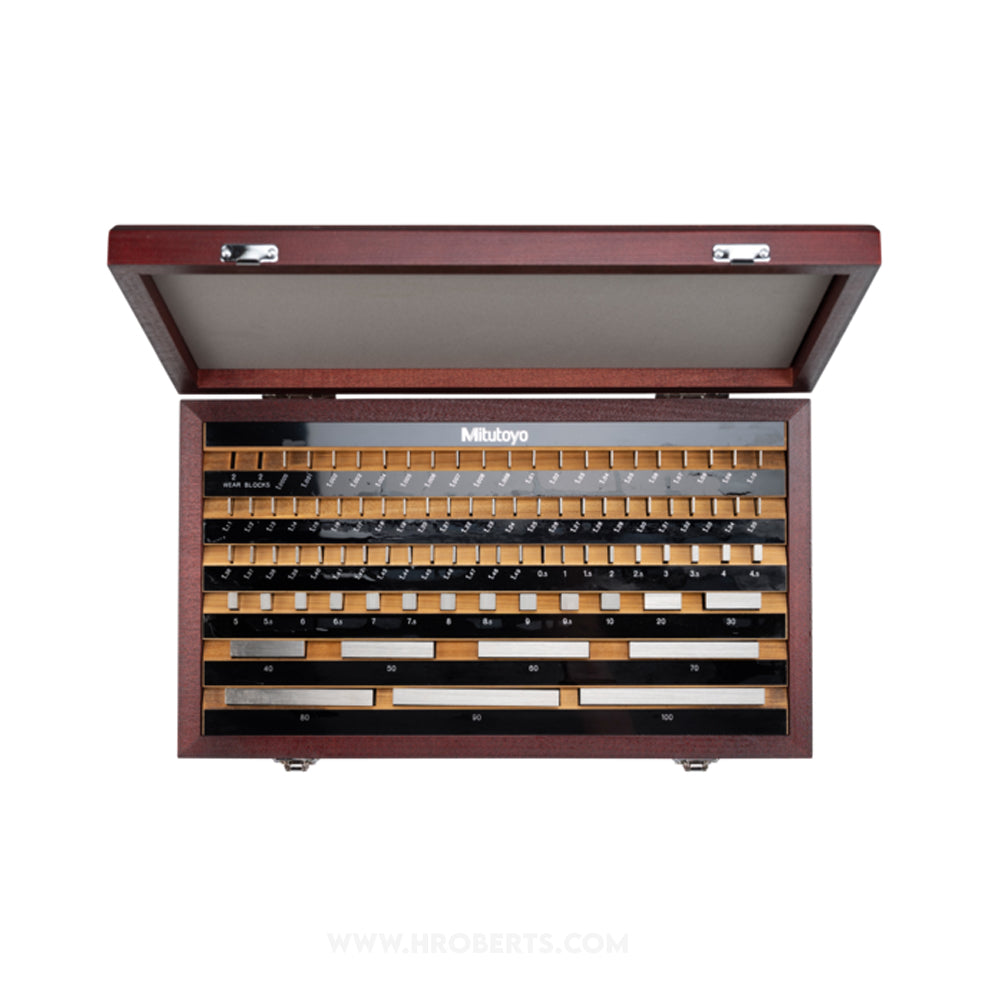

516-970-10 Gauge Block Set, Metric M88, Grade 0, Steel

SKU:Code: 516-970-10

Sale Sold out Regular price £2,017.50
Save: 25% Sold out Sale price £2,017.50 Regular price £2,690.00
Excl. VAT
1mm base block sets.Supplied in a wooden case with certificate (Gauge Blocks only)
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Gauge Block Set
  • accuracy BS4311 Part 1 1933 (UK)
  • material Steel
  • measuring units Metric
  • Includes Inspection Certificate
  • grade 0
  • blocks per set 88
  • set configuration 1.0005mm 1.001-1.009mm by 0.001 step 1.01-1.49mm by 0.01 step 0.5-9.5mm by 0.5 step 10-100mm by 10 step
description

Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Selecting the best set, or sets, to acquire usually depends on the accuracy required by the target applications, the level of convenience desired (larger sets offer more combination possibilities) and the environmental conditions in which they will be used.
