Specification
Specification

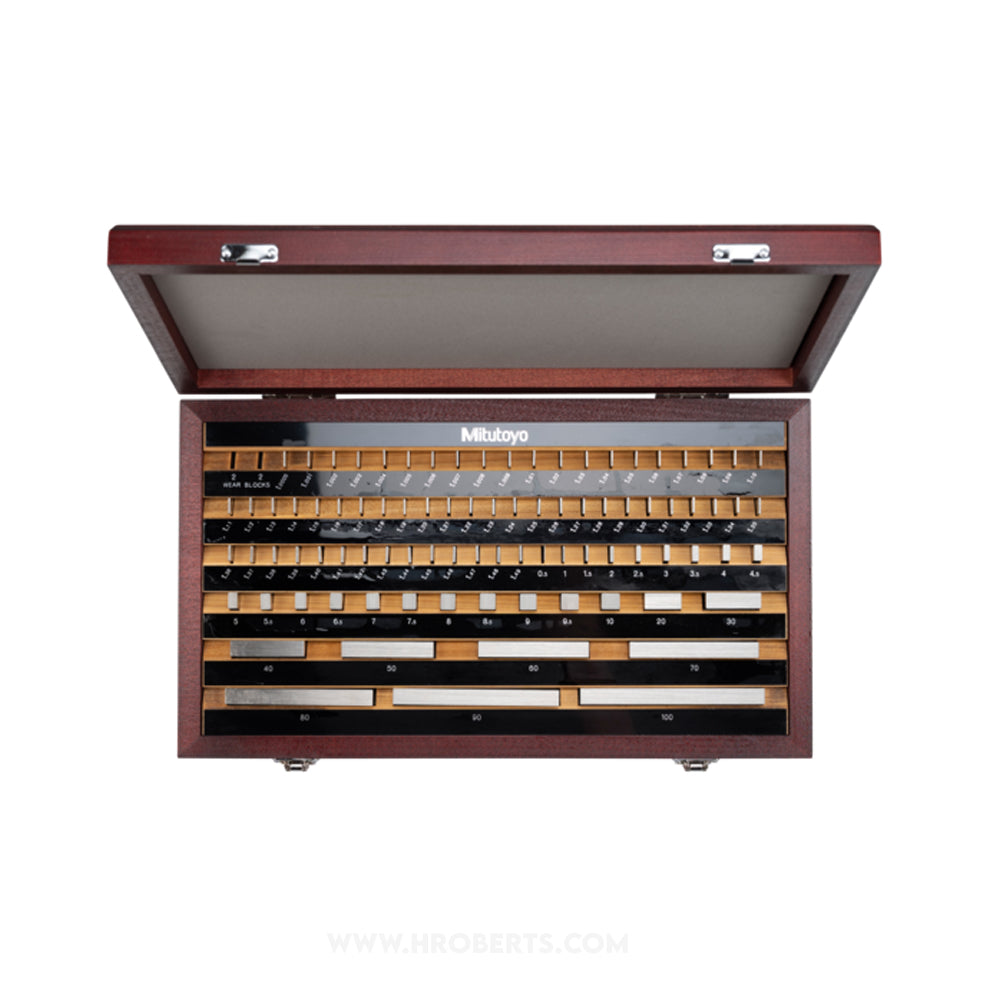

- type Gauge Block Set
- accuracy BS4311 Part 1 1933 (UK)
- material Steel
- measuring units Metric
- Includes Inspection Certificate
- grade 2
- blocks per set 88
- set configuration 1.0005mm 1.001-1.009mm by 0.001 step 1.01-1.49mm by 0.01 step 0.5-9.5mm by 0.5 step 10-100mm by 10 step
description
description
Mitutoyo provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Selecting the best set, or sets, to acquire usually depends on the accuracy required by the target applications, the level of convenience desired (larger sets offer more combination possibilities) and the environmental conditions in which they will be used.
