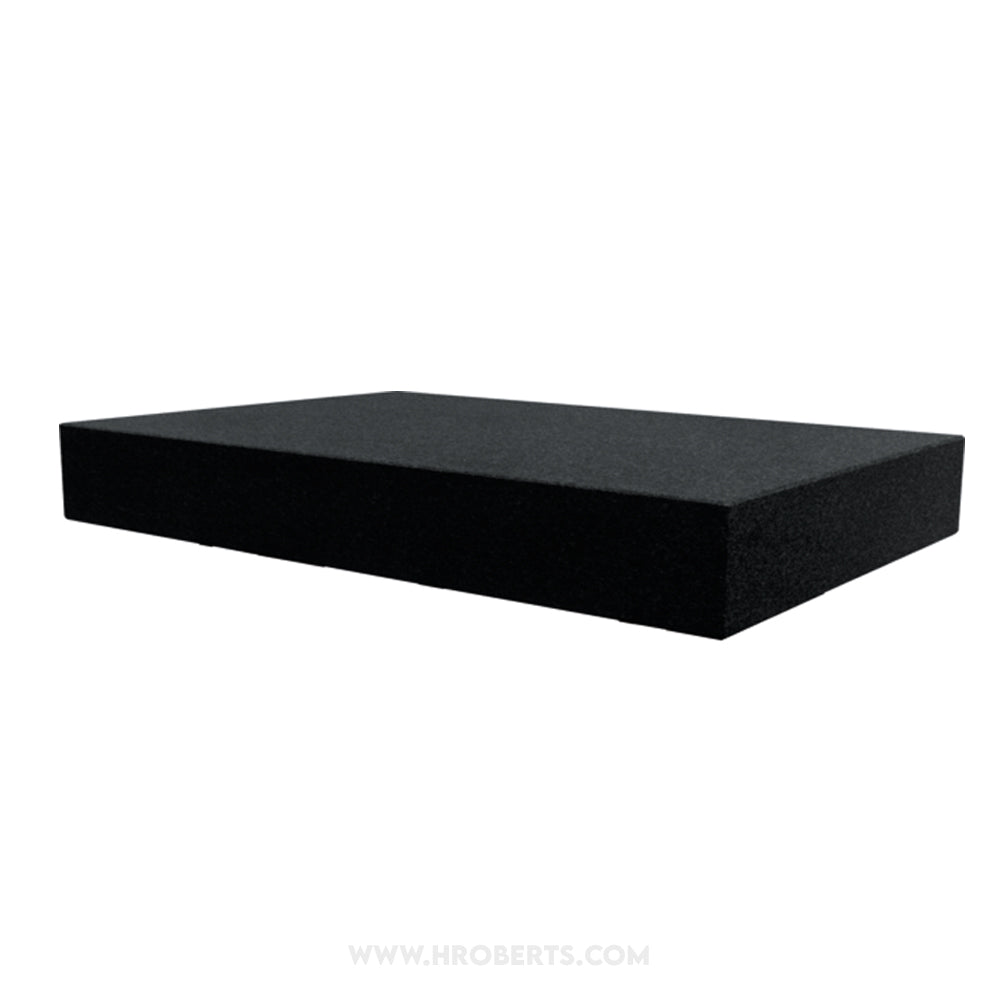

517-905-0 Black Granite Surface Plate Grade 0 Dimension 600 x 450 x 75mm ( L x W x H )

SKU:Code: 517-905-0

Sale Sold out Regular price £459.90
Save: 10% Sold out Sale price £459.90 Regular price £511.00
Excl. VAT
A Mitutoyo surface plate made from fine-grained black granite. This material has many advantages compared to cast iron in this application, such as being non-magnetic, rustless, twice as hard, non-burr-forming and not prone to stickiness
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Granite Plate (Without Stand)
  • size 600 x 450 x 75mm
  • grade Grade 0

Natural granite is free from deterioration or dimensional change over time.Granite surface plates have significant advantages over cast iron surface plates: twice as hard as cast iron; non-magnetic; low thermal expansion. Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to workpieces or instruments. Free from wringing, so there is no interruption of work. Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner, etc. (Recommended environment: temperature 20±1°C, humidity 58±2%.)
