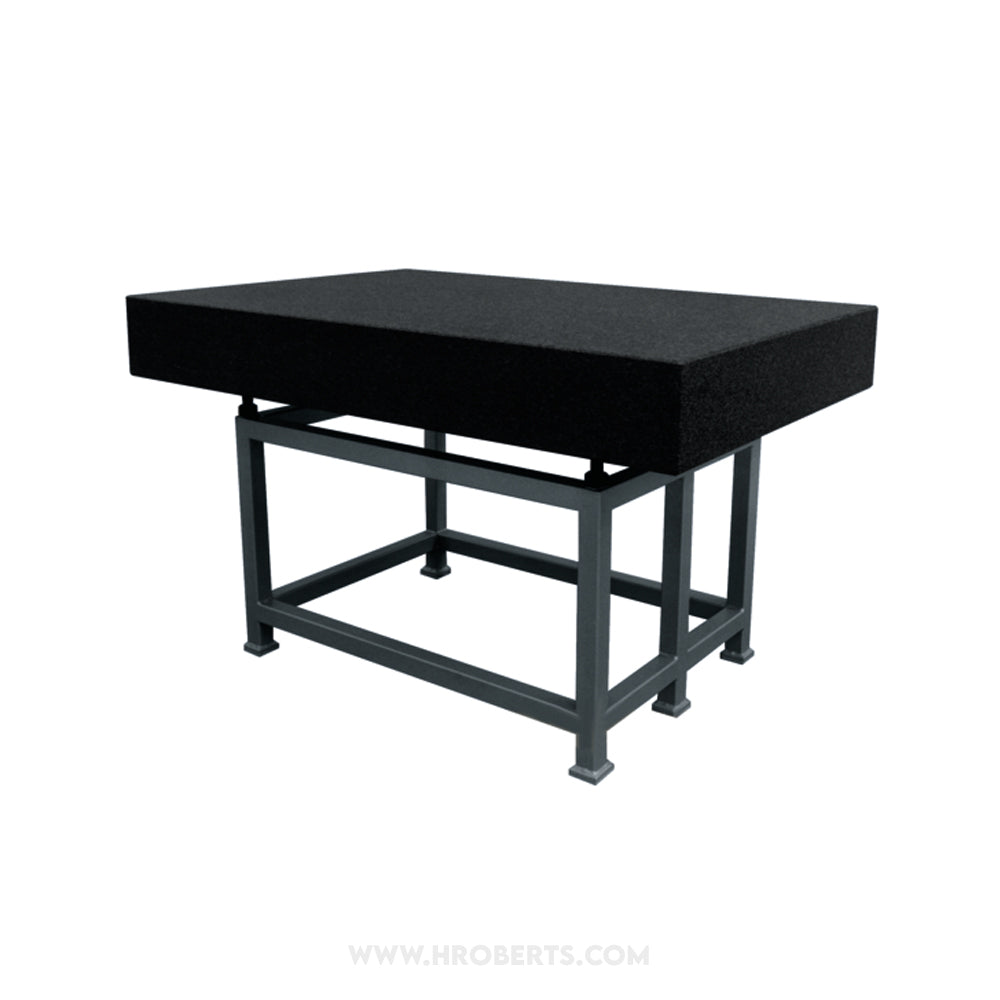

517-912-1 Black Granite Surface Plate Grade 1 with Stand, Dimension 1200 x 900 x 125mm ( L x W x H )

SKU:Code: 517-912-1

Sale Sold out Regular price £2,025.00
Save: 10% Sold out Sale price £2,025.00 Regular price £2,250.00
Excl. VAT
A Mitutoyo surface plate made from fine-grained black granite. This material has many advantages compared to cast iron in this application, such as being non-magnetic, rustless, twice as hard, non-burr-forming and not prone to stickiness
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Granite Table (With Stand)
  • size 1200 x 900 x 125mm
  • remarks Height to underside of Granite Surface Plate - 730mm (+/- 20mm)
  • grade Grade 1

Natural granite is free from deterioration or dimensional change over time.Granite surface plates have significant advantages over cast iron surface plates: twice as hard as cast iron; non-magnetic; low thermal expansion. Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to workpieces or instruments. Free from wringing, so there is no interruption of work. Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner, etc. (Recommended environment: temperature 20±1°C, humidity 58±2%.)
