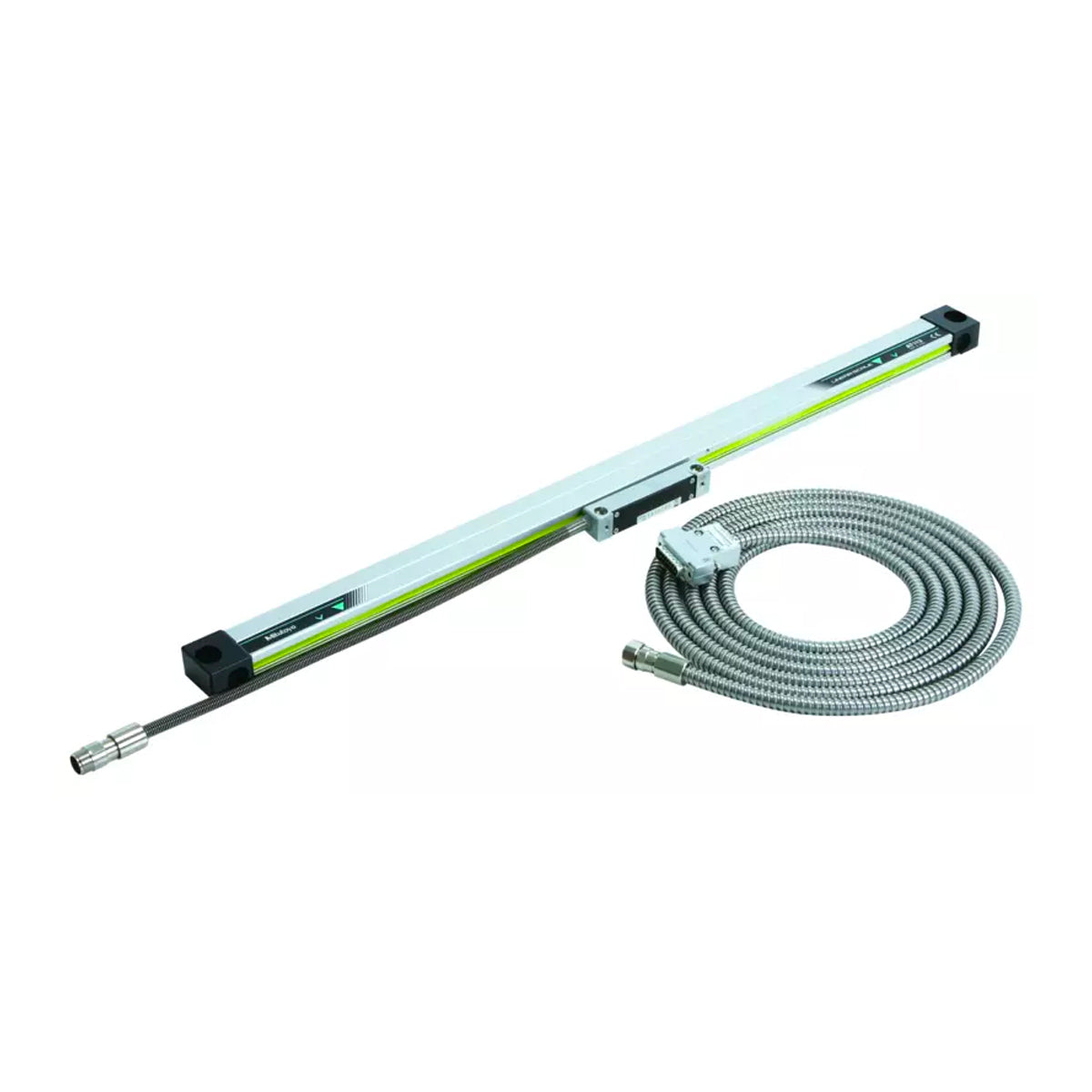

Mitutoyo 539-201-30 Range 100mm / 4" AT113 Slim line Linear Scale
SKU:Code: 539-201-30
Sale
Sold out
Regular price
£468.00
Save: 10%
Sold out
Sale price
£468.00
Regular price
£520.00
Excl. VAT
These linear scales are built for limited installation space
Glass scale - Zero not coded
Expansion factor (8 ± 1)x 10-6/K-1
An armoured inox signal cable is used to connect the DRO counter
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 100mm / 4"
- display type Without (Via Cable)
- accuracy (5+5L/1000) μm
- measuring units Metric / Imperial
- cable length 3.5 Metres
- max response speed 120 m/min
- operating temperature 0 to 45°C
- brand Mitutoyo
description
description
Accuracy: Standard type (5+5L/1000) µm
L = Effective range (mm)
Mass: 0.9 kg
technical drawings
PDF downloads
accessories
