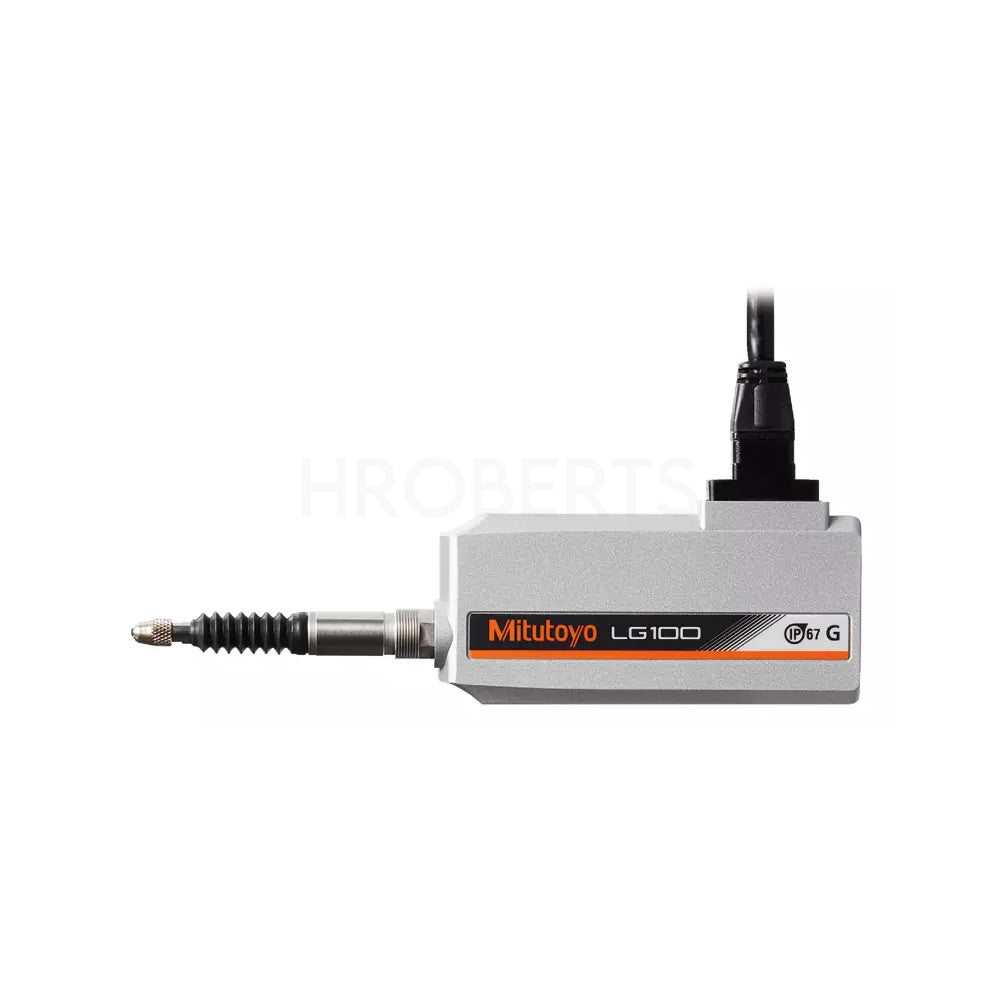

Mitutoyo 542-190 LG100 Coolant Proof Linear Gauge, Range 10mm, Resolution 0.001mm

Code: 542-190

Sale Sold out £574.50
Save: 25% Sold out £574.50 £766.00
Excl. VAT
The LG100 is a robust and cost-effective linear gauge designed for in-line and automated machine applications, typically used with the EJ Counter. Its advanced plunger guidance system provides excellent resistance to shock and vibration, while linear ball bearings ensure long service life. The gauge offers high precision with 0.3 µm repeatability and 0.5 µm accuracy over a 20 µm range, and its differential square-wave output supports a wide variety of measurement applications. It operates reliably in temperatures from 0°C to 50°C.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Questions & Answers loading...
Specification
  • brand Mitutoyo
  • type Linear Gauge LG100
  • range 10mm
  • graduations 0.001mm
description

High-accuracy gauge head suitable for in-line and in-laboratory use. Assures the expected repeatability (2σ) in the full measurement range and the narrow-range precision. Protection grade IP67G with sliding durability of 50 million times and more*1 and adoption of highly oil-resistant materials. All models have the origin point signal output function to restore the origin point position after recovery from problems such as overspeed. It can be connected to a compact counter (EJ counter) suitable for in-line use or building into a device or a multifunctional counter (EH counter)*2 suitable for use in measurement rooms.



Model:
LG100-110
Range:
0–10 mm
Accuracy:
(1.5+L/50) μm
L=measured length in mm
Measuring force:
1.4 N with spindle down,
1.3 N with spindle horizontal,
1.2 N with spindle upwards
Resolution:
0.001 mm
Stem ∅:
8 mm
Cable length:
2 m
Scale:
Photoelectric linear encoder
Max. response speed:
1500 mm/s
Contact point:
Ø3 mm carbide ball, thread: M 2.5 x 0.45
Output signal:
90° phase difference, differential square wave (RS-422 equivalent)
Environmental conditions:
0°C to 50°C (20% to 80% rel. humidity, no condensation) °C
Bearing type:
Linear ball bearing
Signal pitch:
4 µm
Power supply:
DC 5 V ±0.2 V ripple voltage200 mVpp max
Minimum edge distance:
500 ns (1 μm type),
250 ns (0.5/0.1 μm type)
Scale reference point:
3 mm from the lowest rest point
(10 mm type),
5mm from the lowest rest point
(25/50 mm type)
Mass:
260 g

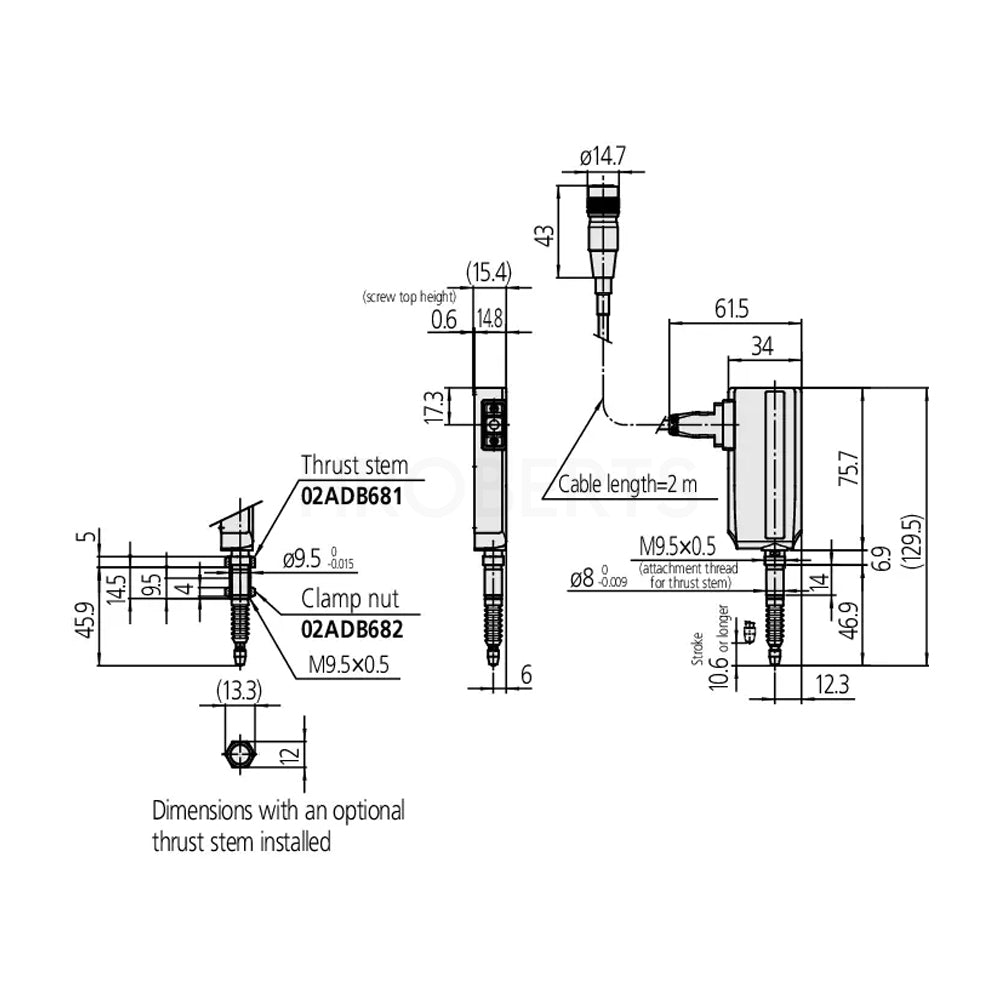

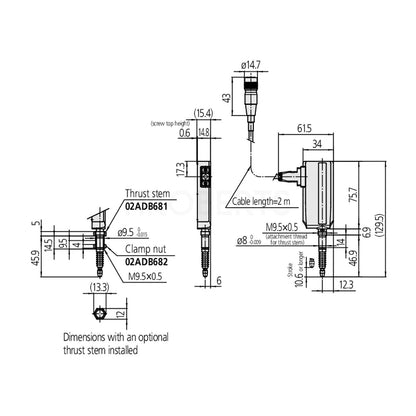

technical drawings
