Mitutoyo 542-194 LG100 Coolant Proof Linear Gauge, Range 25mm, Resolution 0.0005mm

Code: 542-194

Sale Sold out £694.50
Save: 25% Sold out £694.50 £926.00
Excl. VAT
The LG100 is a robust and economical linear gauge designed for use in automated and in-line measurement systems. Its advanced plunger guidance assembly provides excellent resistance to shock and vibration, while linear ball bearings ensure long-lasting reliability. The gauge offers high-precision performance with 0.3 µm repeatability and 0.5 µm accuracy over a 20 µm range. Featuring a differential square-wave output for flexible integration, the LG100 operates reliably in temperatures from 0°C to 50°C and is compatible with both EJ and EH counters.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Questions & Answers loading...
Specification
  • brand Mitutoyo
  • type Linear Gauge LG100
  • range 25mm
  • graduations 0.0005mm
description

High-accuracy gauge head suitable for in-line and in-laboratory use. Assures the expected repeatability (2σ) in the full measurement range and the narrow-range precision. Protection grade IP67G with sliding durability of 50 million times and more*1 and adoption of highly oil-resistant materials. All models have the origin point signal output function to restore the origin point position after recovery from problems such as overspeed. It can be connected to a compact counter (EJ counter) suitable for in-line use or building into a device or a multifunctional counter (EH counter)*2 suitable for use in measurement rooms.



Model:
LG100-0525
Range:
0–25 mm
Accuracy:
(1.5+L/50) μm
L=measured length in mm
Measuring force:
4.6 N with spindle down,
4.3 N with spindle horizontal,
4 N with spindle upwards
Resolution:
0.0005 mm
Stem ∅:
15 mm
Cable length:
2 m
Scale:
Photoelectric linear encoder
Max. response speed:
1500 mm/s
Contact point:
Ø3 mm carbide ball, thread: M 2.5 x 0.45
Output signal:
90° phase difference, differential square wave (RS-422 equivalent)
Environmental conditions:
0°C to 50°C (20% to 80% rel. humidity, no condensation) °C
Bearing type:
Linear ball bearing
Signal pitch:
2 µm
Power supply:
DC 5 V ±0.2 V ripple voltage200 mVpp max
Minimum edge distance:
500 ns (1 μm type),
250 ns (0.5/0.1 μm type)
Scale reference point:
3 mm from the lowest rest point
(10 mm type),
5mm from the lowest rest point
(25/50 mm type)
Mass:
300 g

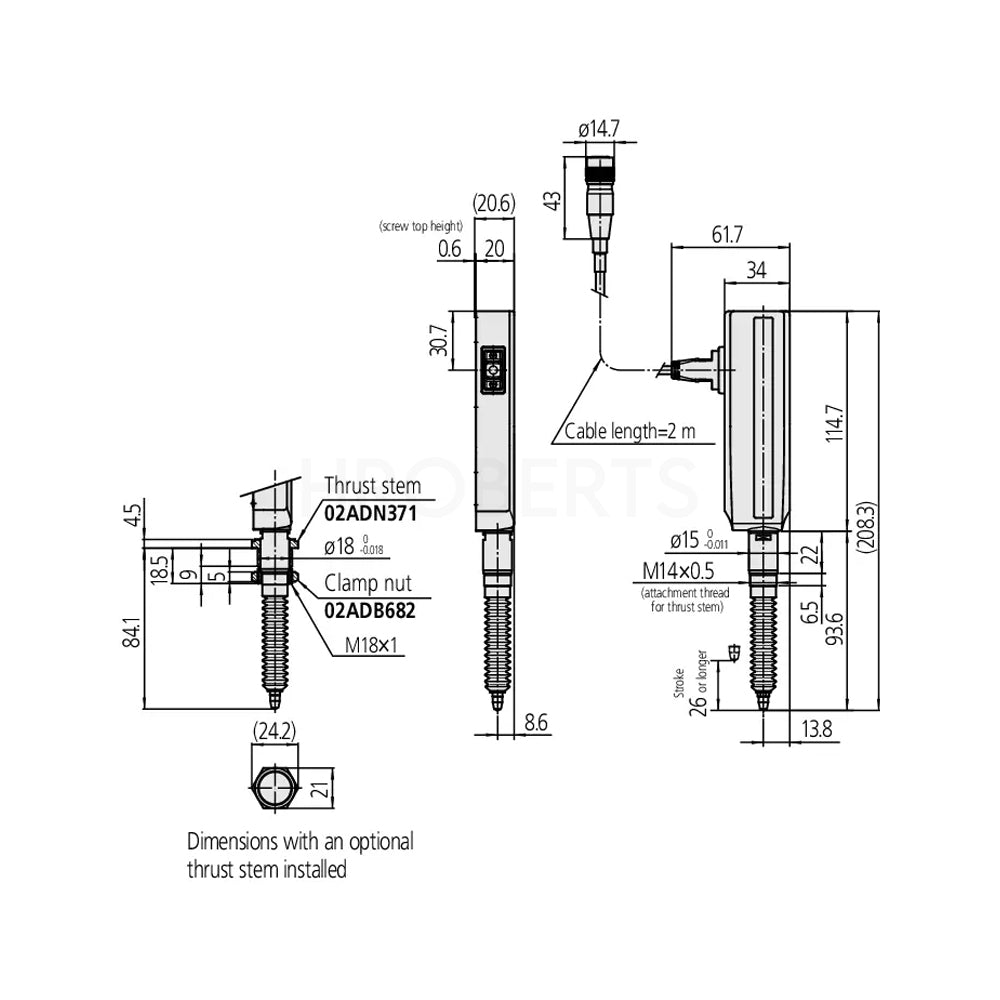

technical drawings
