Mitutoyo

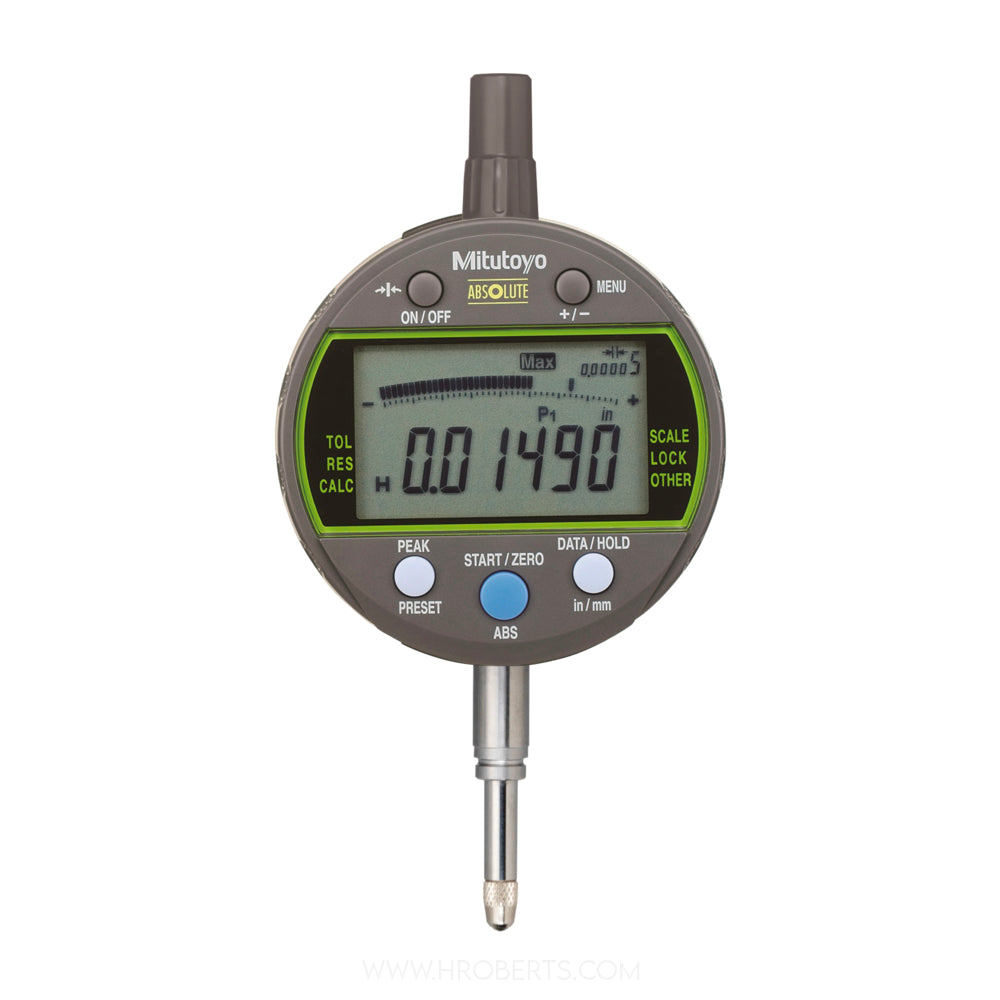

543-301B-10 Absolute Digimatic Digital Peak Value Hold Indicator ID-C, Range 0.5" / 12.7mm, Resolution 0.00005", 0.0001", 0.0005" / 0.001mm, 0.01mm ( Selectable )
SKU:Code: 543-301B-10
Sale
Sold out
Regular price
£333.00
Save: 25%
Sold out
Sale price
£333.00
Regular price
£444.00
Excl. VAT
The maximum, minimum, or runout value can be measured and displayed during measurement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.00005" / 0.0001"/ 0.0005" / 0.001mm/ 0.01mm
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Flatback
description
description
The maximum, minimum, or runout value can be measured and displayed during measurement. The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on. It also realizes high reliability by eliminating over-speed errors. Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems. User friendly, battery-operated type.
