Mitutoyo

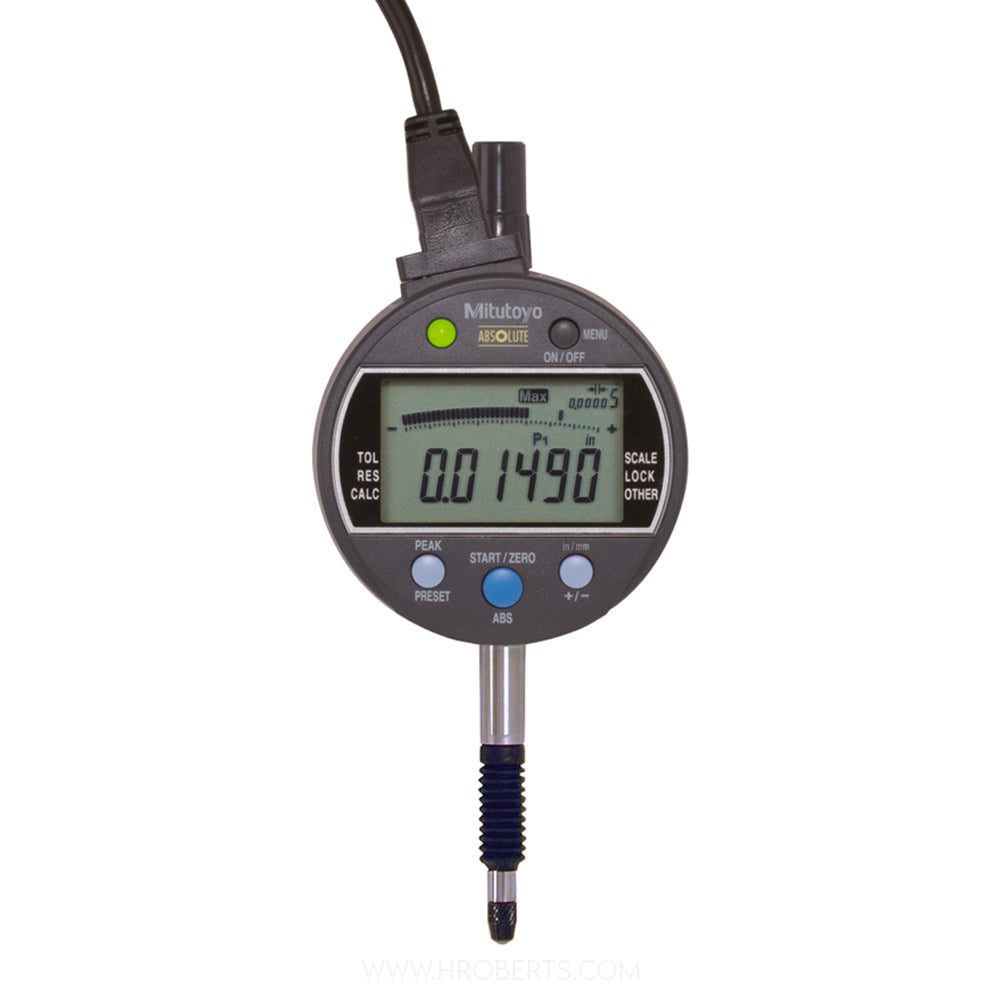

543-351B Absolute Digimatic Digital Signal Output Indicator ID-C, Range 0.5" / 12.7mm, Resolution 0.00005", 0.0001", 0.0005" / 0.001mm, 0.01mm ( Selectable )
SKU:Code: 543-351B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.00005" / 0.0001"/ 0.0005" / 0.001mm/ 0.01mm
- ip rating IP54
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Flatback
Enables a tolerance judgement to be output to external equipment for a measurement result against user-defined limits. Solid-state switching provides high reliability by avoiding metallic switch contacts. Output is enabled by directly connecting to external devices (sequencers etc., for which a logical invert is available if required). The measurement and judgement results are displayed on the LCD. The judgement result is also indicated by two LEDs. A peak-detection function is equipped for measuring and judging peak values such as runout. The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors. Provided with a 4 m cable. External power 5–24VDC required.
