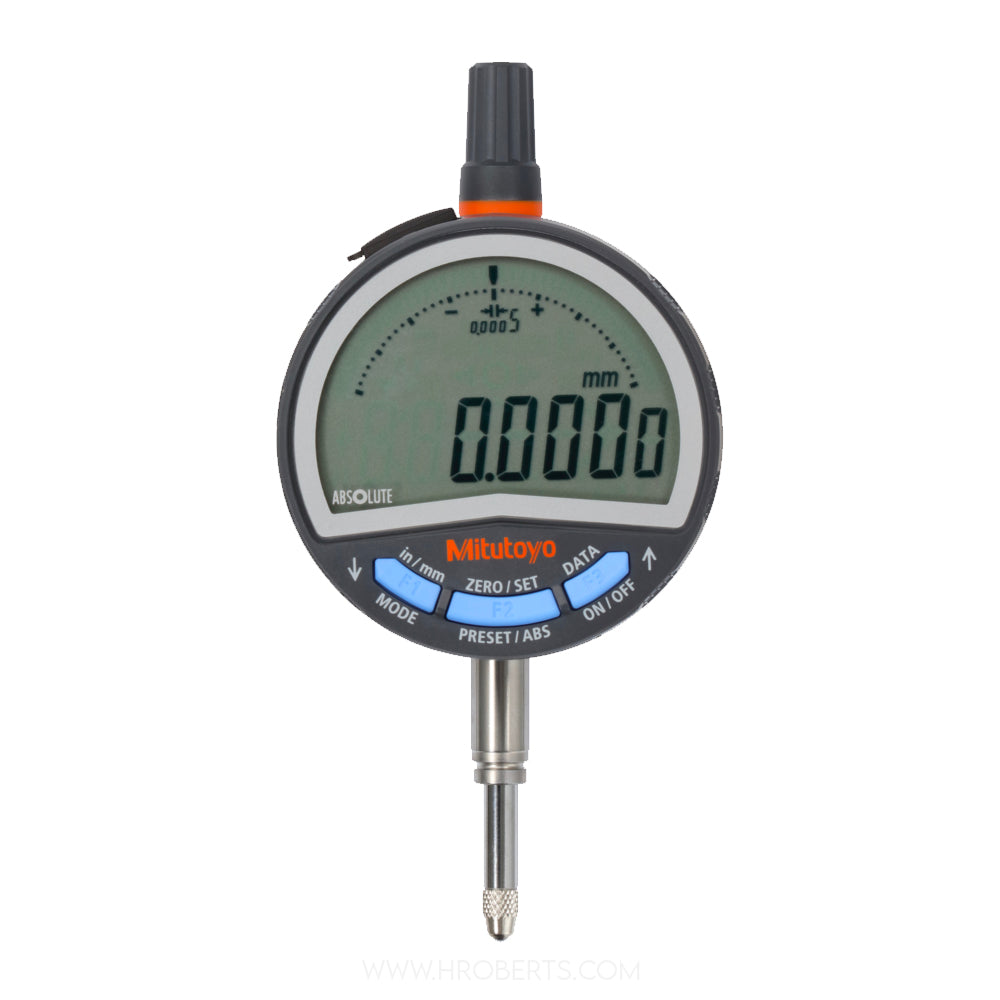

Mitutoyo 543-701 (Centre Lug) Absolute Digimatic Digital Indicator ID-CNX, Range 0.5" / 12.7mm, Resolution 0.0005", 0.0001", 0.00005", 0.00002" / 0.01mm, 0.001mm, 0.0005mm ( Selectable )
SKU:Code: 543-701
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.0005"/ 0.0001"/ 0.00005"/ 0.00002" / 0.01mm/ 0.001mm/ 0.0005mm
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Centre Lug
Mitutoyo 543-701 Absolute Digimatic Digital Indicator (ID-CNX) – 0.5" / 12.7mm, Selectable Resolutions
The Mitutoyo 543-701 Absolute Digimatic Digital Indicator (ID-CNX) is a high-precision measurement tool designed for versatile use in quality control, inspection, and process monitoring applications. Its advanced Absolute Digimatic system offers selectable resolutions, allowing you to tailor the display to suit different measurement tasks with precision and ease.
With a compact form factor and reliable digital performance, this indicator delivers clear readings and dependable results. Its robust construction and user-friendly design make it a practical choice for workshop, inspection, and production environments.
Key Features
- ABSOLUTE Digimatic system with selectable resolutions
- Measuring range of 0.5" / 12.7mm
- Selectable resolutions including 0.0005", 0.0001", 0.00005", 0.00002" / 0.01mm, 0.001mm, 0.0005mm
- Large, clear LCD display for easy reading
- Compact, ergonomic design
- Data output for SPC and measurement recording
- Dual inch and metric measurement capability
- Durable construction for workshop reliability
Applications
- Quality control and inspection
- Comparative measurement
- Machine shop and fabrication work
- SPC and process monitoring
Why Choose the Mitutoyo 543-701
The Mitutoyo 543-701 Absolute Digimatic Digital Indicator combines precise measurement, selectable resolutions, and solid construction for dependable performance. Its flexible display options and data output capability make it a valuable tool for professionals who demand versatility and accuracy in routine measurement tasks.
