543-701B (Flat Back) Absolute Digimatic Digital Indicator ID-CNX, Range 0.5" / 12.7mm, Resolution 0.0005", 0.0001", 0.00005", 0.00002" / 0.01mm, 0.001mm, 0.0005mm ( Selectable )
SKU:Code: 543-701B
Sale
Sold out
Regular price
£255.00
Save: 27%
Sold out
Sale price
£255.00
Regular price
£346.00
Excl. VAT
With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.0005"/ 0.0001"/ 0.00005"/ 0.00002" / 0.01mm/ 0.001mm/ 0.0005mm
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Flatback
description
description
With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off. This range includes models with resolution switchable down to 0.5µm. On-screen calibration reminder. Easy-to-read large back-lit LCD readout with a character height of 11 mm and an analogue scale. A newly designed data port allows for bi-directional communication. With the addition of the appropriate data cable, parameters, remote zeroing, and presetting can all be implemented from a connected PC.

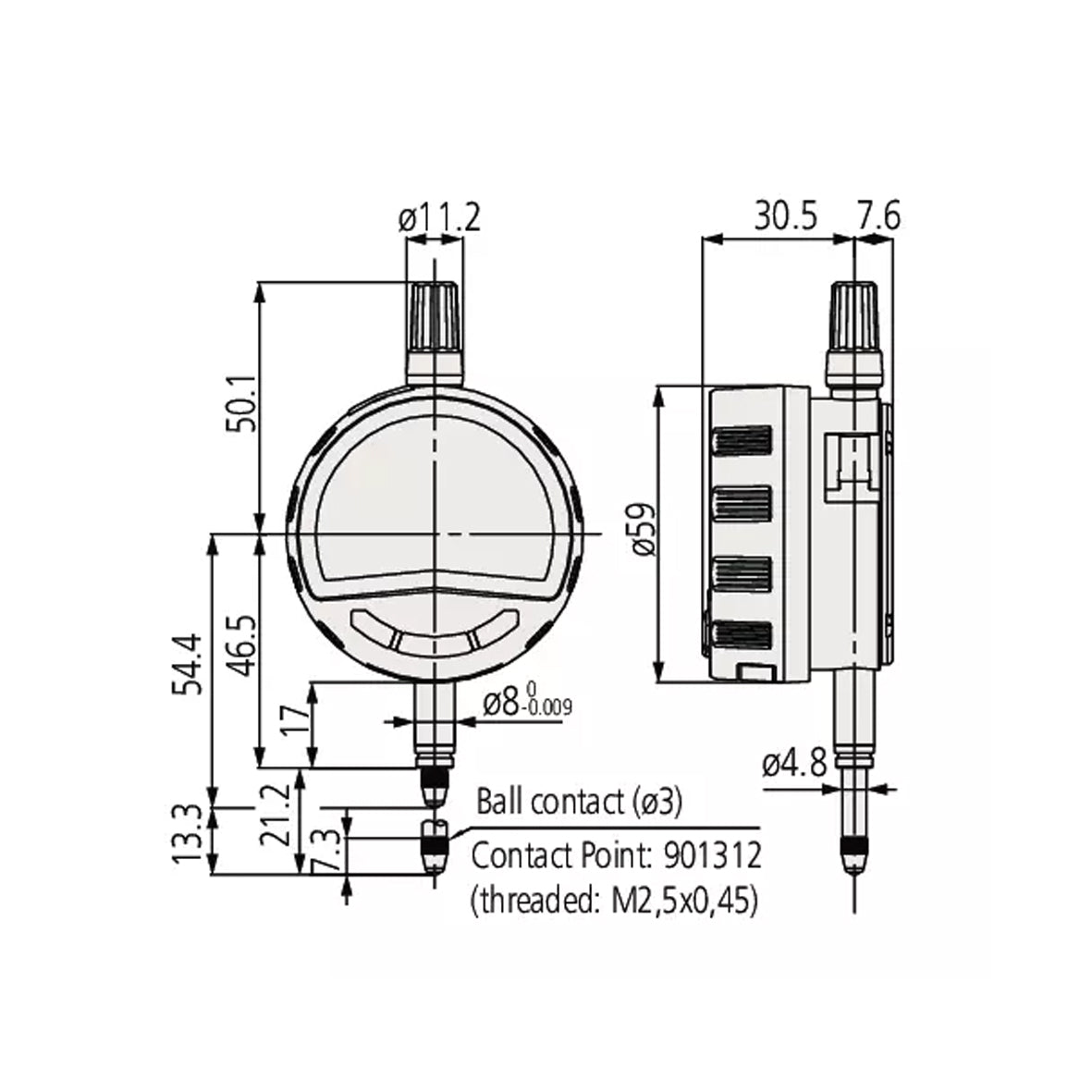

technical drawings
PDF downloads
accessories
