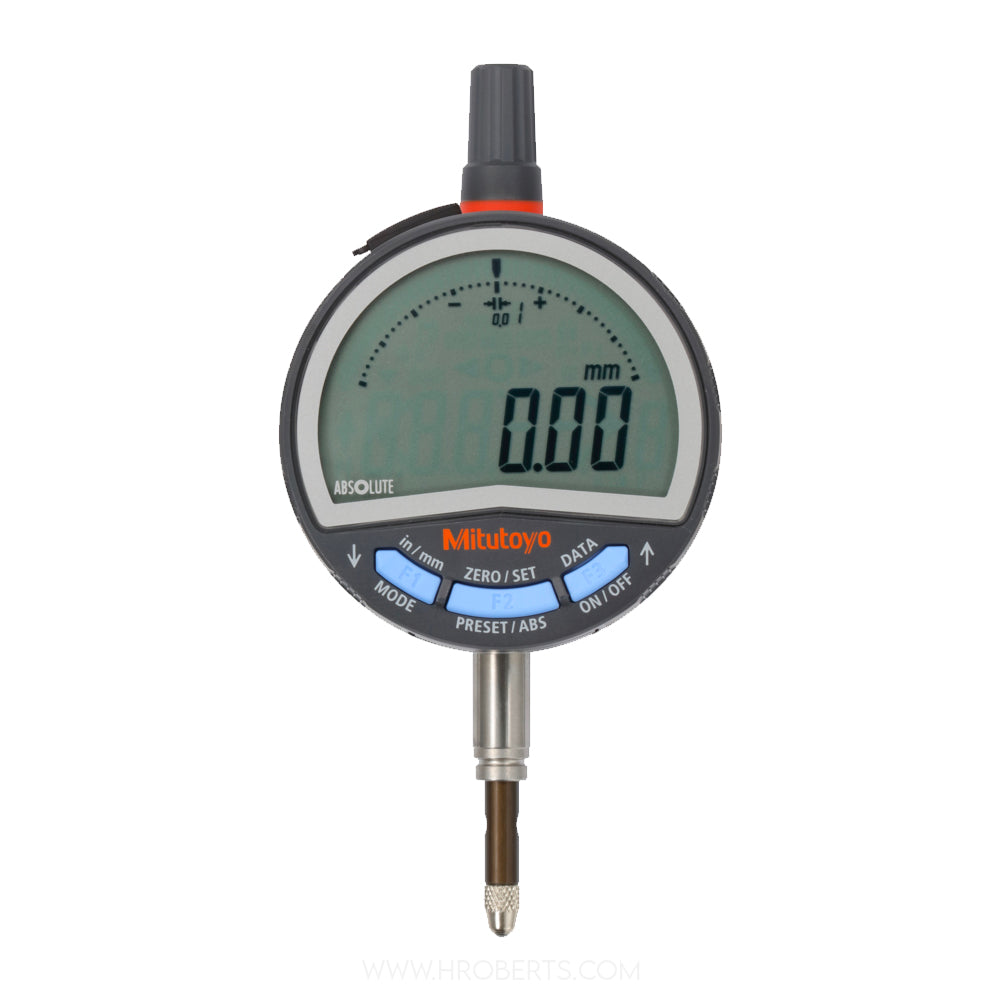

Mitutoyo 543-715B Absolute Digimatic Digital Indicator ID-CNX, Range 12.7mm, Resolution 0.01mm

SKU:Code: 543-715B

Sale Sold out Regular price £253.50
Save: 25% Sold out Sale price £253.50 Regular price £338.00
Excl. VAT
With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • range 12.7mm
  • display type Digital
  • resolution 0.01mm
  • data output Yes
  • measuring units Imperial / Metric
  • stem dia 8mm
  • contact point thread M2.5 x 0.45
  • back Flatback
  • brand Mitutoyo
description


This is a multifunction standard indicator that is reliable and easy to use.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Model with 0,5 µm digital step is available.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
