Mitutoyo 543-782-10 Absolute Digimatic Digital Indicator ID-SX, Range 0.5" / 12.7mm, Resolution 0.0005" / 0.01mm
SKU:Code: 543-782-10
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- range 0.5" / 12.7mm
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- ip rating IP42
- measuring units Imperial / Metric
- stem dia 8mm
- contact point thread M2.5 x 0.45
- back Centre Lug

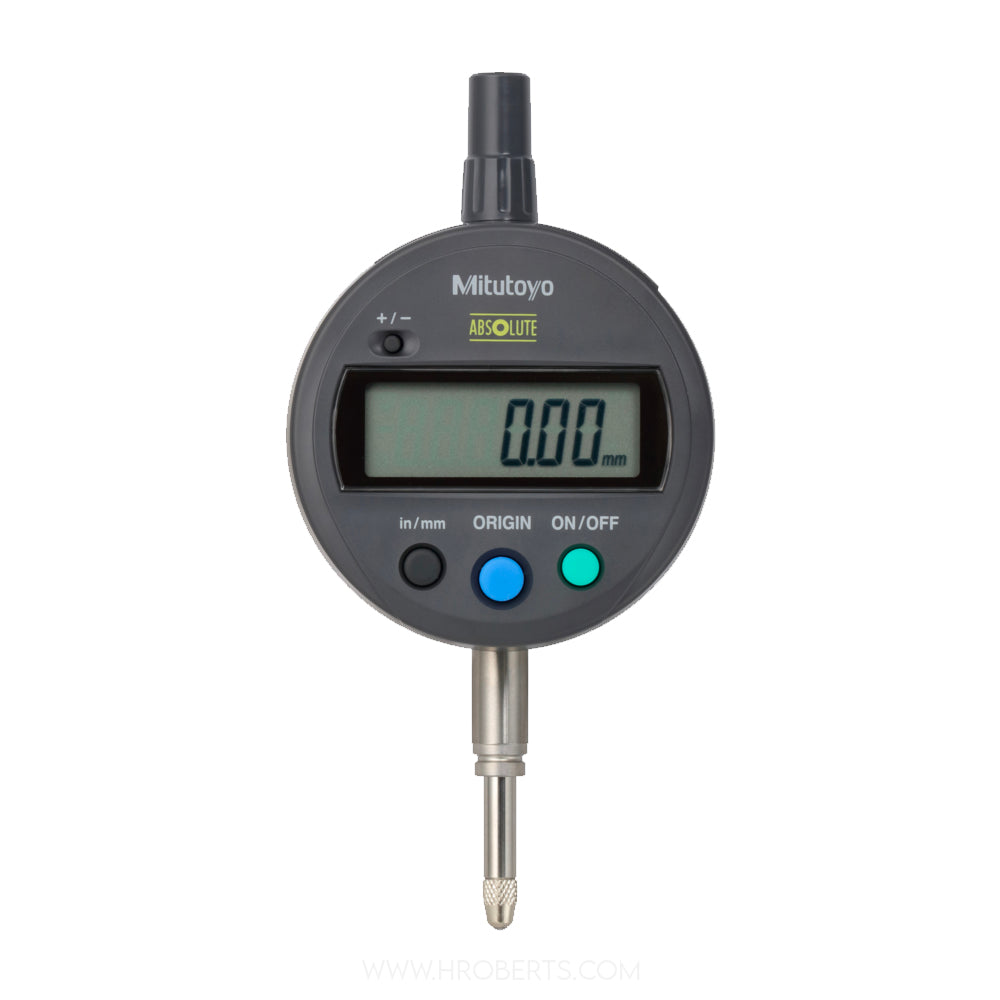

Mitutoyo 543-782-10 Absolute Digimatic Digital Indicator (ID-S) – 0.5" / 12.7mm, 0.0005" / 0.01mm
The Mitutoyo 543-782-10 Absolute Digimatic Digital Indicator is a compact and reliable precision measuring instrument designed for inspection and comparative measurement tasks. It delivers clear digital readings and dependable performance in both workshop and quality control environments.
Equipped with Mitutoyo’s ABSOLUTE linear encoder technology, the indicator automatically restores the origin position when powered on, reducing setup time and improving consistency across repeated measurements.
Key Features
- ABSOLUTE linear encoder eliminates the need for repeated origin setting
- Measuring range of 0.5" / 12.7mm
- Resolution of 0.0005" / 0.01mm
- Large, easy-to-read LCD display
- Long battery life for extended operation
- Data output port for SPC and quality control systems
- Dual inch and metric measurement capability
- Compact, ergonomic design with intuitive controls
- Robust construction for reliable workshop use
Applications
- Quality control and inspection
- Comparative measurement tasks
- Machine shop and fabrication work
- SPC and process monitoring
Why Choose the Mitutoyo 543-782-10
The Mitutoyo 543-782-10 offers precise digital indication combined with simple operation and SPC compatibility. Its ABSOLUTE encoder ensures reliable origin positioning, while the clear display and durable construction make it a dependable choice for repeated measurement tasks in professional environments.
