Mitutoyo

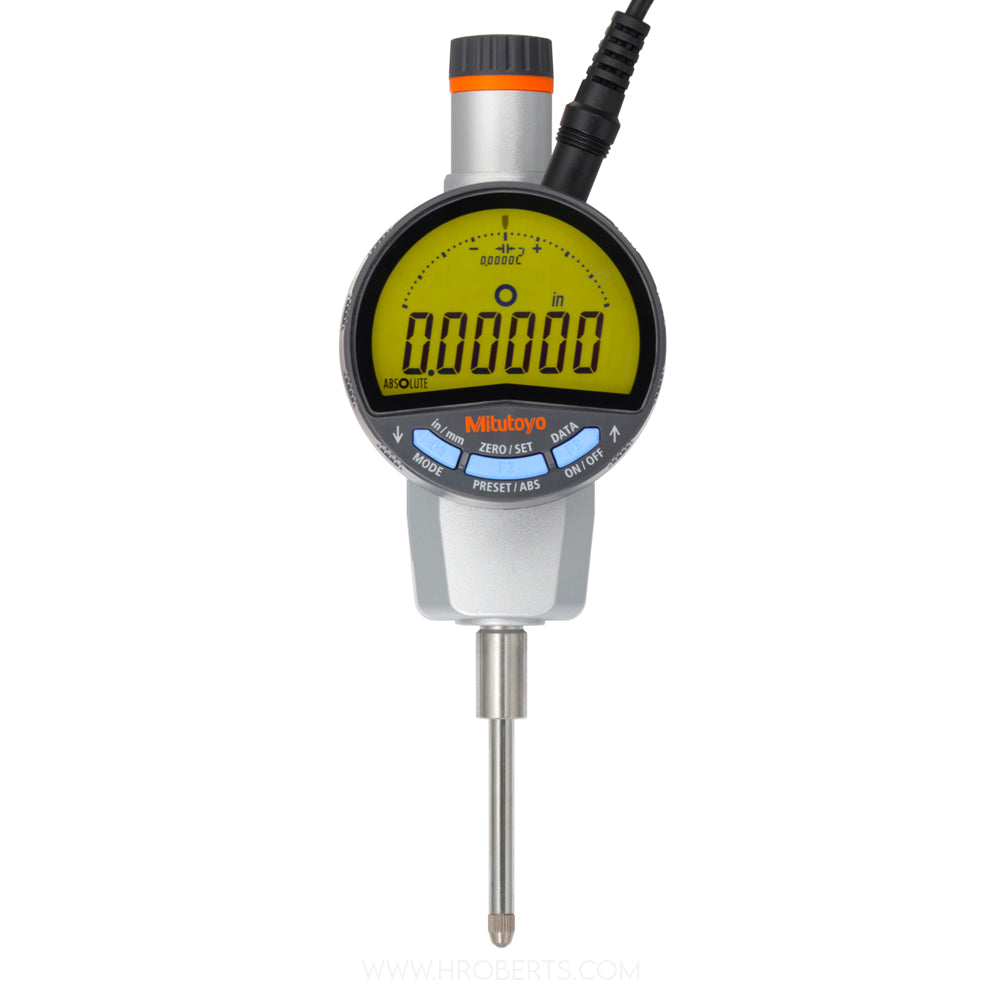

543-852E Absolute Digimatic Digital Multi-Function Indicator ID-FNX, Range 1" / 25.4mm, Resolution 0.001", 0.0005", 0.0001", 0.00005", 0.00002" / 0.01mm, 0.001mm, 0.0005mm ( Selectable )
SKU:Code: 543-852E
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range 1" / 25.4mm
- display type Digital
- resolution 0.001" / 0.0005"/ 0.0001"/ 0.00005"/ 0.00002" / 0.01mm/ 0.001mm/ 0.0005mm
- measuring units Imperial / Metric
- stem dia 0.375"
- contact point thread 4-48UNF
- back Flatback
With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off. Improved resolution switchable down to 0.5 µm. On-screen calibration reminder. Easy-to-read large back-lit LCD readout with a character height of 11 mm and an analogue scale. A newly designed data port allows for bi-directional communication. With the addition of the appropriate data cable, parameters, remote zeroing, and presetting can all be implemented from a
connected PC. External power supply type: battery change is not necessary. Power is supplied via the AC adapter supplied as a standard accessory.
