Images are for illustration purposes only - Products may differ.
Mitutoyo

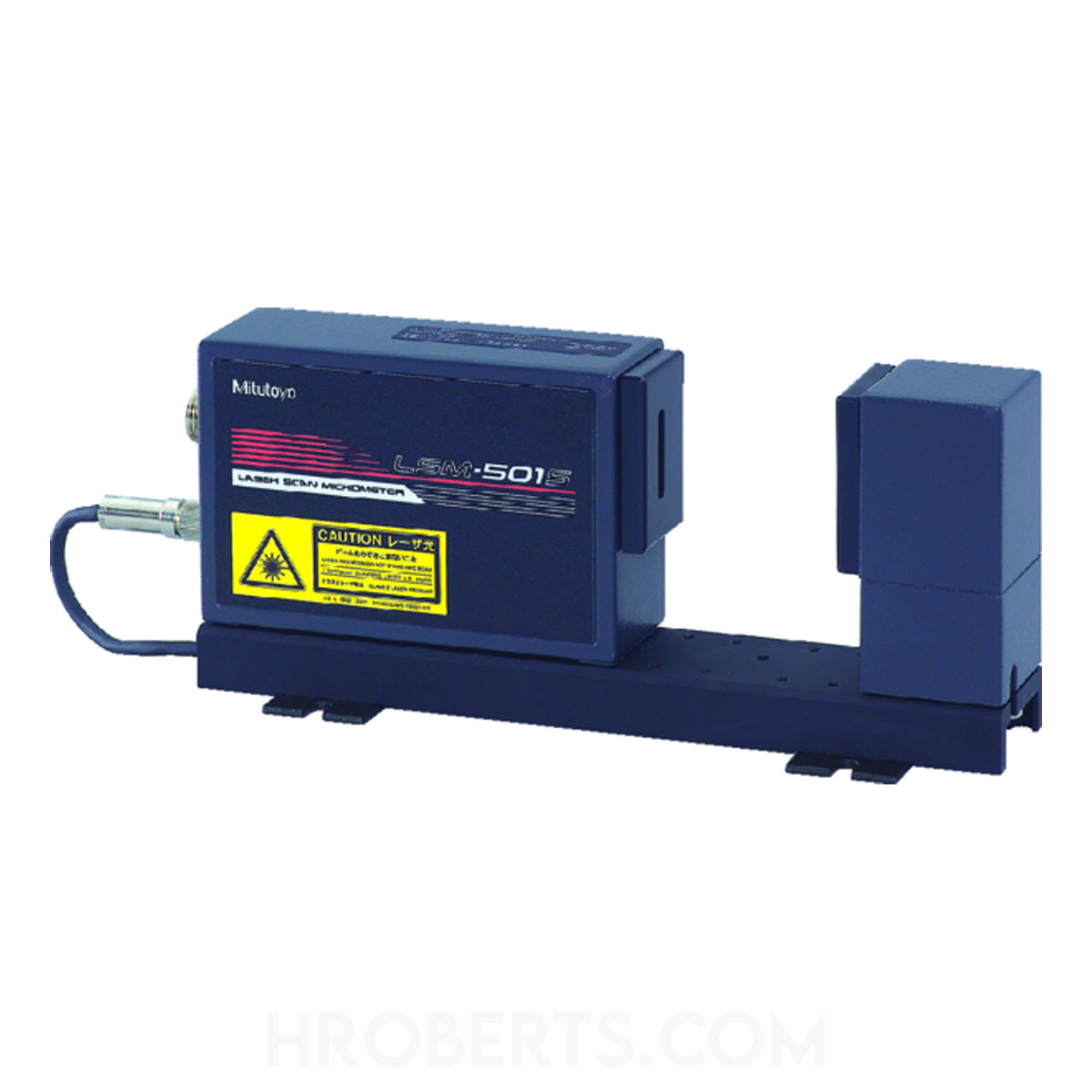

544-534 LSM-501S Ultra-High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 0.05-10mm / 0.002-0.4", Resolution 0.00001-0.01mm / 0.000001-0.0005"
SKU:Code: 544-534
Sale
Sold out
Regular price
£4,980.00
Save:
Sold out
Sale price
£4,980.00
Regular price
£4,980.00
Excl. VAT
Provides ultra-high accuracy of ±0.5 μm over the entire measuring range (0.05 mm to 10 mm) and even better in the narrow range. Ultra-high repeatability of 0.04 μm.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.05-10mm / 0.002-0.4"
- display type Digital
- graduations 0.00001-0.01mm / 0.000001-0.0005"
- measuring units Metric / Imperial
- measuring region 2 x 10 mm (ø0.05 - ø0.1 mm) 4 x 10 mm (ø0.1 - ø10 mm)
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 113 m/s
description
description
High Accuracy Non-contact measuring system
Provides ultra-high accuracy with a linearity of ±0,5 μm over the entire measuring range (0,05 mm to 10 mm) and ±(0,3+0,1ΔD) μm in the narrow range.
Ultra-High repeatability of ±0,04 μm.
High scanning rate of 3200 scans/s
