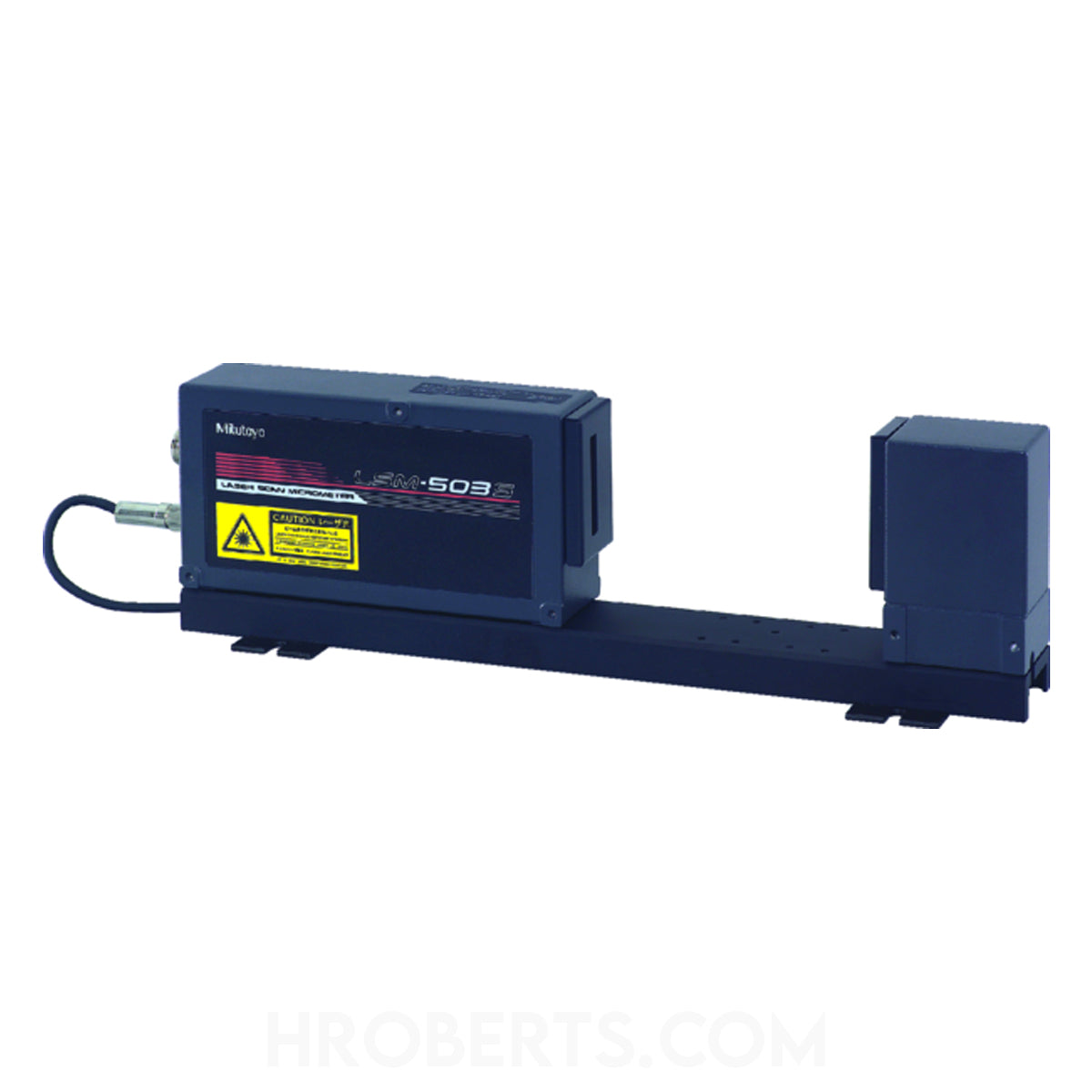

Mitutoyo 544-536 LSM-503S Ultra-High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 0.3-30mm / 0.012-1.18", Resolution 0.00002-0.1mm / 0.000001-0.005"
SKU:Code: 544-536
This item is no longer available or has been discontinued.
General-purpose type with a measuring range of 0.3 mm to 30 mm. Provides ultra-high accuracy of ±1.0 μm over the entire measuring range and even better in the narrow range. Excellent repeatability of 0.11 μm.
Need more information? Ask a question or contact us.
Specification
Specification
- range 0.3-30mm / 0.012-1.18"
- display type Digital
- graduations 0.00002-0.1mm / 0.000001-0.005"
- measuring units Metric / Imperial
- measuring region 10 x 30 mm
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 226 m/s
- brand Mitutoyo
description
description
High Accuracy Non-contact measuring system
General-purpose type with a measuring range of 0,3 mm to 30 mm.
Provides high accuracy with a linearity of ±1,0 μm over the entire measuring range and ±(0,6+0,1ΔD) μm in the narrow range.
Excellent repeatability of ±0,1 μm.
High scanning rate of 3200 scans/s.
