Mitutoyo

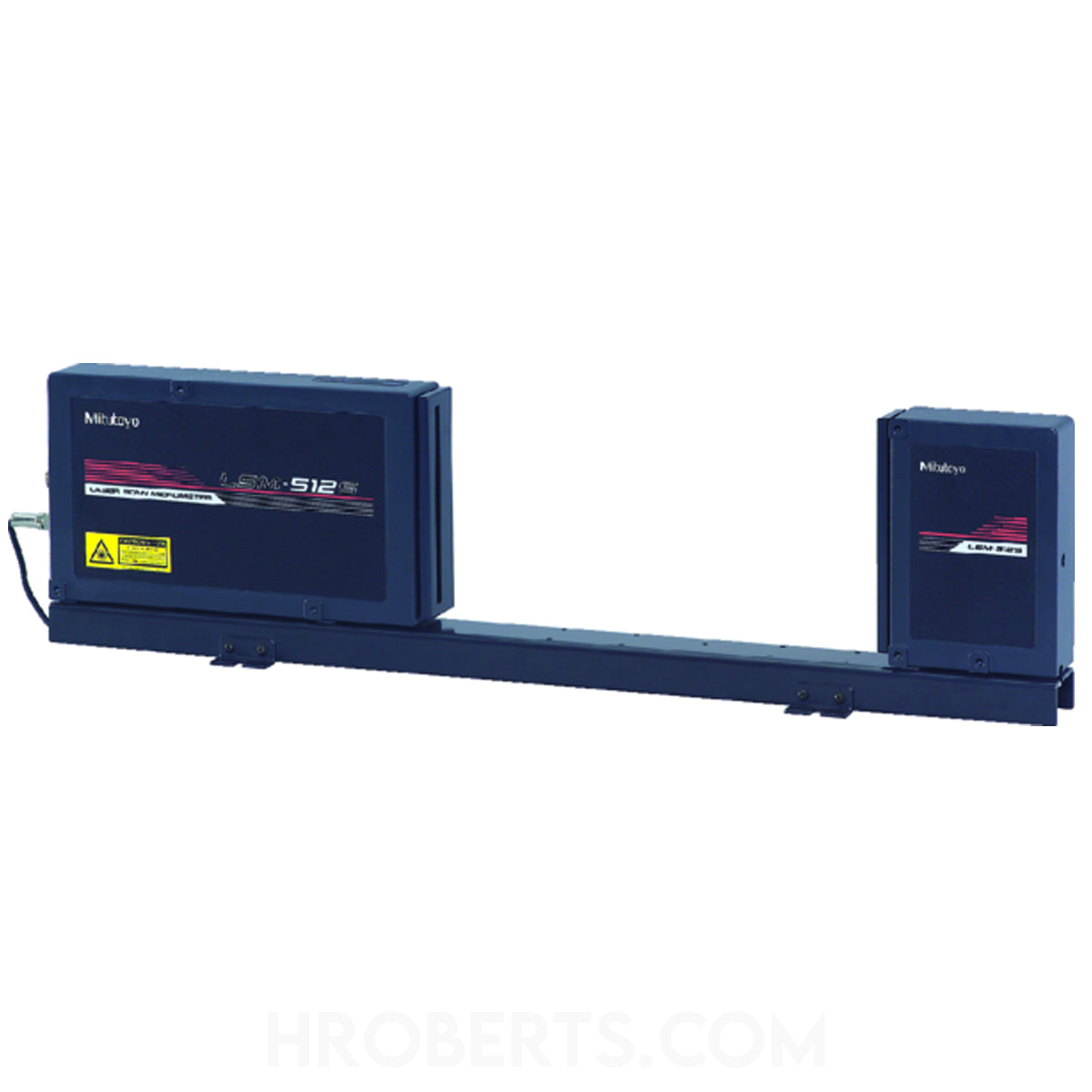

544-540 LSM-512S High Accuracy Non-Contact Measuring System, Laser Scan Micrometer, Range 1-120mm / 0.04-4.72", Resolution 0.0001-0.1mm / 0.000005-0.005"
SKU:Code: 544-540
This item is no longer available or has been discontinued.
General-purpose type with a measuring range of 1 mm to 120 mm. Provides high accuracy of ±6.0 μm over the entire measuring range and even better in the narrow range. Excellent repeatability of 0.8 μm.
Need more information? Ask a question or contact us.
Specification
Specification
- range 1-120mm / 0.04-4.72"
- display type Digital
- graduations 0.0001-0.1mm / 0.000005-0.005"
- measuring units Metric / Imperial
- measuring region 30 x 120 mm
- laser wavelength 650 nm visible
- scanning rate 3200 scans/s
- laser scanning speed 904 m/s
description
description
High Accuracy Non-contact measuring system
General-purpose type with a wide measuring range of 1 mm to 120 mm.
Provides high accuracy with a linearity of ±6 μm over the entire measuring range and ±(4,0+0,5ΔD) μm in the narrow range.
Excellent repeatability of ±0,8 μm.
High scanning rate of 3200 scans/s
