Mitutoyo

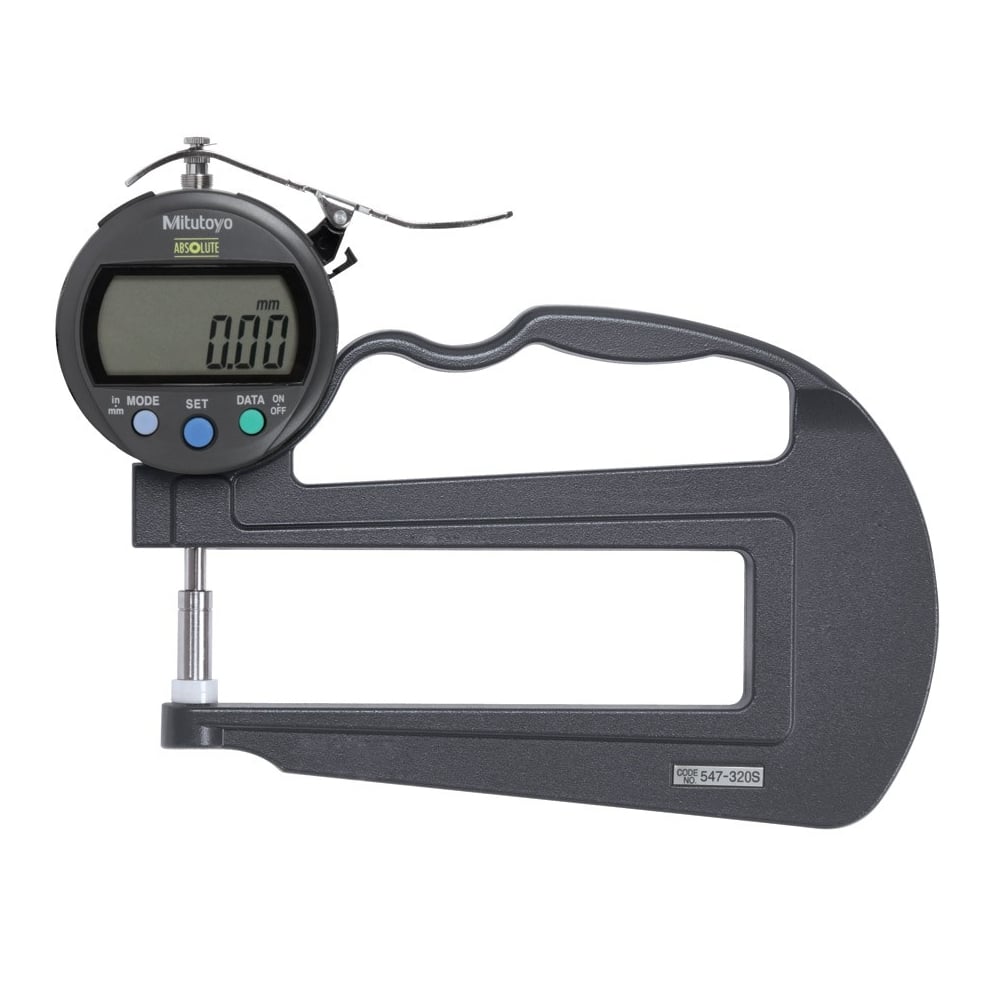

547-320S Digimatic Digital Thickness Gauge, Range 0-10mm / 0-0.4", Resolution 0.01mm / 0.0005"

SKU:Code: 547-320S

This item is no longer available or has been discontinued.

Dial Thickness Gauges are used for measuring the thickness of a very wide range of materials
View full details
Specification
  • type Dial Thickness Gauges
  • range 0-10mm / 0-0.4"
  • display type Digital
  • resolution 0.01mm / 0.0005"
  • accuracy ±0.001" / ±20 μm
  • bezel dia 59mm
  • data output Yes
  • measuring force 1.5 N or less
  • measuring units Metric / Imperial
  • stem dia 8mm
  • throat depth 120mm / 4.72"
  • remarks Deep throat
  • contact point 10mm Diameter
description

Dial thickness gauges can quickly measure the thickness of thin products such as paper and felt. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face. Data output port that enables incorporation into measurement networking and statistical process control systems. Tube thickness measurement type Pipe wall thickness and the thickness of curved boards can be measured. Lens thickness measurement type Thickness of concave-convex lenses and surfaces can be measured. Anvils and contact points are interchangeable to enable concave surfaces to be measured. Provided with a ball point. Groove depth measurement type Suitable for measuring narrow grooves. Measuring face of the contact point and anvil are blade-shaped (thickness: 1 mm).
