Specification
Specification
- type Carbon Fibre Interchangable Jaws
- range 0-600mm / 0-24"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- ip rating IP66
- measuring units Metric / Imperial
description
description

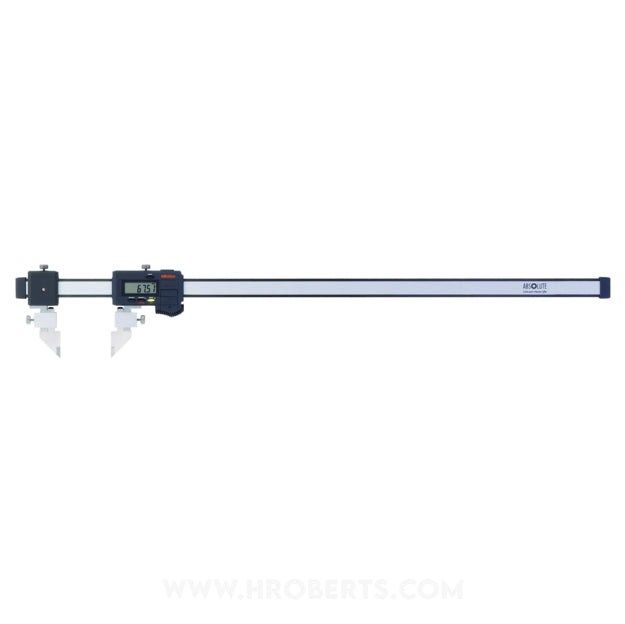

A lightweight Digimatic caliper that uses CFRP (Carbon Fibre Reinforced Plastics) in the beam and jaws. Provided with preset function for setting a desired starting point, which allows direct readout of offset measurement. The range of applications can be expanded by using interchangeable jaws (optional). Data output function allows integration into statistical process control and measurement systems.
