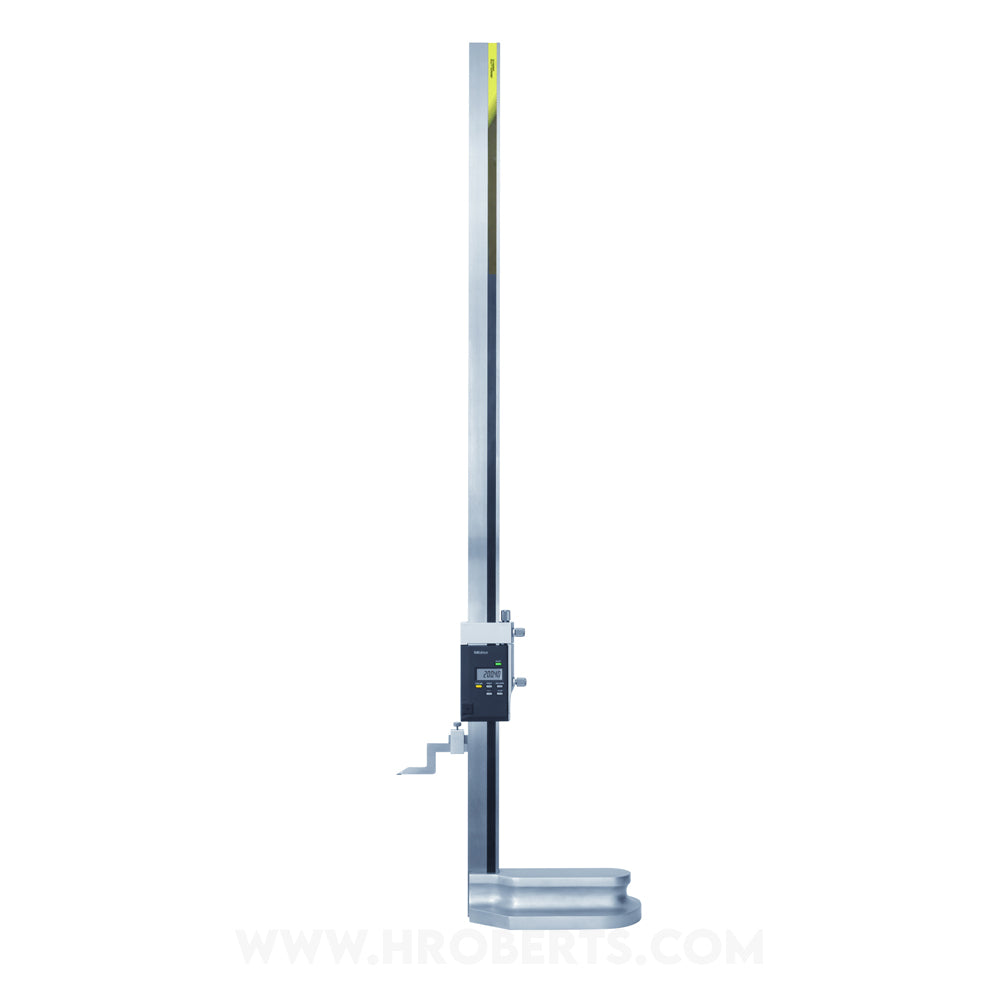

Mitutoyo 570-248 Absolute Digimatic Digital Height Gauge, Range 0-1000mm / 0-40", Resolution 0.01mm / 0.0005"
SKU:Code: 570-248
Sale
Sold out
Regular price
£2,190.00
Save: 25%
Sold out
Sale price
£2,190.00
Regular price
£2,920.00
Excl. VAT
ABS and INC measurement modes allow efficient operation.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Scribing
- range 0-1000mm / 0-40"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- measuring units Metric / Imperial
- repeatability 6mm (0.24")
- zero setting Yes
- preset function Yes
- data hold Yes
- origin seting Yes
- alarm Yes
- max permissible error EMPE ±0.07mm (±0.0030")
- repeatability 6mm (0.24")
description
description
Rigid structure makes instrument suitable for use in severe work environments. The +/- measurement function widens the application range. Allows integration into statistical process control and measurement systems. Carbide-tipped scriber (05GZA033) is provided as a standard accessory.
| Model: |
HDS-40”C
|
| Digital/Analog: |
Digital
|
| Range: |
0 - 40 "
|
| Digital step: |
0.0005"/0.01 mm
|
| Max. Permissible Error E MPE: |
±0,003"/±0,07 mm
|
| Max. Permissible Error J MPE: |
±0.07 mm/0.003"
|
| Scale: |
ABSOLUTE electrostatic linear encoder
|
| Display: |
LCD, 6-digit
|
| Max. response speed: |
Unlimited
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| PRESET: |
Yes
|
| ORIGIN (ABS-Zero): |
Yes
|
| DATA (output with cable) / HOLD (display value): |
Yes
|
| Low voltage alarm: |
Yes
|
| ±SWITCHING: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 5000 hours
|
| Delivered: |
In a carton box, with carbide tipped scriber, scriber clamp, SR44 battery
|
| Mass: |
16.8 kg
|

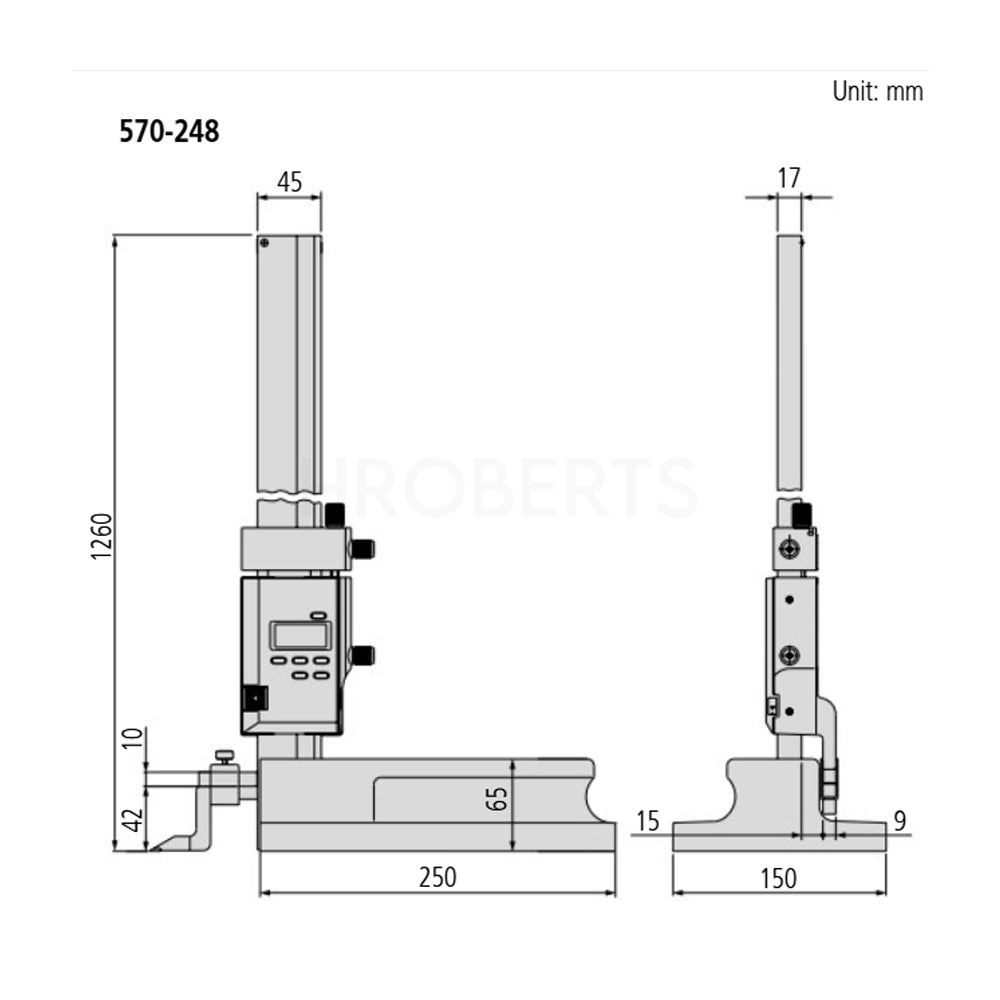

technical drawings
PDF downloads
accessories
