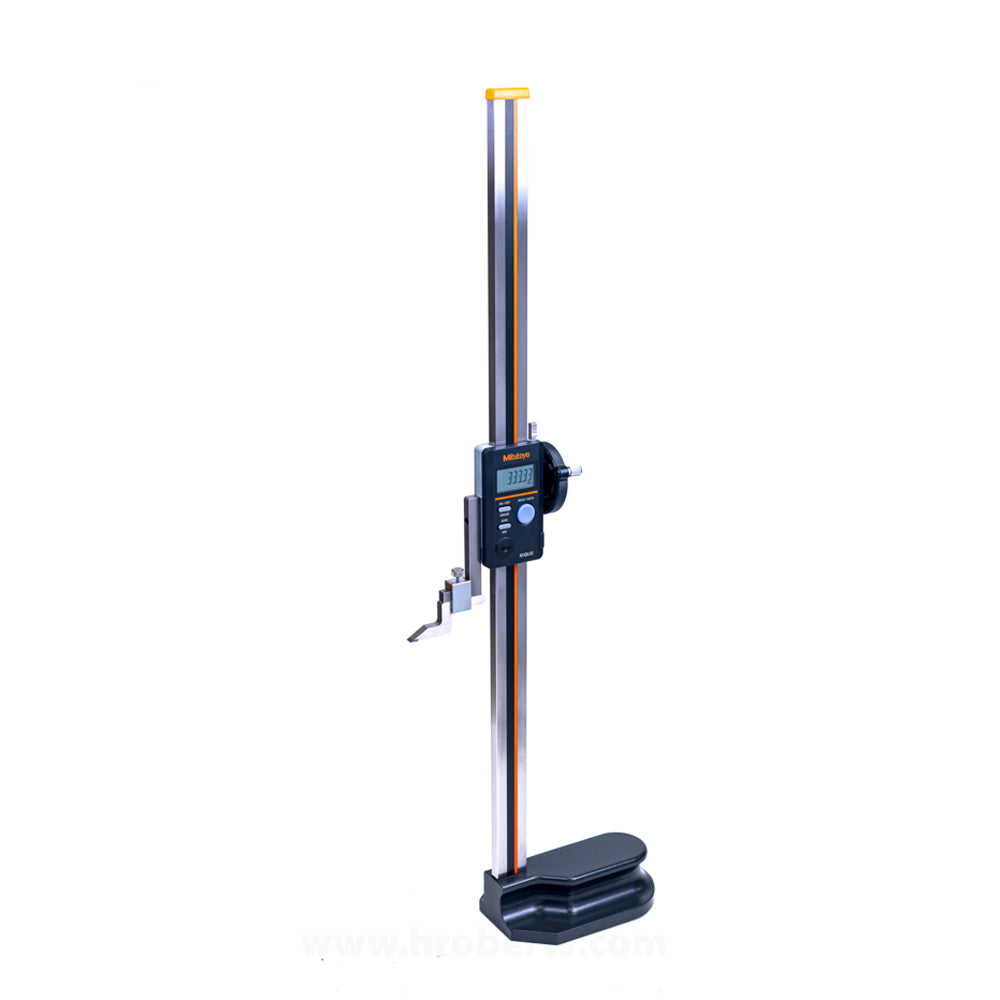

570-414 Absolute Digimatic Digital Height Gauge, Range 0-600mm / 0-24", Resolution 0.01mm / 0.0005"

SKU:Code: 570-414

Sale Sold out Regular price £825.00
Save: 25% Sold out Sale price £825.00 Regular price £1,100.00
Excl. VAT
Allows smooth elevation by the slider adjustment wheel, which is the same type used on the well established double-column height gauge.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Scribing
  • range 0-600mm / 0-24"
  • display type Digital
  • resolution 0.01mm / 0.0005"
  • data output Yes
  • measuring units Metric / Imperial
  • abs measure system Yes
  • origin point setting Yes
  • data hold Yes
  • max permissible error EMPE ±0.05mm (±0.0020")

Large slider-clamp lever ensures positive and accurate clamping action. The 12 mm high character display (20% bigger than the previous model) – makes it easier to read the measured values. Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON. Allows integration into statistical process control and measurement systems. The 3-button operation makes it consistent with other Mitutoyo devices. And when used together with U-WAVE, it makes data management operations easy.
