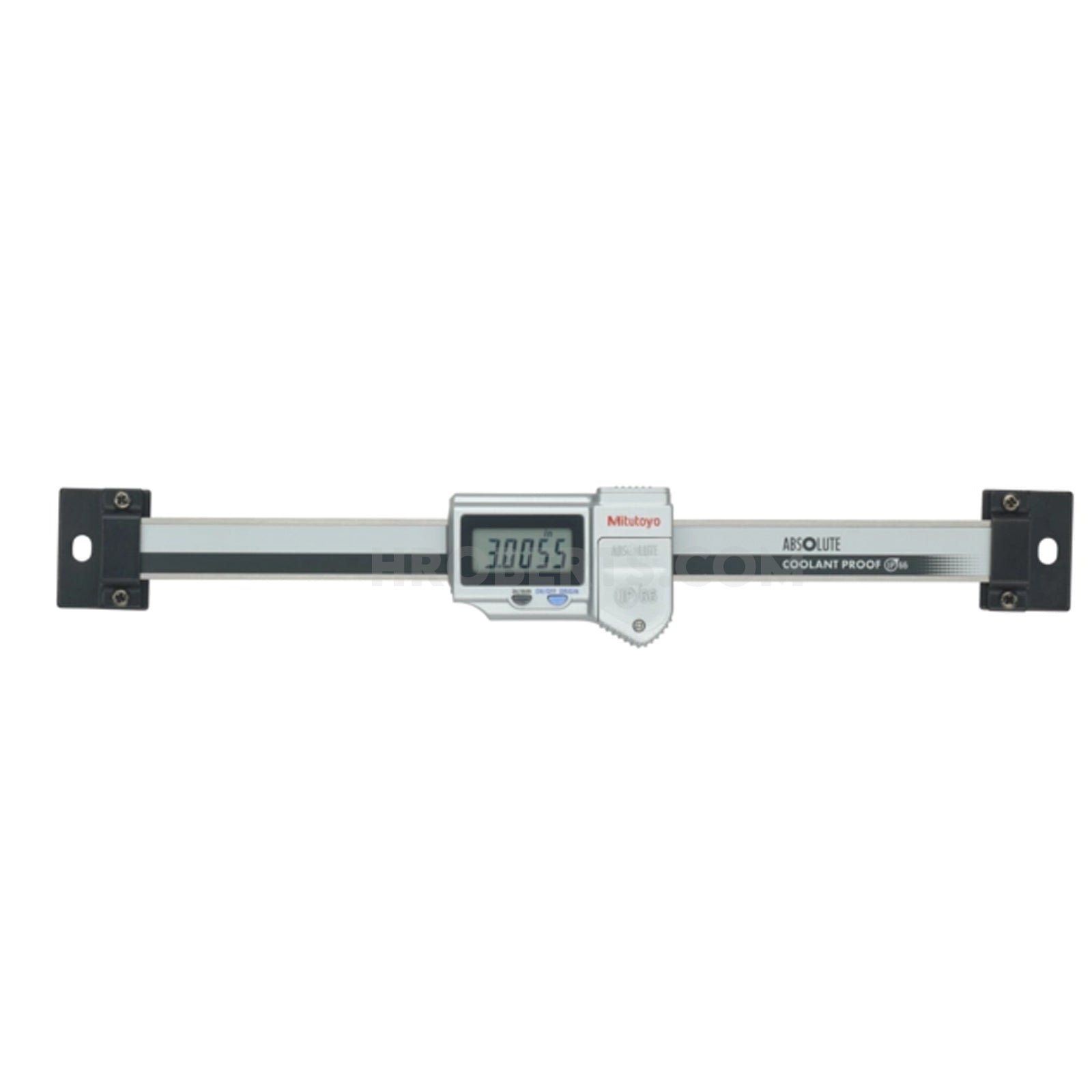

572-614 Range 0-6" / 0-150mm, Resolution 0.0005" / 0.01mm, Horizontal Digimatic Digital Scale, Coolant Proof IP66

SKU:Code: 572-614

Sale Sold out Regular price £210.00
Save: 25% Sold out Sale price £210.00 Regular price £280.00
Excl. VAT
Functions: Origin-set, zero-setting, power on/off, presetting, data hold, data output, inch/mm conversion (inch/mm models)
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Scale Standard Coolant Proof
  • range 0-6" / 0-150mm
  • display type Digital
  • resolution 0.0005" / 0.01mm
  • accuracy 0.001" / 0.03mm
  • data output Yes
  • ip rating IP66
  • measuring units Imperial / Metric
  • abs measure system Yes
  • orientation Horizontal
  • dimension l1 259mm
  • dimension l2 235mm

A self-powered scale designed to capture positional coordinates from slides on machine tools and precision instruments; such as are incorporated in semiconductor production equipment, for example. The proprietary electromagnetic induction method used for detecting the position of the slider on the scale enables use in adverse environments subject to water and cutting oil mist and splashing. Specially designed output cables maintain the water resistant structure. No overspeed error since it uses an ABSOLUTE scale which does not depend on counting scale graduations. Once an absolute zero (origin) point is set, a Digimatic scale such as this always shows the absolute distance from this point when powered on rather than 0.00. With SPC data output.
