Specification
Specification
- type Offset Centerline
- range 10-160mm / 0.4-6.4"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- ip rating IP67
- measuring units Metric / Imperial
description
description

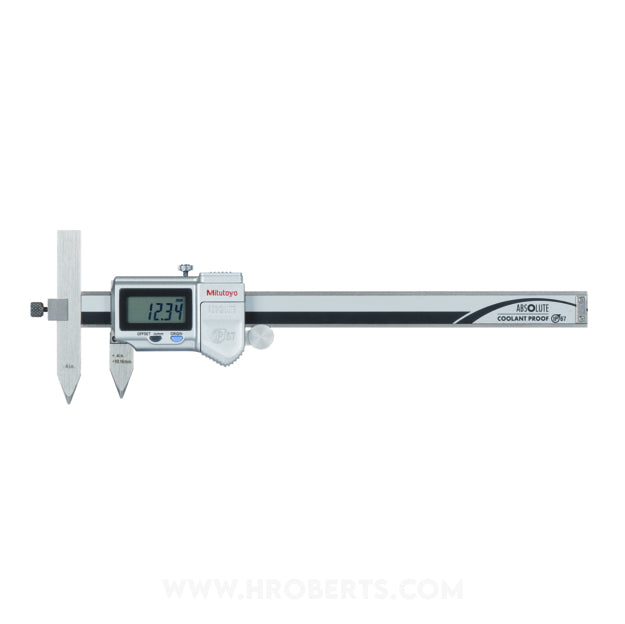

Specially designed for hole centre-to-centre measurements on the same, or offset, planes. Digimatic models feature Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on. Direct reading of pitch measurements is available due to the offset-value setting function.Digimatic models enable integration into statistical process control and measurement systems.
