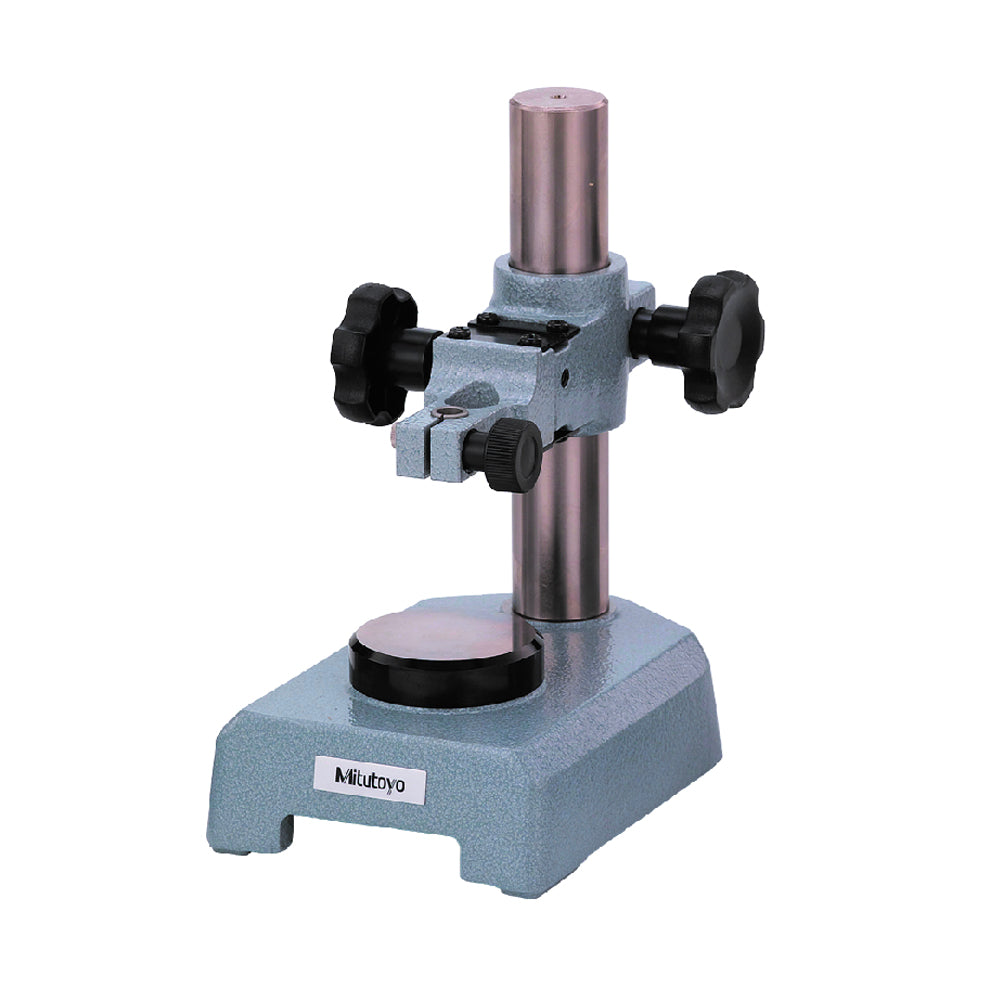

Mitutoyo 7002-10 Dial Gauge Stand, Column Travel 0-95mm, 58mm Dia Flat Anvil
SKU:Code: 7002-10
Sale
Sold out
Regular price
£400.50
Save: 25%
Sold out
Sale price
£400.50
Regular price
£534.00
Excl. VAT
Dial gauge stands are designed for comparison measurements of size using a dial indicator or Digimatic indicator. Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- type Dial Indicator Stand
- remarks With Flat Anvil 58mm Diameter
- column travel 0-95mm
- acceptable stem sizes Diameter 8mm 9.53mm 3/8"
- column style Plain
- column dia 30mm
- column length 160mm
- base flatness 1.3μm
description
description
| Effective table dimensions: |
Ø 58 mm
|
| Column Ø: |
30 mm
|
| Base size : |
168 x 110 mm
|
| Max. measurement height: |
95 mm
|
| Measuring table: |
Flat (101461)
|
| Fine adjustment: |
1 mm
|
| Stem hole ø: |
ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
|
| Perpendicularity table-stem hole: |
0,4/100 mm
|
| Table flatness: |
1,3 µm
|
| Mass: |
4 kg
|
| Delivered: |
In a carton box with flat measuring table, stem bush 21JAA316
|

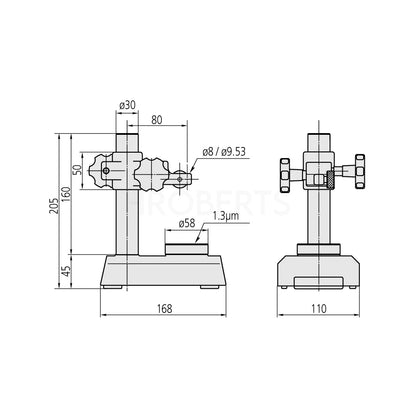

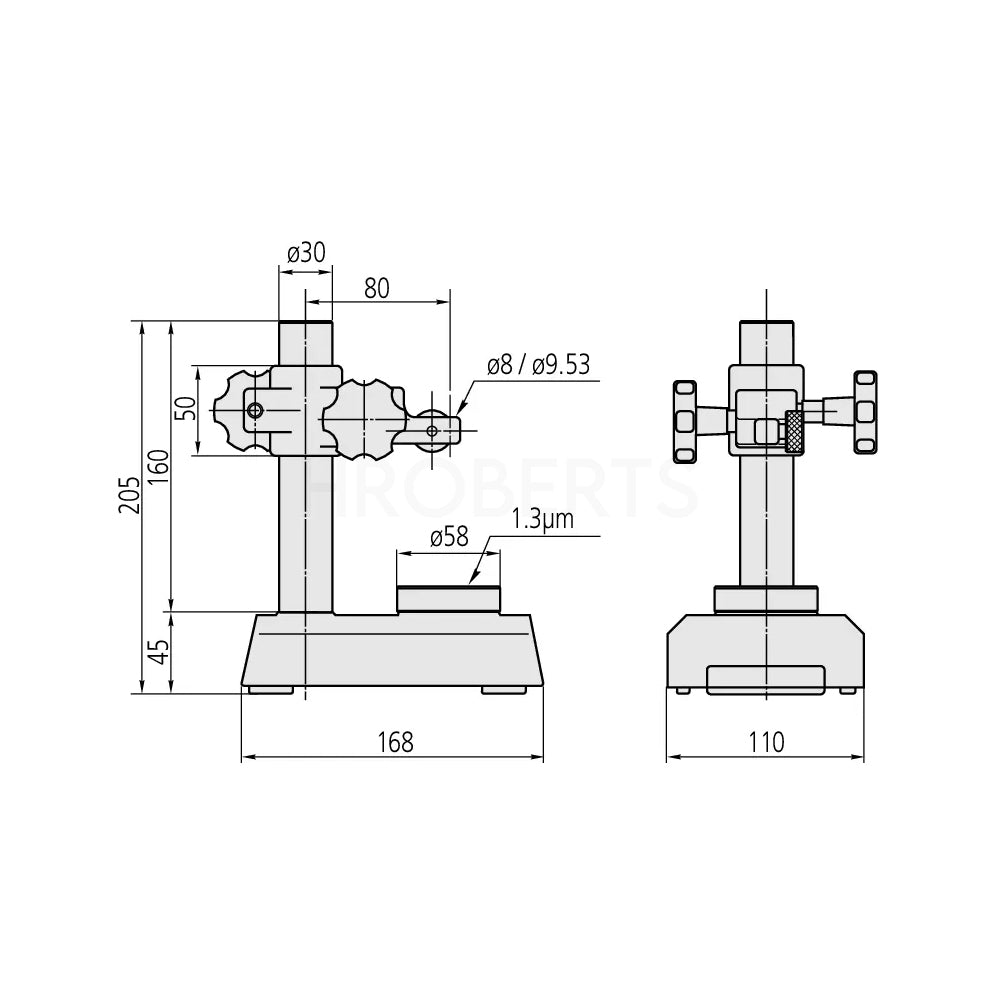

technical drawings
