Mitutoyo

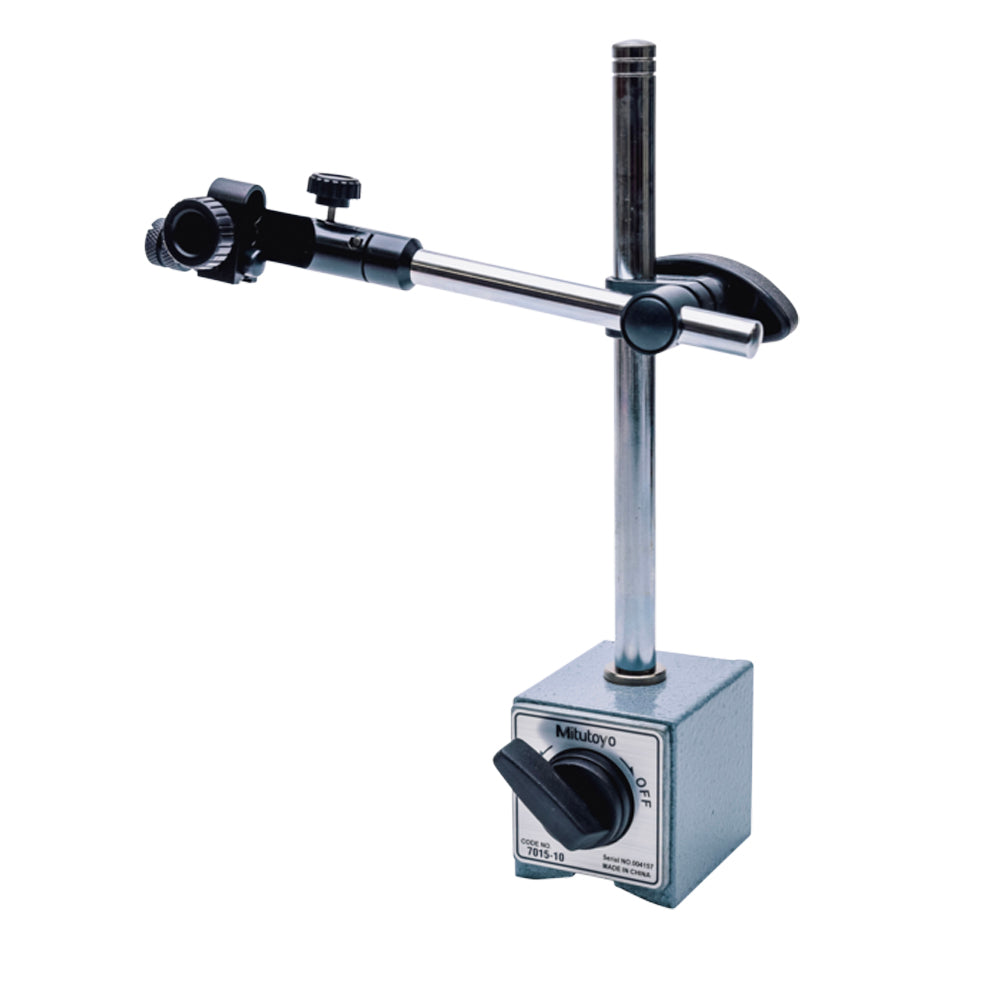

7015-10 Magnetic Stand
SKU:Code: 7015-10
Sale
Sold out
Regular price
£70.80
Save: 25%
Sold out
Sale price
£70.80
Regular price
£94.40
Excl. VAT
A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Magnetic Stand
- remarks With Fine Adjustment
- acceptable stem sizes Diameter 4mm 8mm 9.53mm 3/8"
- column length 177mm
- base magnetic force Approx 600 N
- working radius 170.5mm
description
description
Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications. A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever
