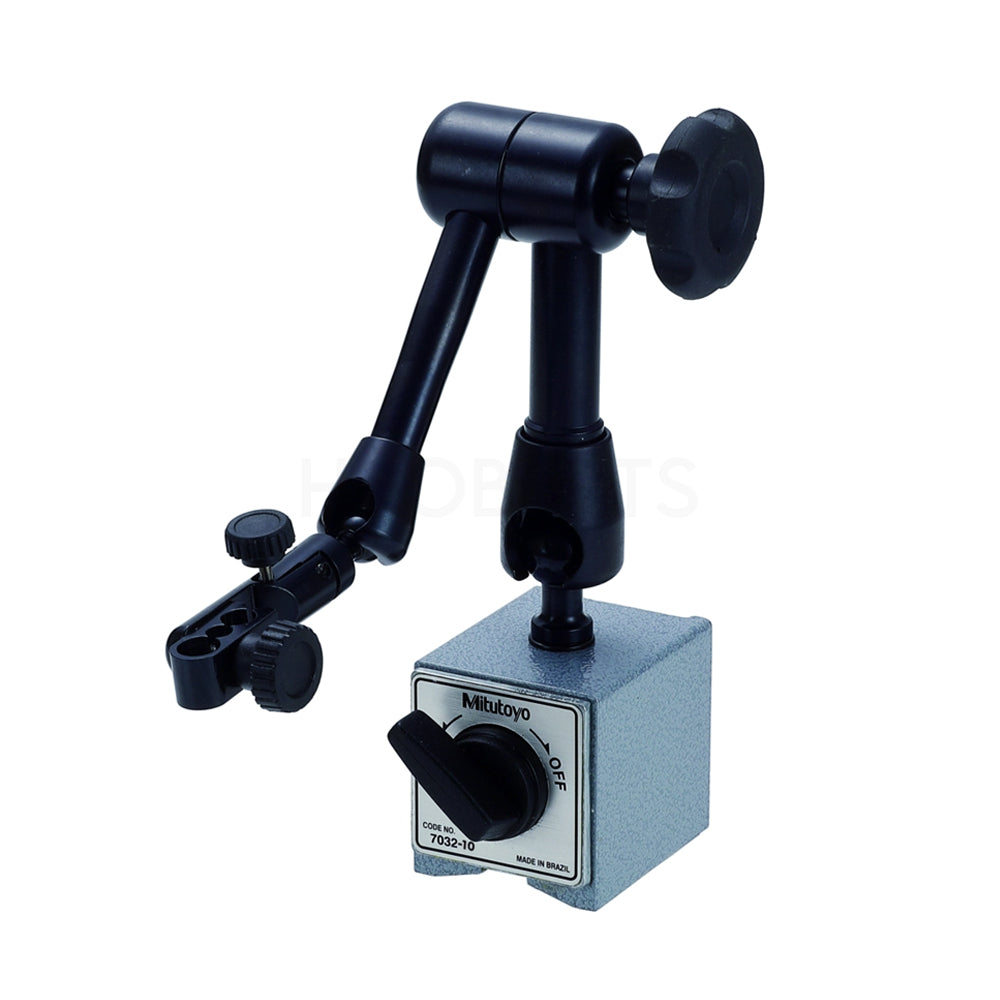

Mitutoyo 7032-10 Universal Magnetic Stand - 250mm Working Radius
SKU:Code: 7023-10
Sale
Sold out
Regular price
£325.50
Save: 25%
Sold out
Sale price
£325.50
Regular price
£434.00
Excl. VAT
This jointed magnetic stand offers you the following benefits: It comes with a mechanical locking system and allows fine adjustment. You can also fix a dial indicator in any position by mechanically clamping the articulated arm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type Magnetic Stand
- remarks With Mechanical Locking System
- acceptable stem sizes Diameter 6mm 8mm 9.53mm 3/8"
- base magnetic force Approx 600 N
description
description
Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications. A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever

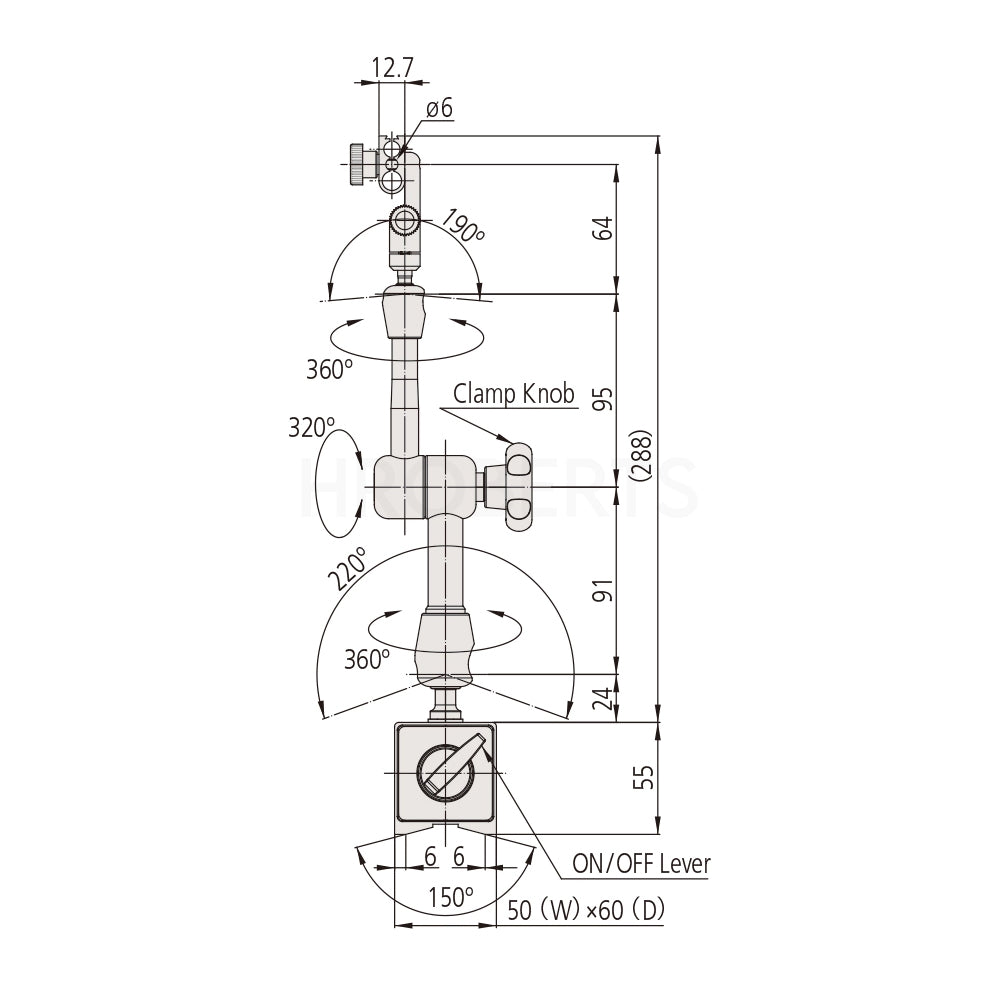

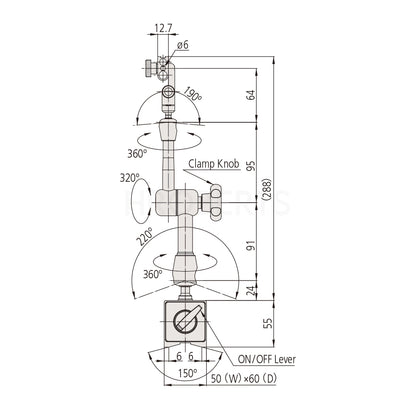

technical drawings
PDF downloads
accessories
