Images are for illustration purposes only - Products may differ.

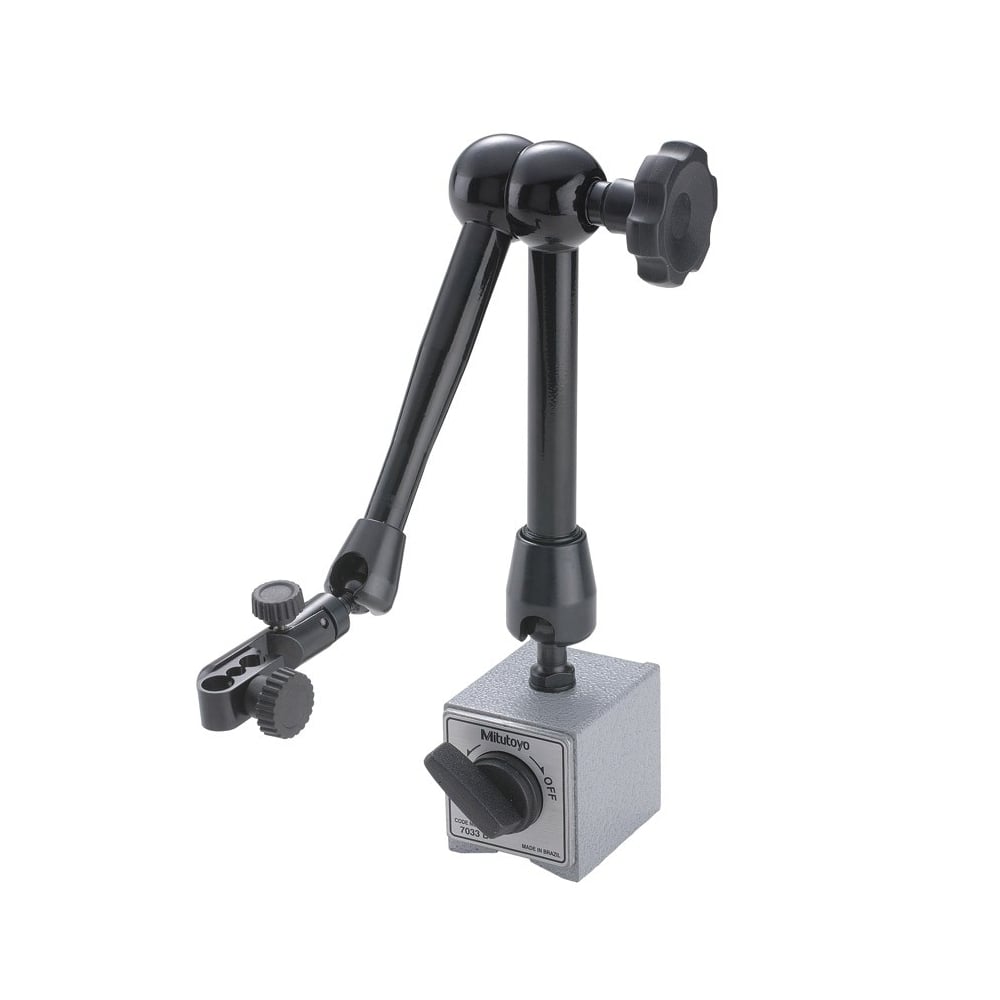

7033B Universal Magnetic Stand

SKU:Code: 7033B

This item is no longer available or has been discontinued.

This jointed magnetic stand offers you the following benefits: It comes with a mechanical locking system and allows fine adjustment. You can also fix a dial indicator in any position by mechanically clamping the articulated arm
View full details
  • type Magnetic Stand
  • remarks With Mechanical Locking System
  • acceptable stem sizes Diameter 6mm 8mm 9.53mm 3/8"
  • column length 345mm
  • base magnetic force Approx 600 N

Mitutoyo’s magnetic stands clamp to iron or steel surfaces with a strong force and are indispensable for temporarily mounting a dial test indicator (or dial indicator) onto a machine tool or fixture for general alignment applications. A V-grooved base allows the stand to mount securely on cylindrical as well as flat surfaces. The magnetic clamping effect is conveniently switched on or off by a quarter turn of a lever
