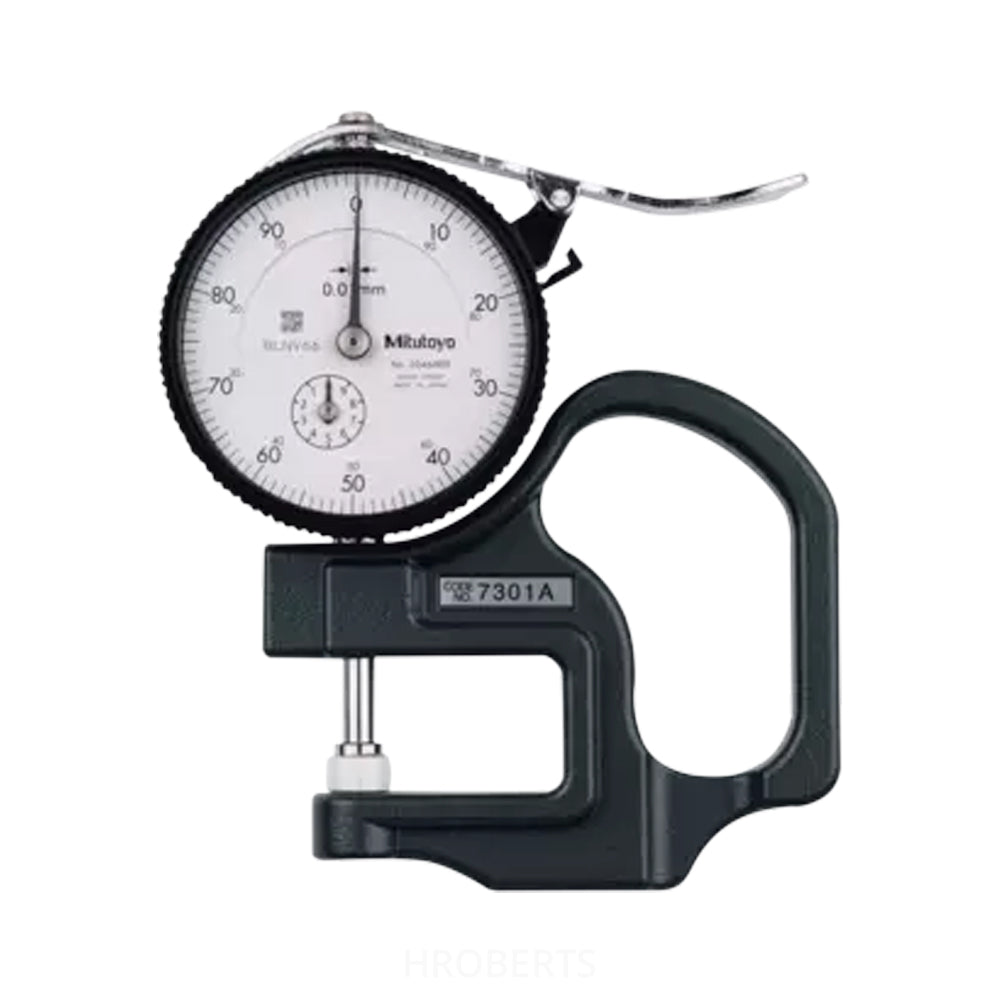

7301A Dial Thickness Gauge, Range 0-10mm, Graduation 0.01mm

SKU:Code: 7301A

Sale Sold out Regular price £83.25
Save: 25% Sold out Sale price £83.25 Regular price £111.00
Excl. VAT
Dial Thickness Gauges are used for measuring the thickness of a very wide range of materials
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Dial Thickness Gauges
  • range 0-10mm
  • display type Non-Digital
  • graduations 0.01mm
  • accuracy ±15 μm
  • bezel dia 57mm
  • measuring force 1.4 N or less
  • measuring units Metric
  • stem dia 8mm8mm
  • throat depth 30mm
  • remarks Standard/ ceramic plunger/anvil
  • contact point 10mm Diameter

Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
