Mitutoyo

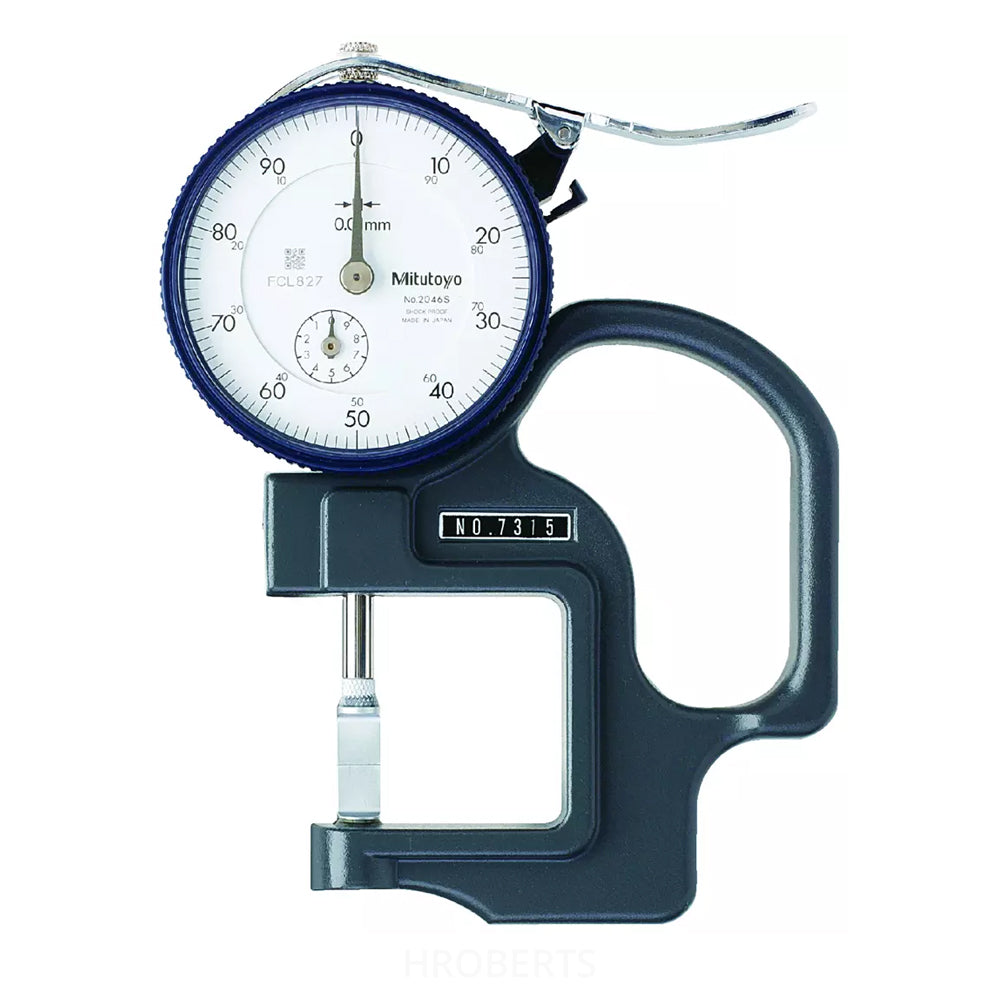

7315A Dial Thickness Gauge, Range 0-10mm, Graduation 0.01mm
SKU:Code: 7315A
Sale
Sold out
Regular price
£117.00
Save: 25%
Sold out
Sale price
£117.00
Regular price
£156.00
Excl. VAT
Groove depth measurement type. Suitable for measuring narrow grooves. Measuring face of the contact point and anvil are blade-shaped (thickness: 1 mm)
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Thickness Gauges
- range 0-10mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±15 μm
- bezel dia 57mm
- measuring force 1.4 N or less
- measuring units Metric
- stem dia 8mm8mm
- throat depth 30mm
- remarks Groove depth
- contact point 1mm Blade
description
description
Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
