Specification
Specification

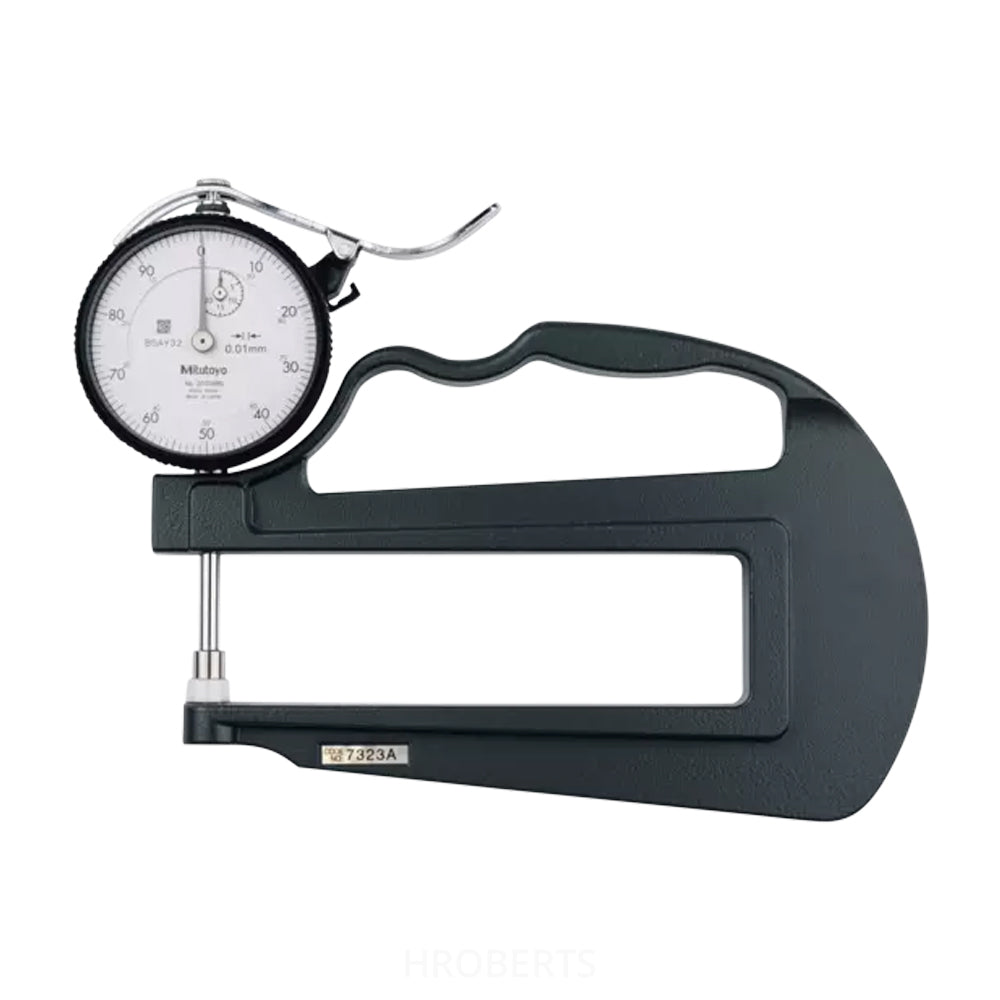

- type Dial Thickness Gauges
- range 0-20mm
- display type Non-Digital
- graduations 0.01mm
- accuracy ±22 μm
- bezel dia 57mm
- measuring force 2.0 N or less
- measuring units Metric
- stem dia 8mm8mm
- throat depth 120mm
- remarks Deep throat/ ceramic plunger/anvil
- contact point 10mm Diameter
description
description
Dial thickness gauges can quickly measure the thickness of thin products. Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
