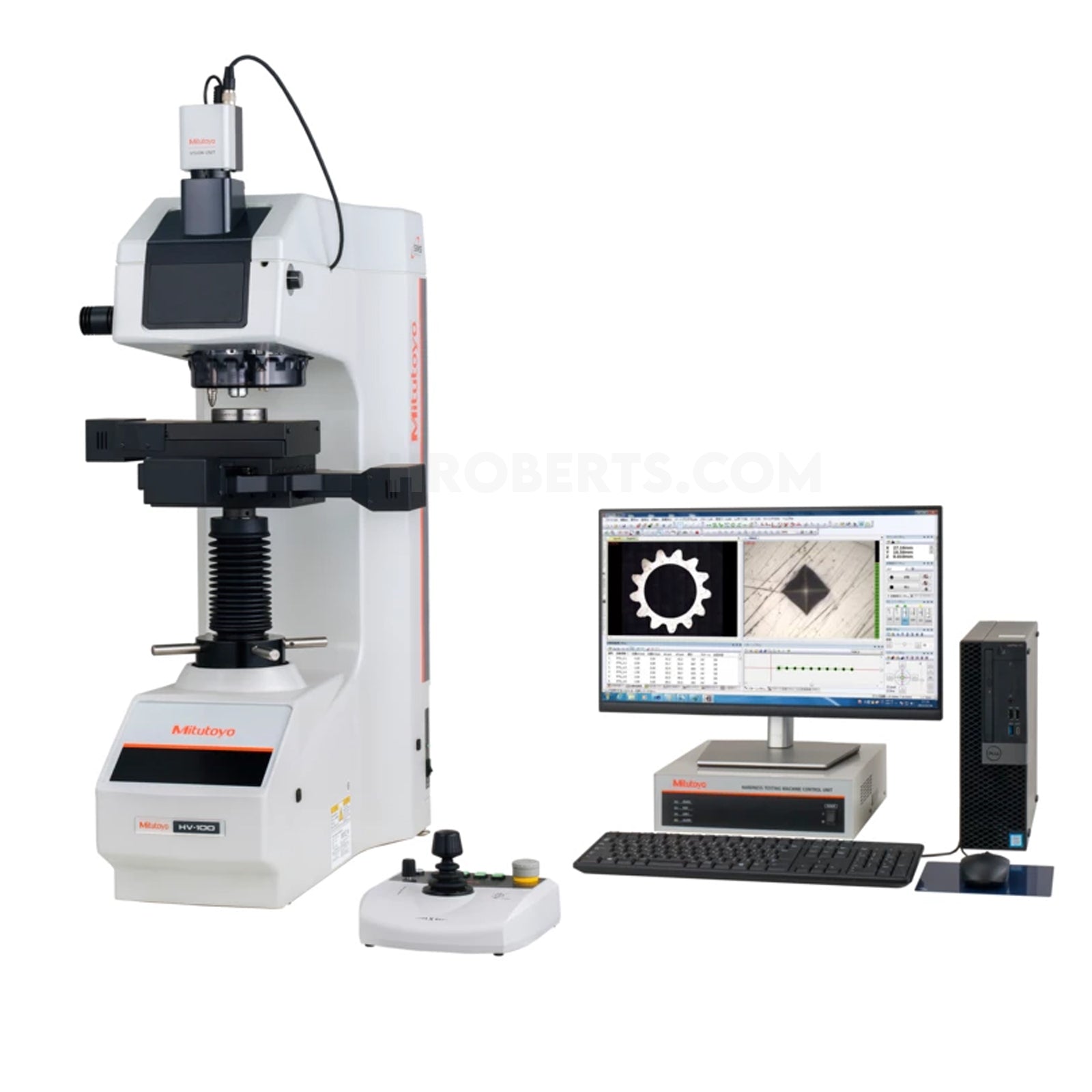

Mitutoyo 810-443-11-DSET HV-110 Fully Automatic Bench Top Vickers hardness testing machine

Code: 810-443-11-DSET

Item priced on application.

Request a Price

Add to Compare

Diamond indenter : included, Reference material : 700 HV10 Ø64mm x 15mm, Flat anvil : 810-039 outside diameter Ø64mm, Water level : 11AAB941, Inspection certificate : included, Power cord : not included

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Vickers hardness testing machine
  • display type Digital
  • brand Mitutoyo
description
Applicable standards:
Applicable standards Vickers :
ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
Applicable standards Knoop :
ISO 4545-2, ASTM E92, ASTM E384, JIS B 7734
Applicable standards Brinell :
EN ISO 6506, ASTM E10, JIS B7724
Applicable standards KC fracture toughness :
based on IF method (JIS R1697)
Applicable test methods:
Applicable Vickers scales :
HV1; HV2; HV3; HV5; HV10; HV20; HV30; HV50
Applicable Knoop scales :
HK1; HK2
Applicable Brinell scales :
HBW 1/30; HBW 1/10; HBW2.5/62.5**; HBW 1/5; HBW 2.5/31.25**; HBW 1/2,5**; HBW 2.5/15.625**; HBW 1/1; HBW 2.5/6.25** additional accessories required
Machine Control:
Control method :
AVPAK software control
Software functions AVPAK :
Turret and stage control, contrast level indicator for easy focus, autofocus (D-Types), automatic Illumination, auto reading function, ISO 18203 conform hardening depth evaluation presets, CHD, NHD, SHD; Jominy Test; guide Function for single test/pattern test/standard test, curved surface compensation, hardness conversion, overview image creation (C- and –D-Types), part programming, incl. edge detection, coordinate alignment, pattern creation and application, report creation, external data output, StatusMonitor compatibility
Language support :
Japanese, English, German, French, Italian, Spanish, Korean, Simplified Chinese, Traditional Chinese, Turkish, Portuguese, Polish, Czech, Hungarian, Dutch, Russian, Thai
Resolution :
0,01 HV units (settable)
Data output:
MeasurLink capability :
yes
Data output :
PDF, Excel
Test force:
Test Force Range :
2.942-294.2N (0,3-30kgf)
Test force generation :
Dead weight system
Test force switching :
AVPAK software
Duration time :
5-999s. 1 s. increments
Indenter approach speed :
selectable 60 μm/s/150µm/s
Optical system:
Optical system :
Infinitely corrected
Standard objective lenses :
MH Plan 2x, 10x and 20x
Light source illumination unit :
White LED
Aperture diaphragm :
variable
Measuring microscope :
optional
Focus method :
automatic
XYZ axis:
XY stage :
810-462-10
Z-axis :
manual elevation unit
Autofocus unit :
810-465
Range XY :
100x100 mm
Range Z-axis :
1.4 mm
Turret:
Turret drive method :
Motor/Manual
Turret control method :
Touch panel
Number of objective lens ports :
3 (3 equipped)
Number of indenter ports :
1 (equipped)
Functional dimensions:
Stage/Anvil adaption :
Ø19 mm
Max. specimen height :
132 mm
Throat depth :
170 mm
Maximum specimen weight :
3 kg
Main unit data:
External dimensions WxDxH :
382x627x874 mm
Mass main unit :
73.9 kg
Power supply :
AC100 -240V Auto-selection
Power consumption W :
89
Operation temperature °C :
5-40
Relative humidity RH :
80% or lower without condensation
Vibration Frequency :
10Hz or lower
Standard accessories:
Diamond indenter :
included
Reference material :
700 HV10 Ø64mm x 15mm
Flat anvil :
810-039 outside diameter Ø64mm
Water level :
11AAB941
Inspection certificate :
included
Power cord :
not included
