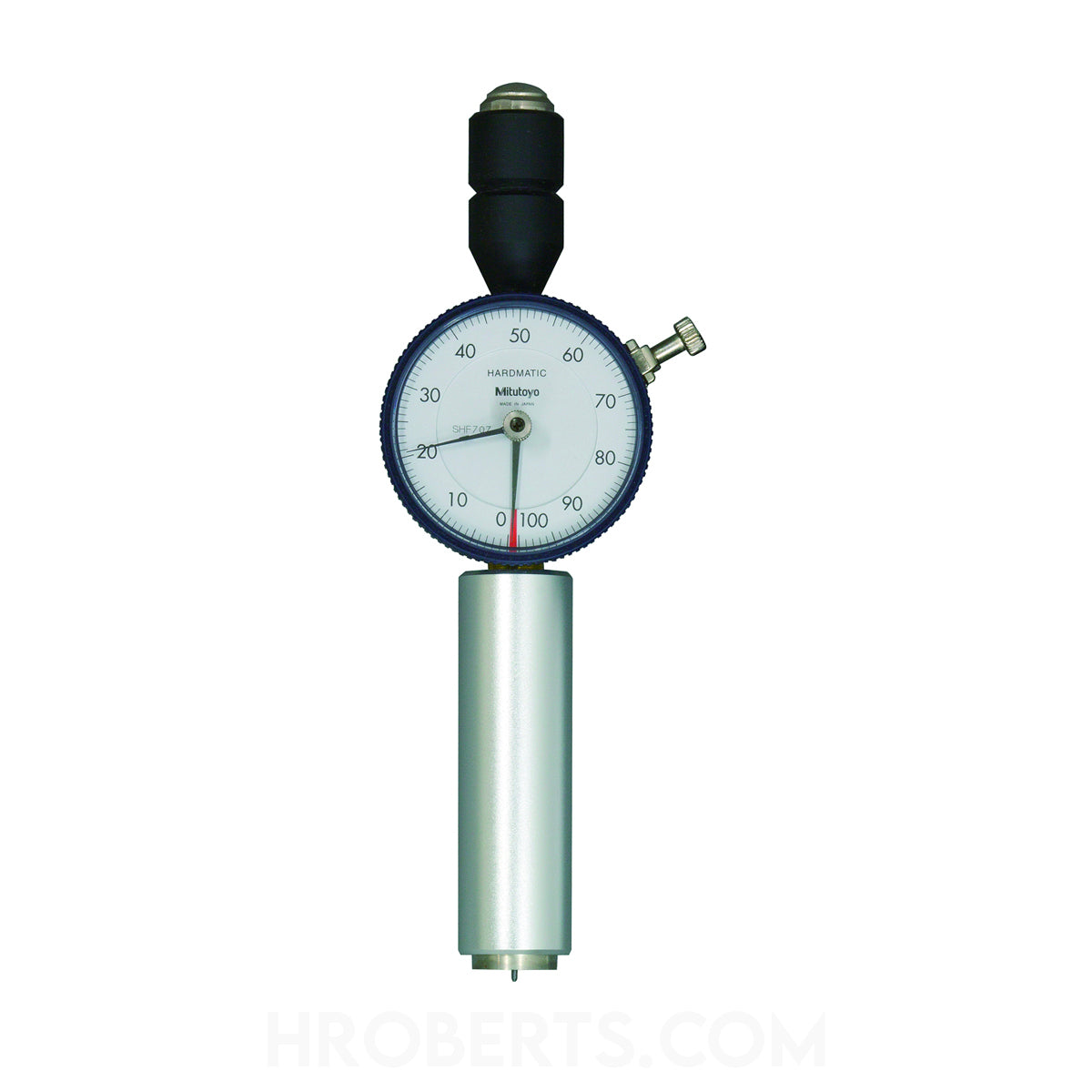

Mitutoyo 811-331-10 Dial Readout Durometer, Model Hardmatic HH-331
SKU:Code: 811-331-10
Sale
Sold out
Regular price
£668.70
Save: 10%
Sold out
Sale price
£668.70
Regular price
£743.00
Excl. VAT
Durometers are essential tools for ensuring that materials meet specific hardness requirements and for quality control in industries where material hardness is a critical factor, such as automotive manufacturing.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Durometer
- range 10-90
- display type Non-Digital
- resolution 1
- scale Shore A
- mass 320 g
- tip angle 35º±0.25º
- style Long-leg
- application Natural rubber soft elastomers etc.
- standards JIS K 7215
- pressure foot size ø18 mm
- spring force 10-90)
- indenter 0.79 mm)
- indenter diameter 1.25 mm
- indenter protrusion 2.5 mm
- dimensions 68 x 35 x 188 mm
- brand Mitutoyo
description
description
Dial Durometers are suitable for testing the hardness of non-metallic materials such as natural rubber, neoprene, polyesters, P.V.C., leather, Thiokol, nitrile rubber, wax, vinyl, cellulose acetates, glass, polystyrene, etc. Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications. Units are available reading both in Shore A and Shore D scales to suit a wide variety of applications. The Dial Durometer is provided with a peak retaining hand for error-free reading.
