Specification
Specification
- type Durometer
- range 10-90
- display type Digital
- resolution 0.5
- scale Shore A
- mass 310 g
- tip angle 35º±0.25º
- style Long-leg
- application Natural rubber soft elastomers etc.
- standards JIS K 7216
- pressure foot size ø18 mm
- spring force 10-90)
- indenter 0.79 mm)
- indenter diameter 1.25 mm
- indenter protrusion 2.5 mm
- dimensions 60 x 29.5 x 193 mm
description
description

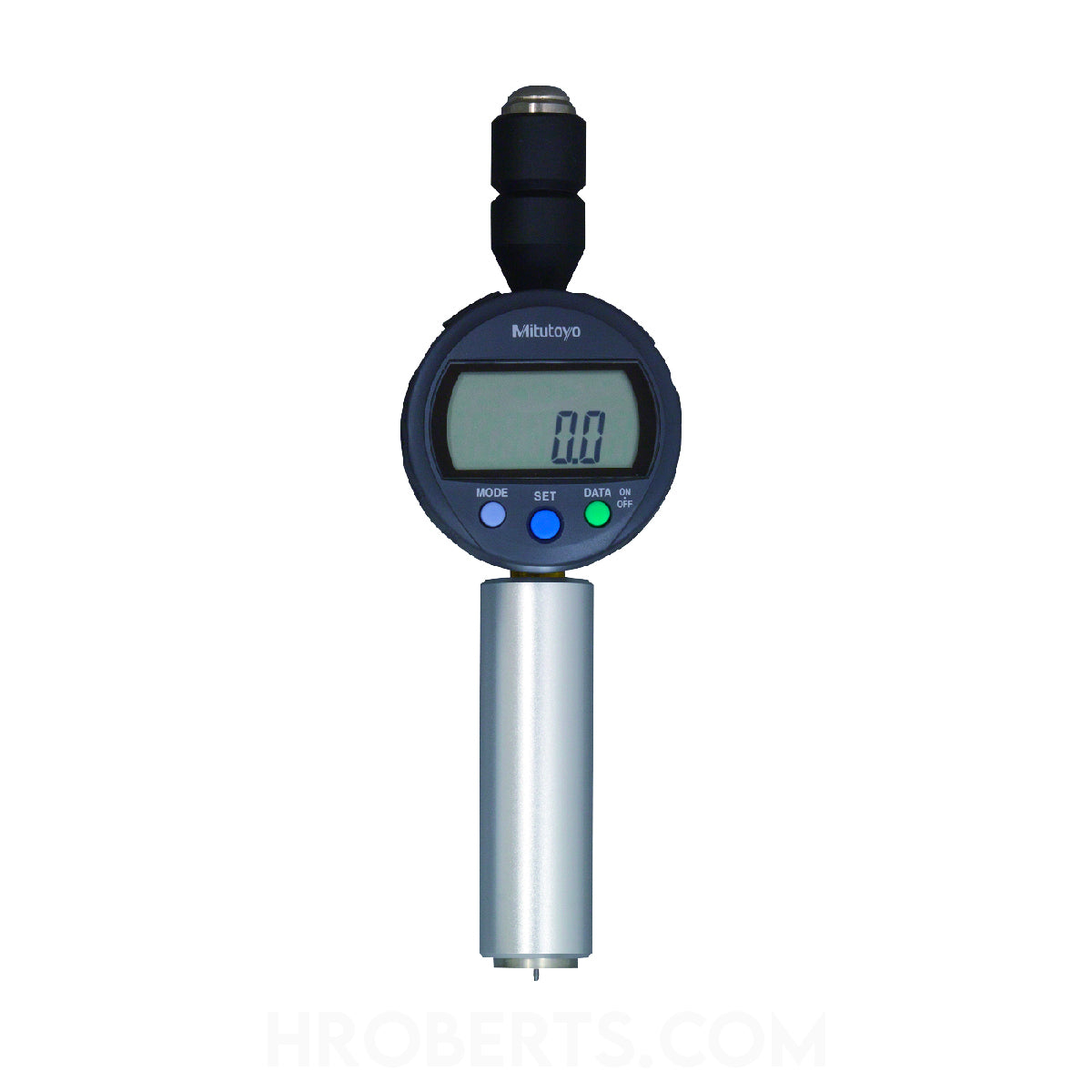

Digimatic Durometers are suitable for testing the hardness of non-metallic materials such as natural rubber, neoprene, polyesters, P.V.C., leather, Thiokol, nitrile rubber, wax, vinyl, cellulose acetates, glass, polystyrene, etc. Units are available reading both in both Shore A and Shore D scales to suit a wide variety of applications. Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications. The Digimatic Durometer is provided with a data hold function for error-free reading.
