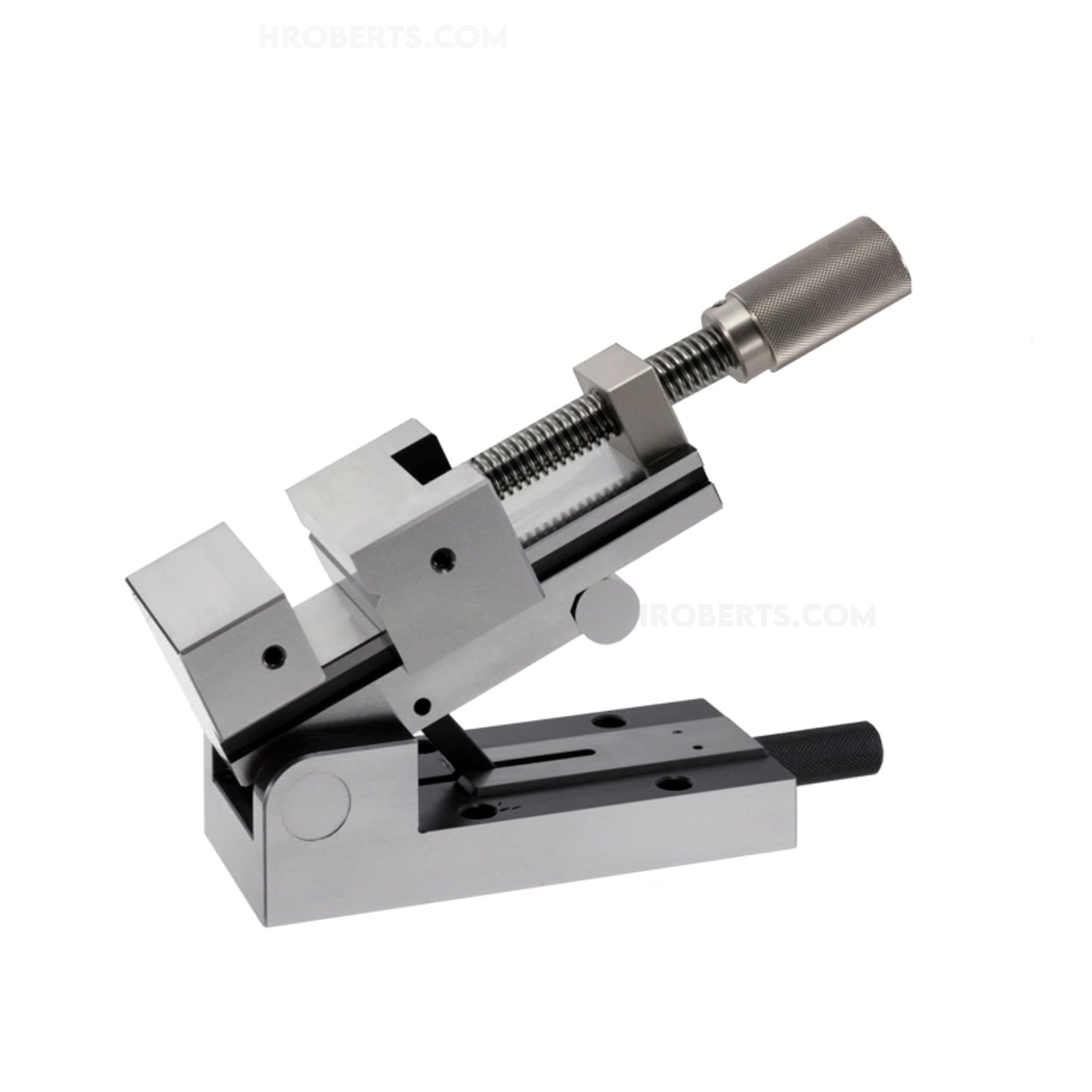

Mitutoyo 930-622 Precision Sine Vice 120mm Clamping Width
SKU:Code: 930-622
Sale
Sold out
Regular price
£3,816.00
Save: 10%
Sold out
Sale price
£3,816.00
Regular price
£4,240.00
Excl. VAT
Sine bar style of precision vice.
Suitable for grinding processing which need angle set-up.
It is made of tool steel, hardened and precision ground.
Accurate angle setting is made by gauge blocks, max. 45°.
930-623 in order to avoid interference to grinding wheel, the clamp handle is placed under work piece.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Questions & Answers loading...
Specification
Specification
- brand Mitutoyo
- size 120mm Clamping Width
description
description
| Parallelism: |
0,002 mm / 100 mm
|
| Squareness: |
0.005 mm / 100 mm
|
| Delivered: |
In a carton box
|
| Setting accuracy at 45°: |
±15"
|
| Mass: |
11 kg
|
