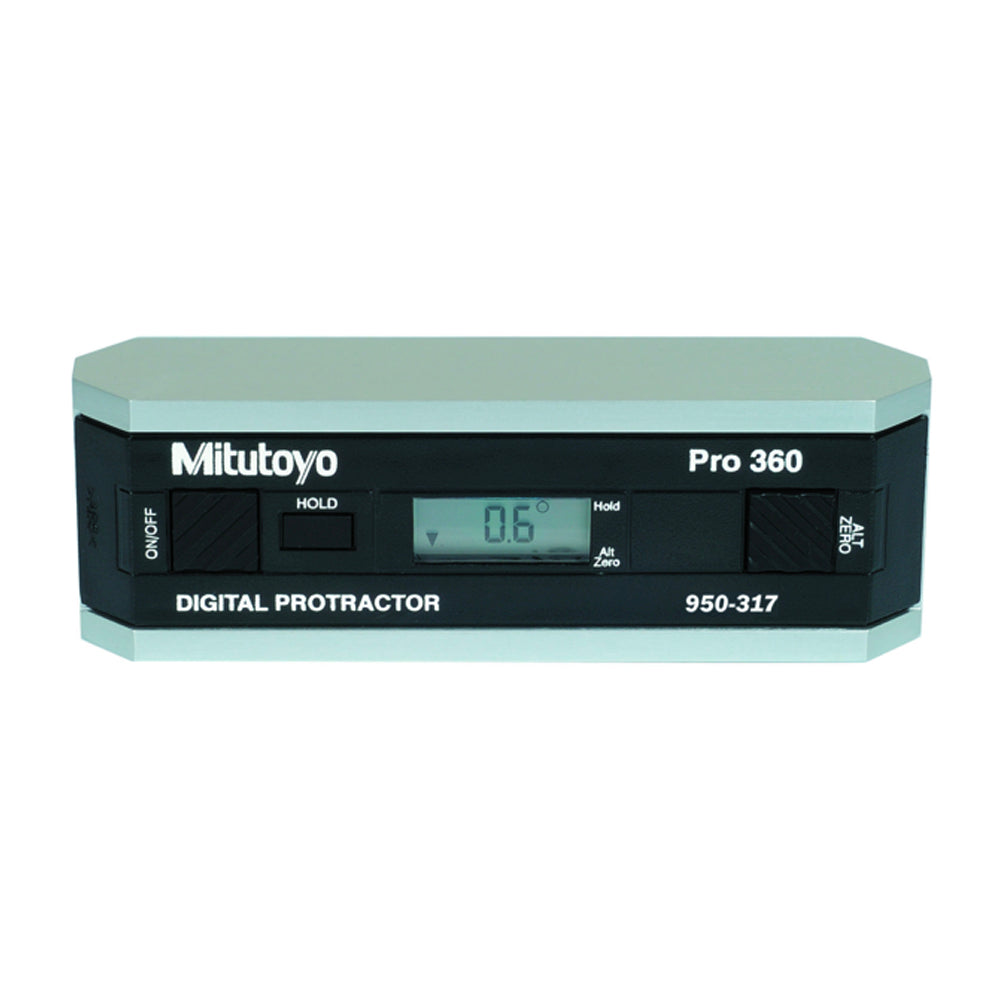

950-317 Digital Protractor 360°

SKU:Code: 950-317

Sale Sold out Regular price £276.75
Save: 25% Sold out Sale price £276.75 Regular price £369.00
Excl. VAT
A digital Mitutoyo protractor/level designed for making angle measurements in the vertical plane. The instrument can be zeroed at any angular position and directly indicates the angle between the stock and that position when in use to a resolution of 0.1 degree. When zeroed at the horizontal, readings are provided in the same manner as a spirit level, but with the advantage of a range extending all the way to the vertical.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • range 360° (4 x 90°)
  • data output No
  • max permissible errors Horizontal - 0.1 Degrees / Vertical - 0.2 Degrees
  • repeatability 0.1 Degrees
  • battery life Approx 500 Hours
  • mass 300g
  • battery 9 V Standard Battery
  • sensitivity Sensitivity 0.1 degrees

Newly developed instrument for measurement of flatness, squareness and angularity.

Precision support surface in aluminum frame for high rigidity and low weight.
