Images are for illustration purposes only - Products may differ.



SKU:Code: 356-407

Item priced on application.

Request a Price

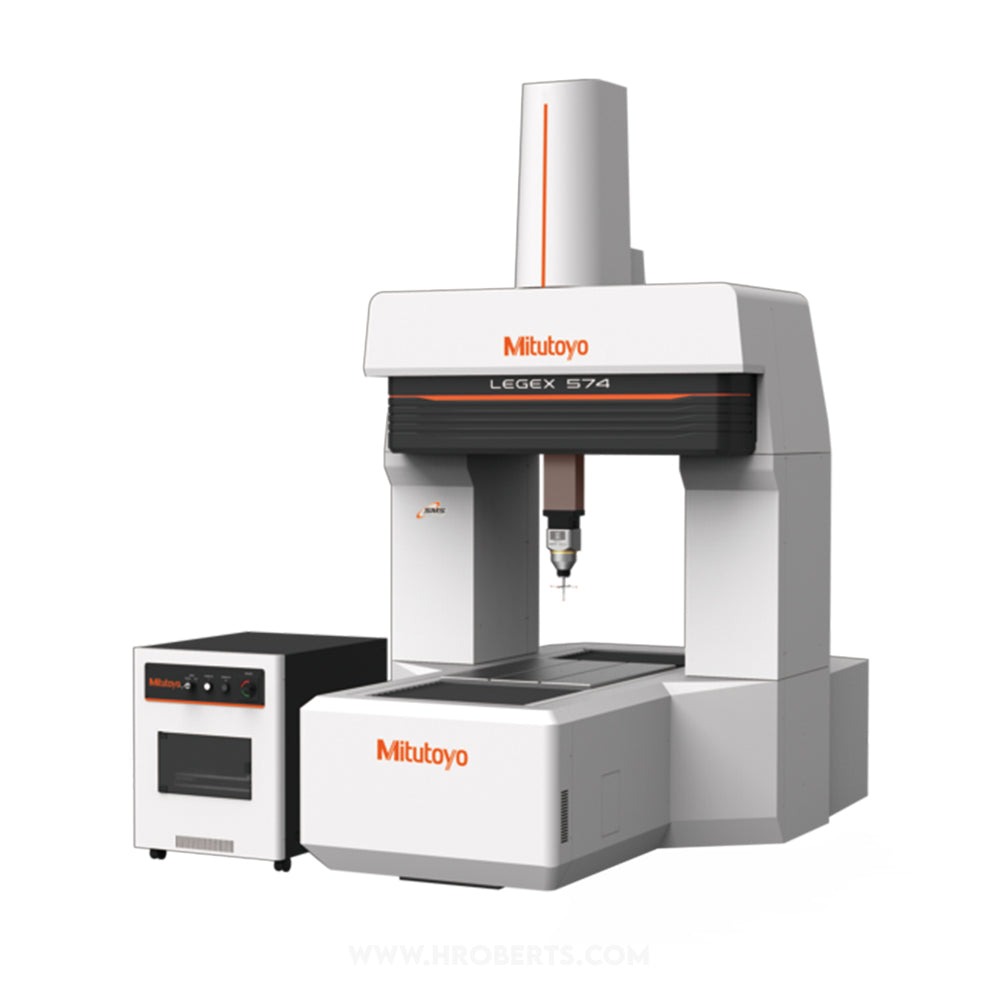

The LEGEX Series is an ultra-high precision CNC coordinate measuring machine. A fixed bridge structure and precision air bearings running on highly rigged guideways, ensure superior motion stability and ultrahigh geometrical accuracy. Drive systems placed in the “Center of gravity” of the sliders, gives best possible dynamic performance. In addition, an active anti-vibration stand has have been utilized to provide ultra-high accuracy. The construction is designed for thermal stability, low expansion crystallized glass scales and temperature compensation, results in guaranteed high accuracy within a temperature range of 18 °C to 22 °C.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • range XYZ Range 500 x 700 x 450mm
  • material Granite
  • mass 3500Kg

Main benefits:

  • Rigorous analysis of all possible error-producing factors, and elimination or minimization of their effects, delivers unsurpassed accuracy of 0,28μm
  • Ultra-high accuracy crystallized-glass scale with the ultra-low expansion coefficient of 0,01x10-6/K is used on each axis
  • The fixed bridge structure and precision air bearings, running on highly rigid guideways, give you superior motion stability and ultra-high geometrical accuracy
  • UC480 controller supporting Multi-sensor and SMS functionality (Smart Measuring System)
  • You can use several different types of optional probe systems, including Mitutoyo’s high precision MPP310Q scanning probe
