Mitutoyo

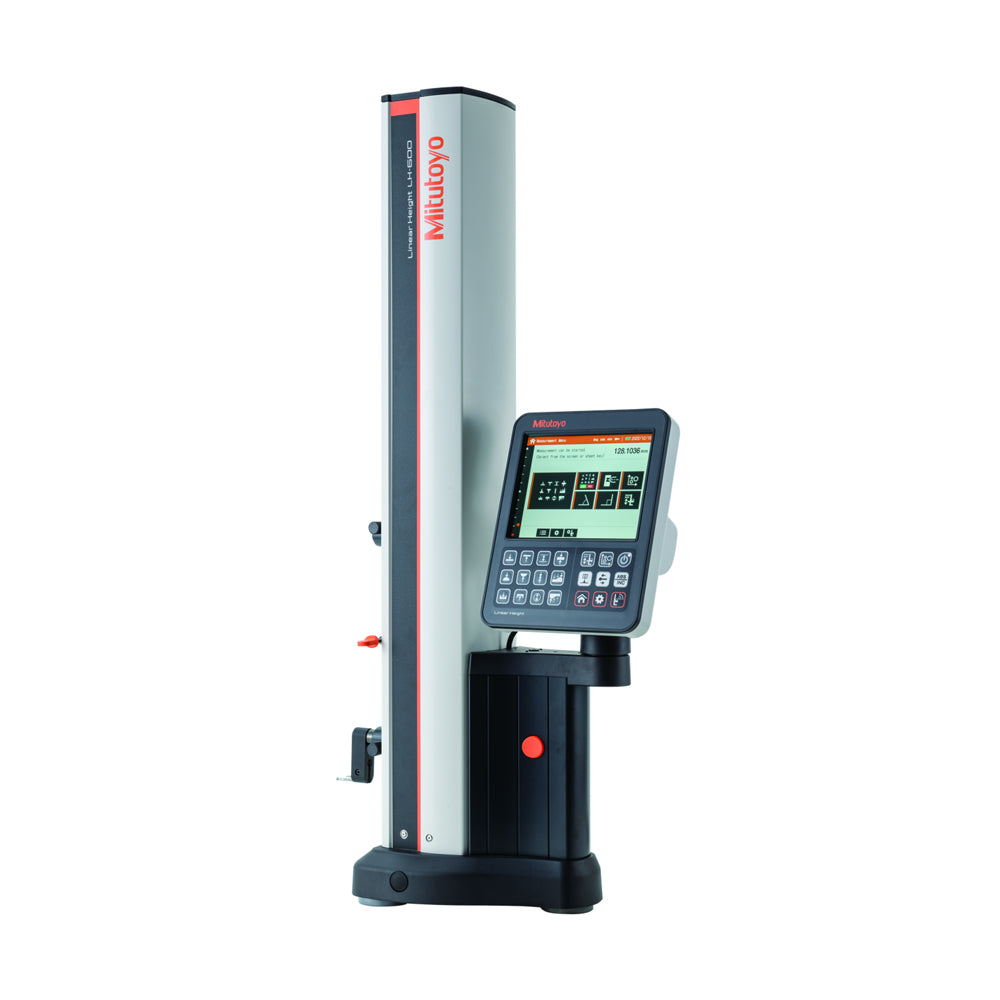

LH-600F - 518-360-13, 2D Height Gauge 0-600mm/0-24", without Grip

Code: 518-360-13

Sale Sold out £6,111.00
Sale Sold out £6,111.00 £6,790.00
Excl. VAT
Suitable for even beginners, navigate easily via keypad and touchscreen operation. Conduct various measurements such as 2D measurement and perpendicularity measurement with just one tool. Optional probes provide versatile measurement capabilities. Enhanced data output functions make it easier to manage your measurement data.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Measuring
  • range 0-600mm / 0-18"
  • resolution 0.0001mm / 0.001mm / 0.01mm/ 0.1 mm / 0.000001" / 0.00001" / 0.0001" / 0.001"
  • power supply 240v
  • battery Yes
  • power supply 240v
  • suspension Yes
  • setting master Yes
description

H Roberts - Mitutoyo LH-600 Brochure 2023

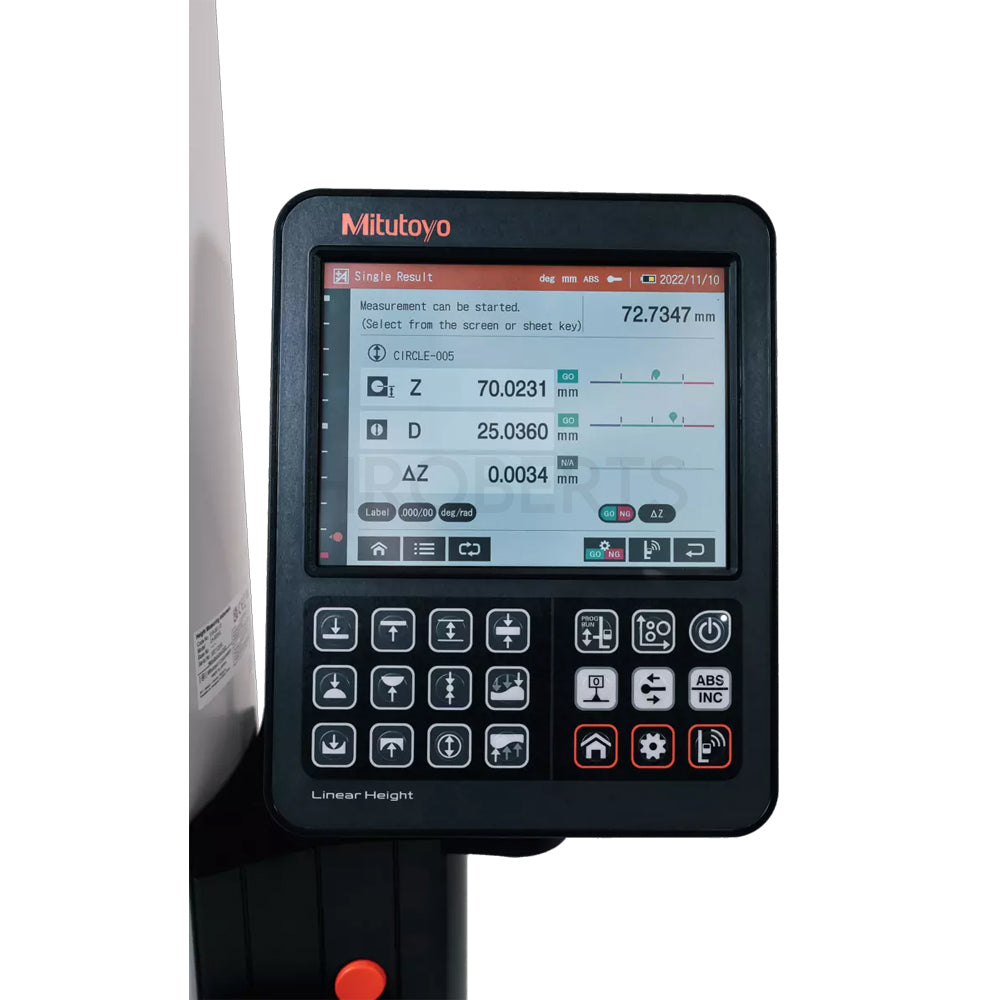

Touch panel with guidance - Measurement guidance is displayed on the large touch panel of the 8,4-inch color LCD, enabling intuitive operation.

Automatic scale check - On start up the user is led through the menu to set the scale origin and run the automated procedure to check the scale for contamination.

Calibration reminder - A notification will be displayed before the calibration due date that the user has set.

Home screen - With the intuitive menu, even beginners can easily access various operations and settings

Guidance and measurement navigation - Available in 21 languages, each measurement step is displayed in a way that is easy to understand for the user.

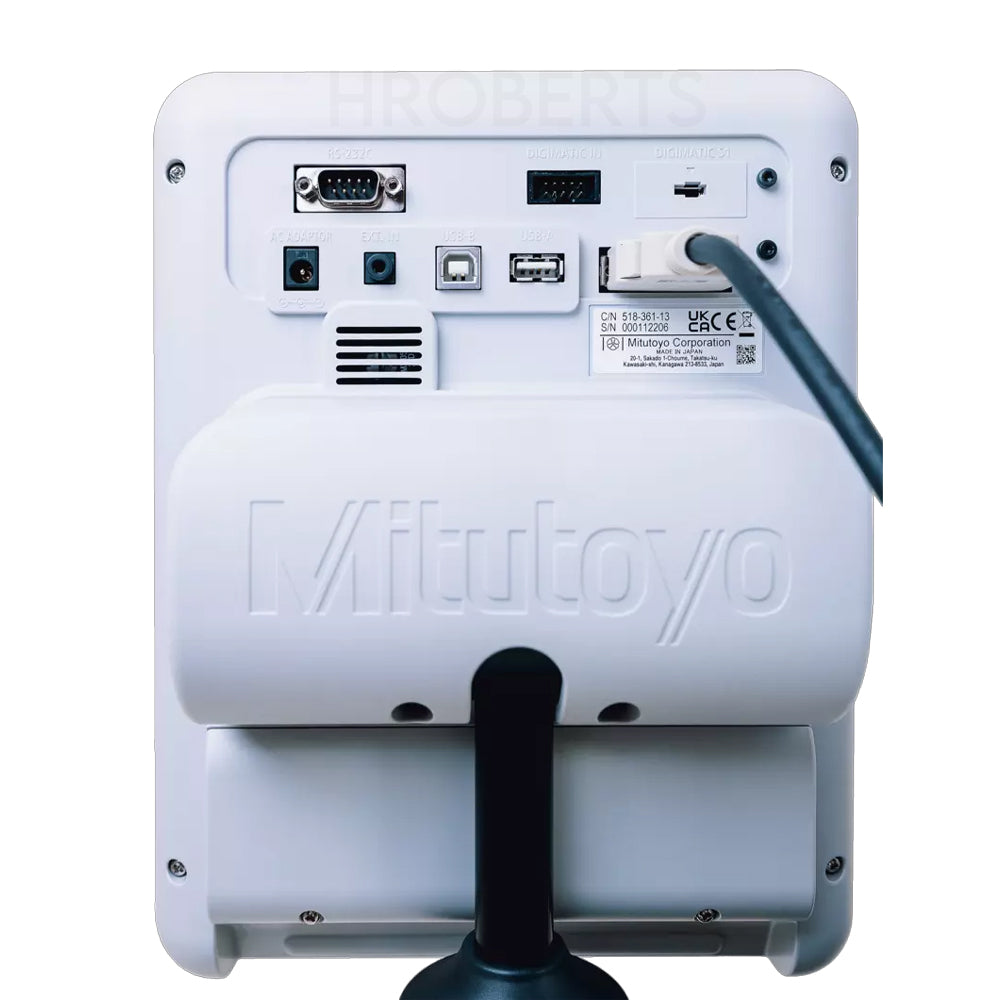

Operation log - Operation log data is retained for up to 2 months, and can be output to a USB memory device.

Repeat measurement function - To enable efficient measurements the user can repeat the last measurement with the optional footswitch or on-screen button.

2D measurement ''Pre-placement" - This function allows the user to register the hole position of the workpiece before measurement.

Perpendicular/ straightness measurement "Graph Creation" - You can check the measurement results of perpendicularity and straightness in real-time during measurement. After the measurement, you can easily see the trends of the measurement results in a graph.

Three types of optional probes: 1. The holder and the stylus can be freely combined according to the purpose of measurement, and the measurement area can be changed. 2. This type is used for single-use measurements such as measuring a tapered hole or a knife edge. 3. This type is used to measure straightness and perpendicularity

 *power cable (02ZAA021) needed, please order separately
