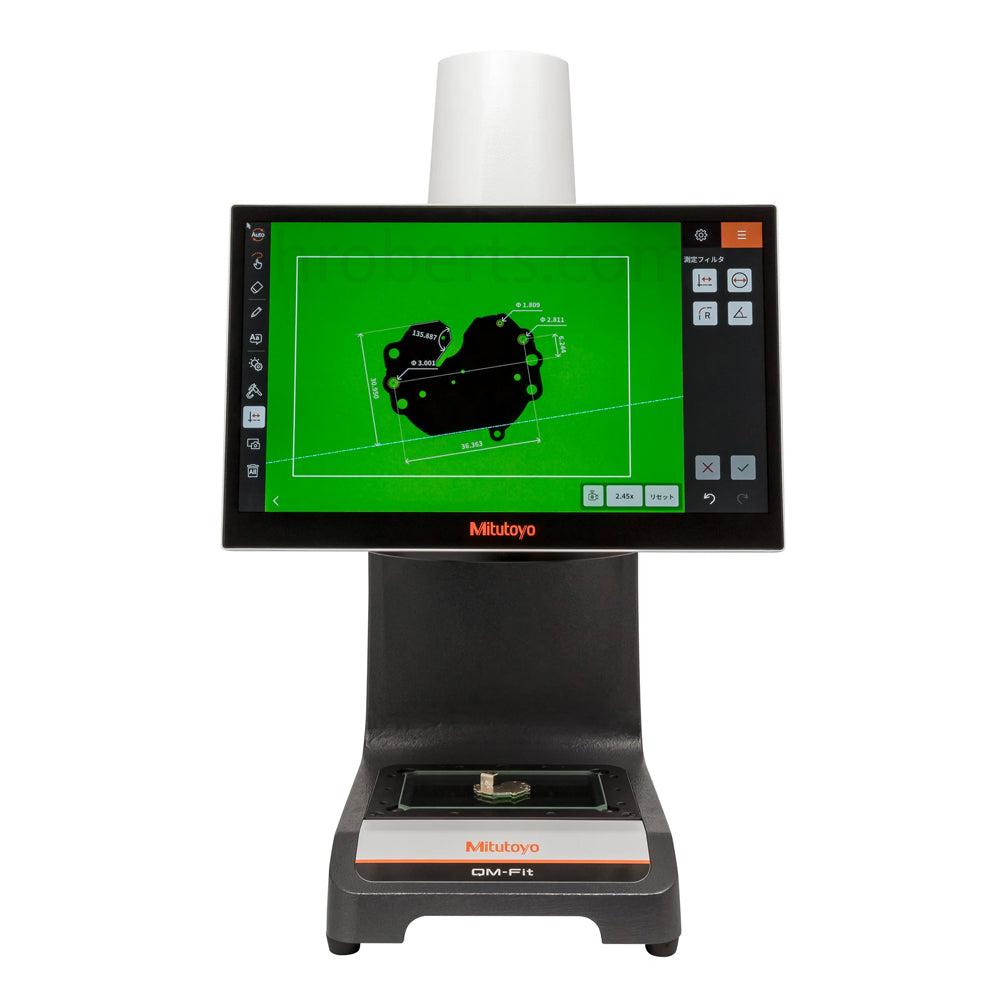

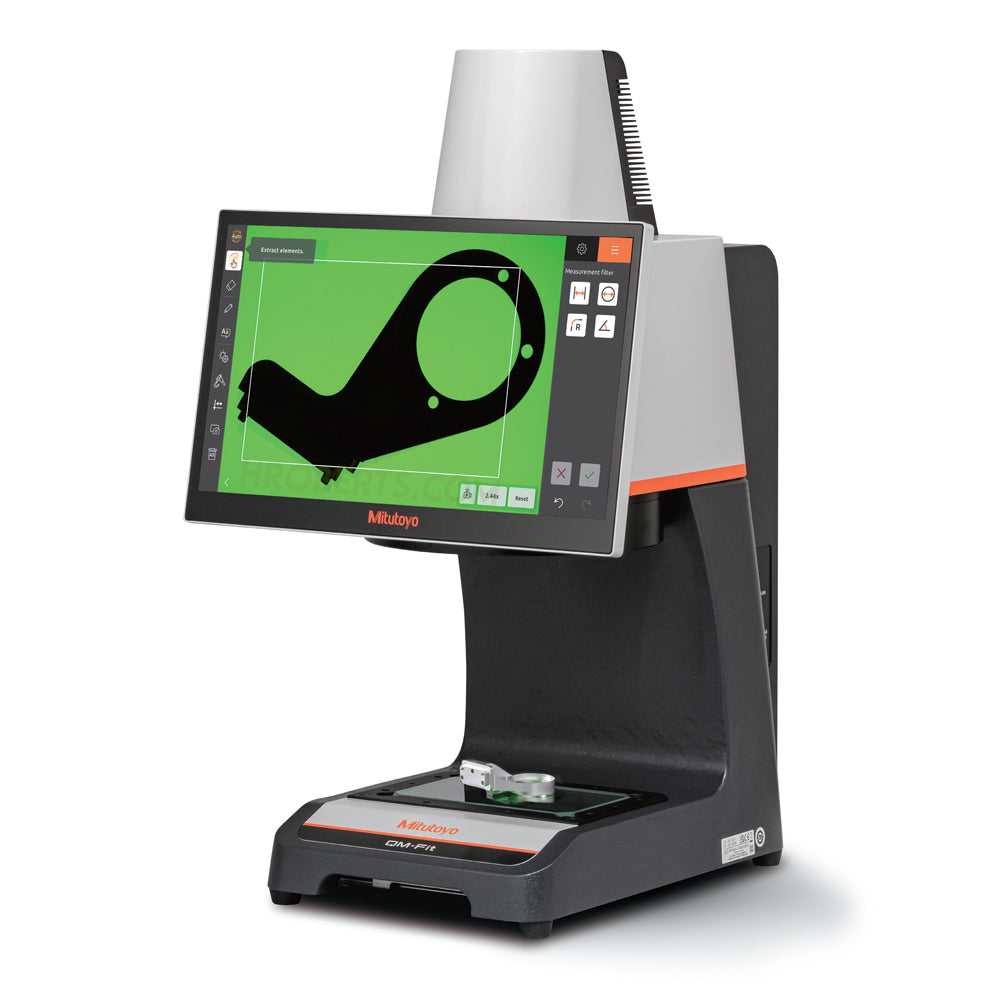

Mitutoyo 359-752-11 QM-Fit Compact Vision Measuring Machine - SMART VISION SYSTEM QM-Fit
SKU:Code: 359-752-11
Item priced on application.
Request a PriceThe UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- range Measuring Range 115 × 75 mm
- display type 15.6-inch touch panel monitor
- resolution 0.0001 / 0.001 / 0.01 / 0.1 / 1 mm (Selectable)
- accuracy ±10 μm *1
- measuring units Metric / Imperial
- remarks Max Load 10 kg
- repeatability 2σ ≤ 4 μm
- mass 25kg
- lens 20-megapixel color CMOS camera
- magnification 1 - 100x
- brand Mitutoyo
- lens 20-megapixel color CMOS camera
- transmission light Green LED

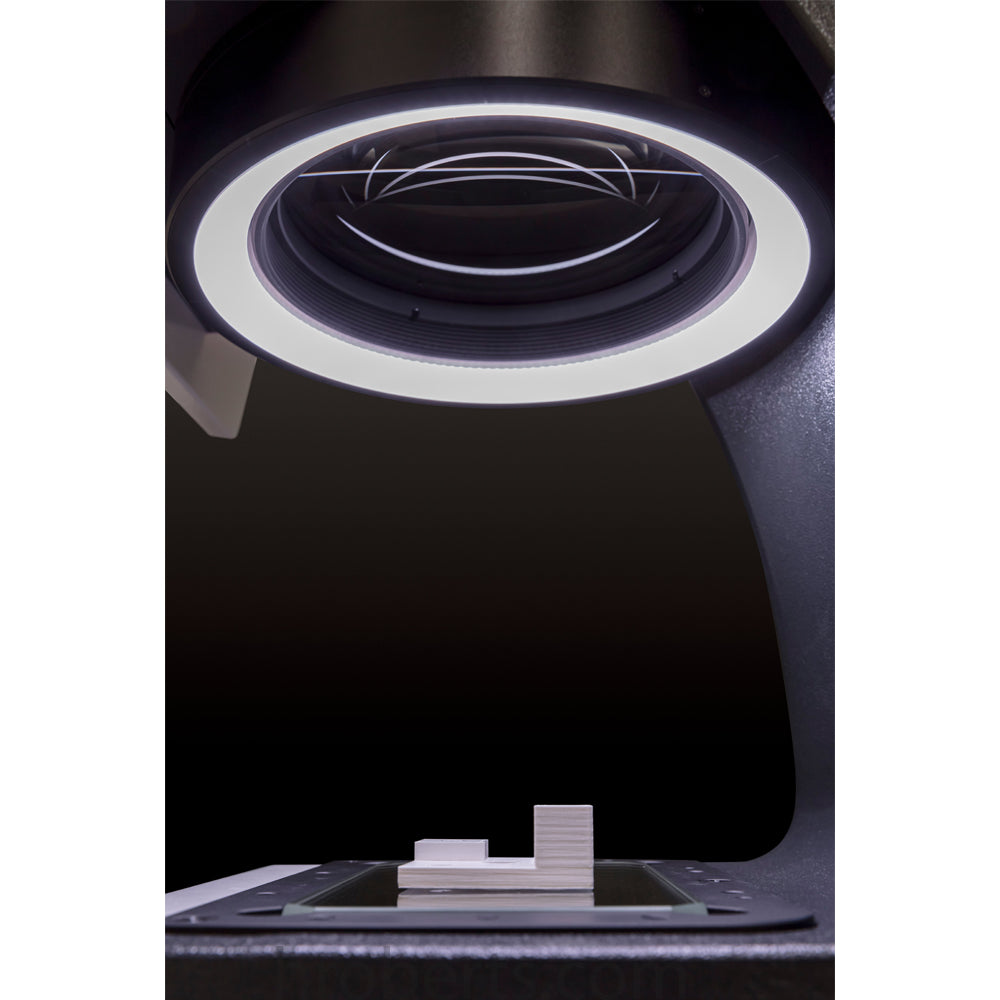

- surface light 8-segment white LED
- max height 36 mm
- stage dimensions 154 × 96 mm
The Mitutoyo QM-Fit is a compact, fully automated digital smart vision system designed to deliver fast, accurate results without the need for setup or specialized training. Simply place your part on the stage, and QM-Fit instantly captures dimensions with precision.
Faster, smaller, smarter—QM-Fit streamlines non-contact dimensional inspection with smart recognition software, a high-resolution 20 megapixel camera, and intuitive touch-screen guidance that anyone can operate.
Whether you’re checking thin parts, small components, or multiple features at once, the QM-Fit ensures repeatable accuracy in seconds from a system that fits on any desktop.
Automatic element detection: QM-Fit detects multiple features at once, automatically recognizing circles, lines, and more with a single tap—no need to specify elements one by one.
Caliper Snap: Virtual rulers that quickly snap to edges or circles when placed nearby, avoiding the hassle of aligning crosshairs and expediting basic checks.
Procedure Recording: Just place the workpiece for automatic inspection. Even if parts are randomly placed, QM-Fit identifies them and begins measurement immediately. You record once; it repeats.
Long focal-depth lens: Always in focus, even for tall or uneven surfaces (up to 36 mm in height), eliminating the need to refocus for different part heights.
The bright, high-contrast touchscreen display ensures clear visibility across varied lighting conditions and supports touch, swipe, and flick gestures—even with gloves on. It can be disabled when needed so you can operate via physical buttons. A new “Home” key gives one-touch access to essential functions and frequently used calibration and measurement settings.
What it does: Automates complex manual inspection tasks with instant multi-feature measurement and shape recognition without programming. Delivers high-resolution views up to 100× magnification and generates clear pass/fail judgments to speed quality decisions.
Compact, desktop-friendly design: Small enough to fit on any desk yet powerful, with a built-in PC and monitor—no external hardware needed.
Stay compliant with confidence: Mitutoyo’s precision measurement solutions offer high quality, reliability, and traceability, and the QM-Fit delivers all this in a compact, fully automated package.
